Sab nraud rotor vs. sab hauv rotor: cov lus piav ntxaws ntxaws ntawm cov qauv muaj zog



Brhawless dc motors (BLDC) tau siv dav hauv ntau qhov kev lag luam vim lawv qhov kev ua tau zoo, kev saib xyuas me me thiab kev saib xyuas ntev thiab ntev, los ntawm kev lag luam Automation thiab ntse tsim rau cov neeg siv hluav taws xob, hluav taws xob tsheb thiab cov tsav tsheb hluav taws xob.



Txawm li cas los xij, nyob rau hauv xws li ntau ntau hom kev thov sau npe tsis muaj peev xwm ua tau raws li txhua qhov kev ua tau zoo. Txhawm rau kom zoo dua rau cov kev siv sib txawv, txhuam cov motors tau tsim ob cov qauv cov qauv: sab hauv rotor thiab sab nraud rotor.



Muaj qhov tseem ceeb sib txawv ntawm ob cov qauv no nyob rau hauv cov nqe lus ntawm kev tsim kho, kev ua kom muaj zog thiab daim ntawv qhia kev siv. Nkag siab txog lawv cov ntsiab cai ua haujlwm thiab kev zoo thiab kev pab yuav pab txiav txim siab tsim nyog rau hauv project tsim lossis cov khoom xaiv.



Hauv kev tsim qauv ntawm txhuam hniav DC (BRDC), "rotor" yog hais tias "rotor" yog hais txog qhov chaw ruaj khov muaj winding cov coils. Raws li kev sib raug zoo ntawm ob qho no, txhuam cov motors tuaj yeem muab faib ua cov qauv rotor thiab sab nraud rotor.

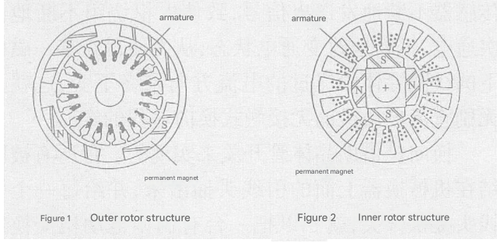

Txhawm rau kom nkag siab zoo dua ob tus qauv tsim no, peb xub qhia lawv cov qauv ua haujlwm thiab cov neeg kho kom haum feem.

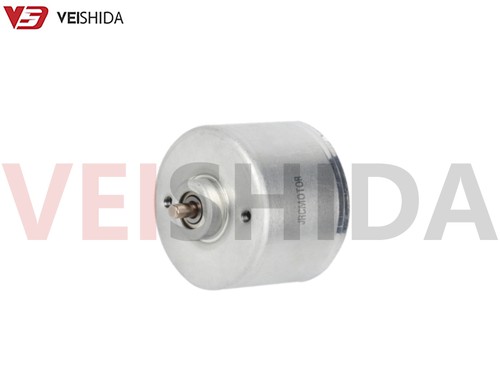

2.1 sab hauv rotor bldc lub cev muaj zog

Hauv ib lub rotor sab hauv lub cev muaj zog, lub rotor nyob rau hauv nruab nrab ntawm lub cev muaj zog, puag ncig los ntawm stator windings. Thaum cov tam sim no hla dhau ntawm Stator Coils, nws tsim lub teb sib nqus uas tsav lub rotor sab hauv kom tig.



Nta:

· Me rotor mass, tsawg inertia thiab cov lus teb ceev ceev

· Zoo dua rau cov chaw uas xav tau kev kub ceev thiab tswj kom meej

· Zoo cua sov dissipation kev ua tau zoo, vim tias tus stator yog ze rau lub tsev tsim lub tsev, uas tuaj yeem ua tau yooj yim dua

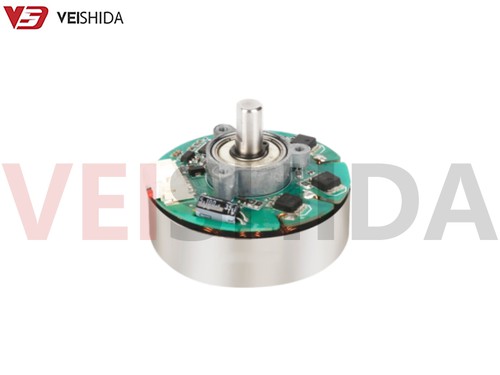

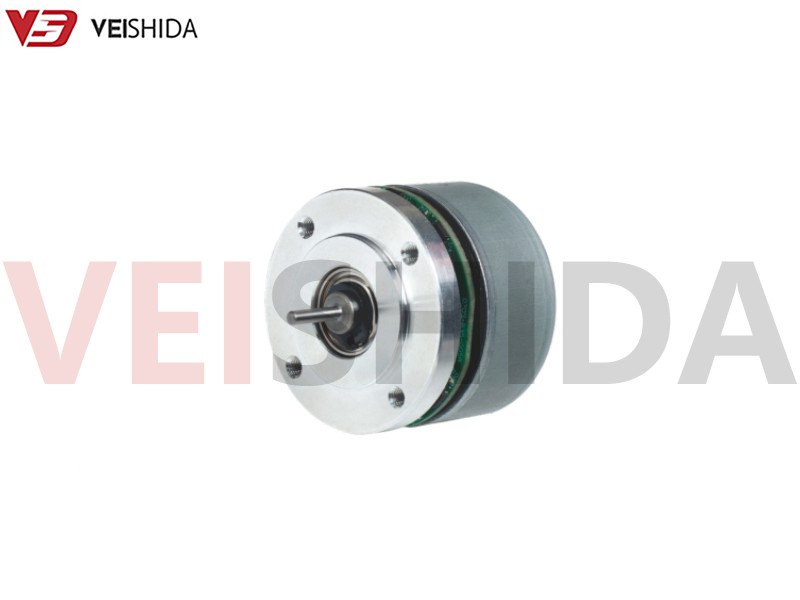

2.2 ORTER Rotor Bldc Tsav

Ib lub rotor rotor lub cev muaj zog: tus stator yog tsau sab hauv, thiab lub rotor muaj cov hlau nplaum hauv ib puag ncig lub stator zoo li kev sib tw sib hlub.



Nta:

· Lub teb loj loj thiab lub sijhawm siab ntawm inertia

· Tsim kom haum rau kev nrawm nrawm, siab cov kev thov siab

· Koj lub hom phiaj nyob sab hauv, cov cua sov dissipation kev ua tau zoo me ntsis, thiab kev ua kom zoo dua yog xav tau los pab tshav kub dissipation



Thaum xaiv lub cev tsis muaj lub cev muaj zog, nws yog ib qho tseem ceeb kom nkag siab txog kev ua tau zoo ntawm cov qauv sib txawv. Seem no yuav muab piv cov kev ua tau zoo ntawm sab nraud ntawm sab nraud ntawm peb qhov tseem ceeb ntawm peb qhov tseem ceeb ntawm peb qhov tseem ceeb: Ruaj Ntseg, thiab kub dissipation.



Txhawm rau kom nws nkag siab yooj yim, peb tseem yuav muab cov lus qhia kev nyiam siv tom qab txhua yam.

1. Txiaj Ntshab (Hnyav Khiav)

Sab Hauv Rotor Txhuam Lub Cev Muaj Zog

· Rotor me rotor mass thiab qis rotoria

· Heev tus phooj ywg sai sai thiab nres thiab tswj hwm

· Commonly used in control systems that require high response, such as industrial robots, servo drives, etc.



Sab nraud rotor rotor brownless tsav

· Loj rotor loj thiab siab tig inertia

· Kev ua haujlwm smloudy thiab tsawg dua kev co

· Tsim kom haum rau kev ua haujlwm qis qis dua, xws li kiv cua, dav hlau, cua txias tshuab, thiab lwm yam.



2 Torque Tso Tawm

Sab nraud rotor rotor brownless tsav

· Vim lub thawv hlau nplaum tas mus li nyob rau ntawm kev sib hloov kev sib hloov hluav taws xob, lub zog tsim tau ntau dua

TSHWJ XEEB TSIM NYOG RAU COV NTAUB NTAWV Xav tau cov khoom siv high, hnyav thauj ntawm cov tsheb kauj vab qis, xws li hluav taws xob tsheb kauj vab, cov cuab yeej hluav taws xob, thiab lwm yam.



Sab Hauv Rotor Txhuam Lub Cev Muaj Zog

· BORTE, tab sis haum rau kev lag luam siab

· Yooj yim lawm rau lub teeb-thauj, cov tshuab ceev ceev

3 Kev Tswj Cov Kev Tswj Hluav Taws Xob

Sab Hauv Rotor Txhuam Lub Cev Muaj Zog

- · - Lub pob zeb winding nyob ze rau lub tsev muaj lub tsev muaj zog, yog li ua kom sov tuaj yeem ua tau yooj yim thiab tso tawm

- · - ntxiv haum rau kev ua haujlwm ntev-zog



Sab nraud rotor rotor brownless tsav

- · - Tus Stator nyob sab hauv, yog li kub tsis tuaj yeem ua rau ncaj qha

- - Cov qauv cua sov dissipation xav tau kev ua kom zoo dua, xws li ntxiv tus kiv cua lossis siv cov khoom siv kub ua kom zoo



Kev Ua Tau Zoo Tshaj Ntsiab Lus:

Performance	Sab Hauv Rotor Txhuam Lub Cev Muaj Zog	Sab nraud rotor rotor brownless tsav
Kev ua haujlwm ruaj khov	⭐⭐⭐	⭐⭐⭐⭐
Lus teb ceev	⭐⭐⭐⭐	⭐⭐
Pib lub zog	⭐⭐	⭐⭐⭐⭐
Thaum tshav kub disspation efficiency	⭐⭐⭐⭐	⭐⭐





Tom qab nkag siab txog cov qauv thiab kev ua tau zoo ntawm cov neeg xaiv digurless yog: cov xwm txheej ua haujlwm txawv yuav tsum muaj cov qauv tsim kev sib txawv.

Cov hauv qab no yog kev sib piv ntawm cov ntawv thov ntawm sab nraud rotor thiab sab hauv rotor motor nyob rau hauv cov kev lag luam ib txwm muaj, raws li cov qauv kev pom zoo.

Cov Kev Siv thiab Cov Txheej Txheem Xaiv:

Daim Ntawv Thov Kev Thov	Cov qauv pom zoo pom zoo	Qho tseem ceeb
Drones, Qauv Dav Hlau	Sab nraud rotor	HIGHTE pib lub zog, kev ua haujlwm ruaj khov ntawm qhov nrawm nrawm, haum rau cov kiv cua thrust tswj
Muaj Boilots	Hauv rotor	Cov lus teb ceev, me inertia, haum rau meej tswj thiab nrawm pib thiab nres
Cov Tsheb Hluav Taws Xob, Tsheb Hluav Taws Xob	Sab nraud rotor	Thaum loj torque thiab cov qauv kev cog lus compact, hub hom sab nraud rotor lub tshuab raj siv feem ntau siv.
Cov cuab yeej CNC tshuab, Servo nruab	Hauv rotor	Siab dua thiab tswj qhov raug, txhawb nqa-lub voj tswj lub tshuab
Ntxuam, cua txias zog	Sab nraud rotor	Tsawg ceev thiab kev ua haujlwm ruaj khov, kev co me me, haum rau kev ua haujlwm tas mus li
Cov Khoom Siv Kho Mob (xws li txhaj koob txhaj tshuaj, tej teeb meem (infusion twj)	Hauv rotor	Kev tswj hwm siab yog qhov tseeb thiab tsis muaj suab nrov
Cov Cuab Yeej Hluav Taws Xob (Cov Ntsia Hlau, Cov Mowers Lawers)	Sab nraud rotor	Kev Pib Loj Torque, Haum rau qee lub sijhawm nrog cov load pheej thauj khoom hloov pauv



Scenario Kev Ntsuam Xyuas Cov Ntsiab Lus:

Yog tias cov khoom siv yuav tsum tau teb nrawm, thiab ua haujlwm ntev, xws li cov neeg hlau thiab servo systems → nws raug pom zoo kom xaiv lub rotor rotor.

· Yog tias cov khoom siv xav tau cov zis pib qis, thiab cov tsheb qauv hluav taws xob, thiab drones → nws pom zoo kom siv sab nraud rotor lub cev muaj zog.

· Yuav tsum muaj kev sib xyaw ua ke (xws li cov khoom siv kho mob) tuaj yeem ntsuas kev nkag siab zoo raws li kev tswj hwm lub tswv yim thiab txheej txheem txheej txheem.



Seb koj xav tau lub siab-teb sab hauv lub rotor lub cev muaj zog lossis lub siab-torque sab nraud lub tshuab muaj lub cev muaj zog, VSD tuaj yeem muab kev daws teeb meem zoo rau koj.Raws li cov kws tshaj lij tshuaj txhuam DC lub chaw tsim khoom lag luam, peb tsis tsuas yog muab cov khoom txheem qauv, tab sis kuj tseem txhawb kev sib sib zog nqus customization kom tau raws li cov kev thov ua kom tiav.



Nov yog cov laj thawj tseem ceeb vim li cas peb pab peb cov neeg siv khoom:

1. Ua kom tiav cov khoom lag luam: Pab them tag nrho ntawm sab hauv thiab sab nraud rotors

Muab cov roj teeb uas tsis muaj qhov ntau thiab tsawg, vololages thiab cov hwj huam

Txhawb kev tsim qauv ntawm sab nraud rotor qauv thiab kuj txhawb nqa qib high-ceev sab hauv rother cov khoom

Yeem muaj cov sensors, encoders, gearboxes thiab lwm yam kev sib xyaw ua ke rau kev sib xyaw ua ke yooj yim



2. Sib sib zog nqus cov peev txheej kom luv luv kev txhim kho kev txhim kho

Txhawb cov neeg siv khoom lossis daim ntawv thov tom qab kev thov lub cev muaj zog, customize lub cev muaj zog loj, xev cov qauv, interface qauv

Muab cov duab 3d thiab cov ntaub ntawv simulation kom ceev r & d

Los ntawm cov qauv kev txhim kho rau batch xa khoom, cov txheej txheem ua haujlwm puv ntoob thiab tswj hwm



3. Cov txiaj ntsig zoo thiab ntawv pov thawj

Lub Hoobkas tau dhau los ISO 9001 thiab ITF 16949 Cov Qauv Kev Tswj Xyuas Zoo

Cov khoom lag luam muaj zog ua raws li cov qauv thoob ntiaj teb xws li CE thiab RoHS

Muab cov ntawv qhia kev soj ntsuam thiab kev paub tseeb tias kev paub tseeb kom paub meej tias txhua lub cev muaj zog thiab ua tiav



Yog tias koj tab tom nrhiav rau lub cev muaj zog Txais tos tiv tauj peb rau cov qauv, cov ntaub ntawv lossis kev txhawb nqa kev txhim kho.



Thaum kawg: Xaiv cov qauv cai kom txhim kho kev ua tau zoo

Tus qauv ntawm lub cev muaj zog tsis yog ib feem ntawm tus tsim qauv tsim, nws cuam tshuam ncaj qha rau cov khoom ua haujlwm ntawm tag nrho cov khoom siv. Xaiv lub rotor sab nraud lossis sab hauv lub rotor tsis yog qhov sib piv yooj yim, tab sis kev txiav txim siab ua haujlwm raws "Daim Ntawv Thov Lub Hom Phiaj".

Yog koj tes num yuav tsum muaj kev kub ceev, teb sai, thiab muaj kev tswj hwm qhov tseeb - ib lub cev muaj zog sab hauv yuav yog qhov tsim nyog dua.

Yog tias koj txhawj xeeb txog kev ruaj khov ntau, siab cov qauv tsim tawm thiab cov qauv hluav taws xob, lub cev muaj zog sab nraud.



Tom qab nkag siab cov ntsiab cai yooj yim, kev ua tau zoo ntawm cov qauv ob lub cev muaj zog no thiab tsim kom muaj kev ntseeg siab ntau dua thiab tsim kom muaj kev ntseeg siab ntau dua thiab tsim cov txheej txheem txhim khu kev qha dua thiab txhim kho.
