24v Carbon Txhuam DC Tsav
24v carbon txhuam dc lub cev muaj zog yog siv dav hauv kev kho mob zoo nkauj, kev saib xyuas kev noj qab haus huv niam thiab menyuam, tsev ntse, tsheb, chaw ua haujlwm, qauv dav hlau thiab lwm yam. Peb muaj ntau xyoo ntawm kev paub nyob rau hauv micro-motor ntau lawm thiab kev tshawb fawb thiab kev loj hlob rau escort koj cov khoom thiab muab cov neeg muas zaub nrog saj zawg zog thiab kev customized kev pab cuam.
Hauj lwm lawm
Txheej txheem cej luam
Warranty | 3 lub hlis - 1 xyoo |
Qhov Chaw Keeb Kwm | Guangdong, Suav teb |
Hom Lub Npe | Vshida |
Qauv nab npawb | VRK-385SH |
Kev siv | Tsheb, Hluav taws xob tsheb kauj vab, Ntxuam, Cov khoom siv hauv tsev, cov qauv tswj chaw taws teeb, Cov twj tso kua mis, Cov twj tso kua mis, Cov khoom siv hauv chaw ua haujlwm, ATMs, Vending Machine, Nqus Tsev, Unlimited Power Tools, khoom siv kho mob, lub rooj zaum hauv tsheb, thiab lwm yam. |
Hom | Brushed dc lub cev muaj zog |
Qhov hnyav | TBD (qhov sib txawv qhov hnyav sib txawv) |
Cheebtsam | Diversifed |
Kev tsim kho | Permanent Magnet |
Kev sib hloov | Txhuam |
Tiv thaiv Feature | Kev kho kom haum |
Rated zog | 1.899 (W) |
Rated ceev | 3715 (rpm) |
Rated Voltage | 24V |
Rated Tam sim no | 0.146 A |
Rated torque | 4.881 (NM) |
Qhov ntev | 37.8 * 28.9 hli |
Cov nqe lus them nqi | 30 feem pua ua ntej, 70 feem pua tshuav |
Daim ntawv pov thawj | IATF16949: 2016 |
Kev kho kom haum | Txais |
Tuam txhab Highlights
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 4500000 Daim / Daim Ib Hlis dc lub cev muaj zog
Ntim & Xa
Ntim Cov Lus Qhia
Micro motor packing: Carton Box Peb tus qauv shipping cim rau txhua tus qauv yog raws li hauv qab no Q'ty: pcs NW: kgs GW: kgs Meas.: L * H * W cm Koj tus kheej shipping qhia yog txais tos.
Chaw nres nkoj: Shenzhen / HongKong
Product Description
Qhov nruab nrab ntawm ob lub hlis los tsim lub cev muaj zog tshiab

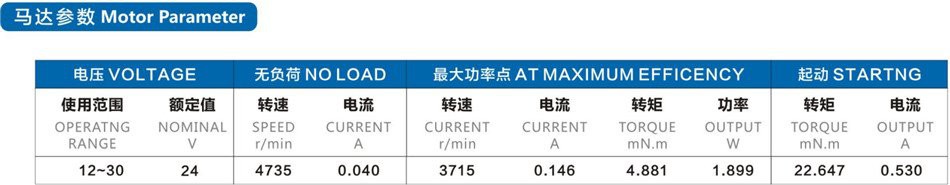

Khoom siv Prameter

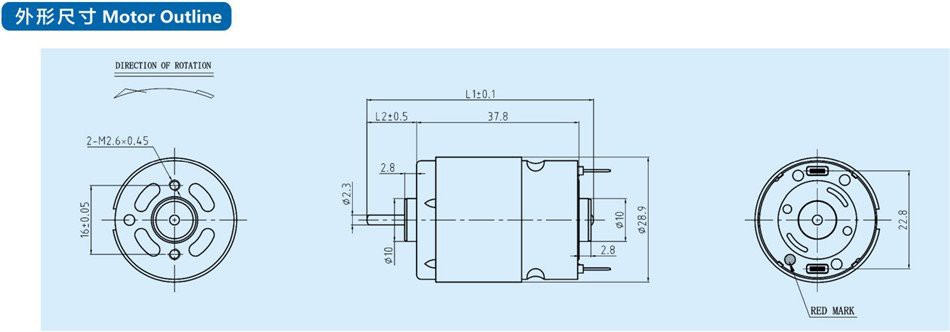

Khoom Loj

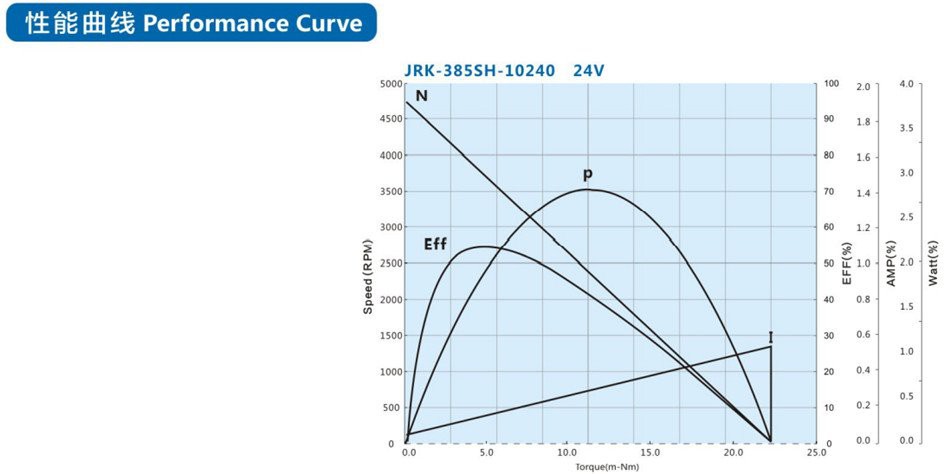

Performance Curve
Cov lus qhia saum toj no tsuas yog siv rau kev siv xwb, hom thiab qhov tsis sib xws ntawm cov pa roj carbon txhuam dc lub cev muaj zog tuaj yeem kho tau
Khoom nta
24v carbon txhuam dc lub cev muaj zog muaj qhov pib ua haujlwm tau zoo thiab tuaj yeem paub txog kev lag luam ntau yam ntawm kev tswj ceev ceev. Lub cev muaj zog ncej muaj zog versatility, tuaj yeem kho tau, tsis tshua muaj nqi tu, siab torque, tsis tshua muaj suab nrov, customized technical parameters.
Khoom Paub meej

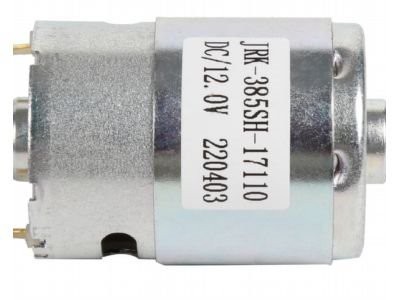

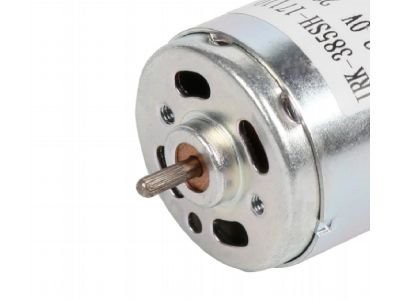

| 100 feem pua qhov tseeb duab |
|

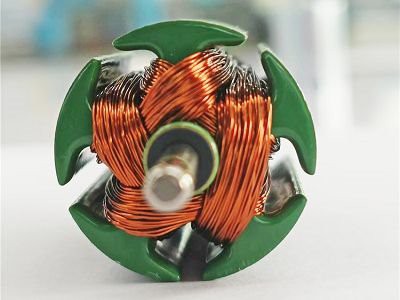

Rotor: Ua los ntawm cov hlau ntshiab tooj liab, hlau zoo core, qis calorific nqi thiab poob qis | Lub khob kawg: zoo carbon txhuam / txhuam hluav taws xob yog siv los ua kom muaj kev pab cuam lub neej thiab siab dua qib kev sib tw | |

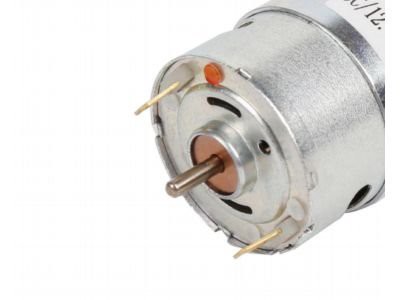

| 100 feem pua qhov tseeb duab |
|
Bearings: Cov kabmob zoo yog siv los txo suab nrov thiab nce kev pab cuam lub neej (cov kabmob tuaj yeem kho tau) | Chassis: cov ntaub ntawv zoo nrog siab hardness, kub tsis kam, corrosion kuj, hnav tsis kam thiab xeb kuj raug xaiv, thiab kev pabcuam lub neej ntev dua |

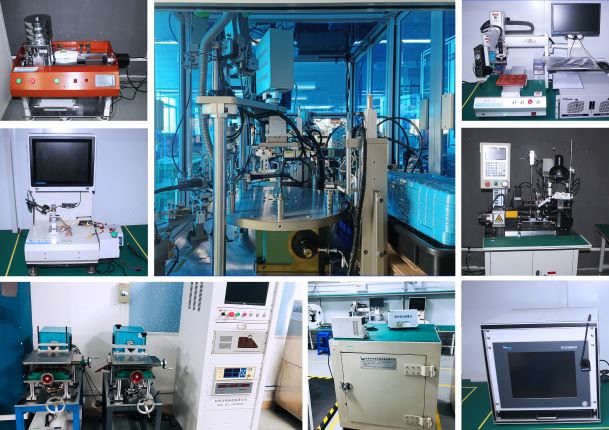

Lub tuam txhab muaj zog
Daim ntawv pov thawj khoom
Ib txhia ntawm peb cov neeg koom tes
Peb Qhov Zoo
1. Kev muag khoom ncaj qha los ntawm cov tuam txhab tsim khoom, muaj zog ntau lawm, hais txog qhov zoo, kev pabcuam zoo.
2. Kev xa khoom raws sij hawm, kev ua haujlwm zoo thiab kev siv tshuab siab heev, tus nqi xa khoom yog tshaj 95 feem pua.
3. Muaj peev xwm tshawb fawb thiab kev tsim kho, tsim lub cev muaj zog tshiab txhua ob lub hlis ntawm qhov nruab nrab.
4. Zoo meej tom qab-muag kev pabcuam system los muab kev pabcuam rau cov neeg siv khoom.
5. Nrog ntau tshaj kaum xyoo ntawm kev tsim khoom thiab R & D kev paub, kev xaiv peb yog xaiv mus rau qhov zoo.
Daim ntawv thov
Thauj Ntim
Yog tias koj muaj kev xav tau tshwj xeeb packing, thov hu rau peb ua ntej.
Yuav Cov Lus Qhia
Kev Them Nyiaj & Xa
piv txwv:
Vim tias peb lub tuam txhab xa khoom ncaj qha los ntawm lub Hoobkas hauv kev txiav txim hauv qab no, thov muab cov lus qhia tshwj xeeb, ntau thiab sib txuas lus nrog cov neeg siv khoom tshaj lij los teb rau koj cov ntaub ntawv tshwj xeeb xws li hnub xa khoom. Tag nrho peb cov khoom dhau los ntawm ntau txheej tshuaj xyuas thiab nruj me ntsis tswj cov kev xav tau zoo. Yog tias koj muaj teeb meem zoo thaum siv, koj tuaj yeem tiv tauj peb txhua lub sijhawm kom ntseeg tau tias muaj kev txaus siab rau koj. xav kom koj lub neej zoo siab!
