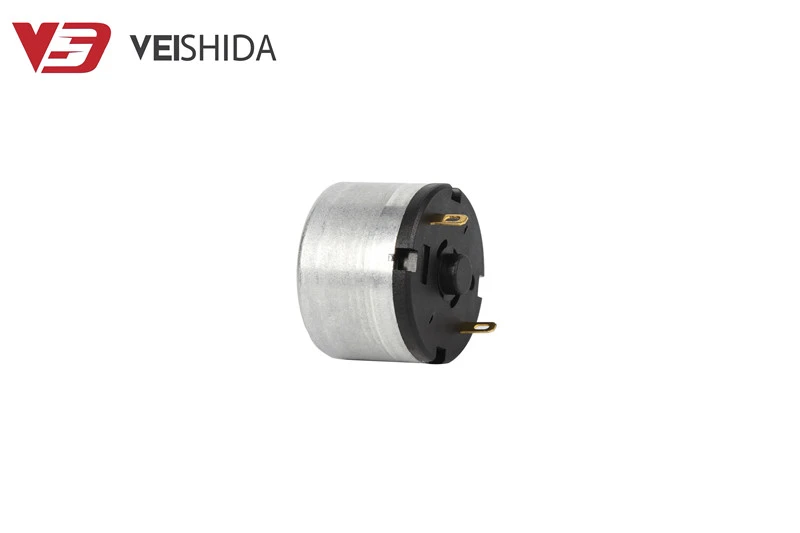

High Torque Carbon Txhuam DC Tsav
Peb cov motors tau siv dav hauv kev kho mob zoo nkauj, kev saib xyuas kev noj qab haus huv niam thiab menyuam, tsev ntse, tsheb, chaw ua haujlwm, qauv dav hlau thiab lwm yam. Peb muaj ntau xyoo ntawm kev paub nyob rau hauv micro-motor ntau lawm thiab kev tshawb fawb thiab kev loj hlob rau escort koj cov khoom thiab muab cov neeg muas zaub nrog saj zawg zog thiab kev customized kev pab cuam.
Hauj lwm lawm
Txheej txheem cej luam
Warranty | Lwm yam |
Qhov Chaw Keeb Kwm | Guangdong, Suav teb |
Hom Lub Npe | Vshida |
Qauv nab npawb | VRK-520TC |
Kev siv | kiv cua, cov khoom siv hauv tsev, cov qauv tswj chaw taws teeb, cov twj tso kua mis, cov twj tso kua mis, cov khoom siv hauv chaw ua haujlwm automation, ATMs, vending machines, lub tshuab nqus tsev vacuum, infinite power tools, khoom siv kho mob, tsheb massage rooj, thiab lwm yam. |
Hom | Brushed dc lub cev muaj zog |
Qhov hnyav | TBD (qhov sib txawv qhov hnyav sib txawv) |
Cheebtsam | Diversifed |
Kev tsim kho | Permanent Magnet |
Kev sib hloov | Txhuam |
Tiv thaiv Feature | Customized |
Kev ua tau zoo | 86 feem pua |
Rated zog | 2.30 (W) |
Rated ceev | 4800 ± 10% (rpm) |
Rated Voltage | 12 V |
Rated Tam sim no | Tsawg dua lossis sib npaug rau 0.035 (A) |
Rated torque | Ntau dua lossis sib npaug rau 140 (NM) |
Qhov ntev | 33 * 22.8 hli |
Cov nqe lus them nqi | 30 feem pua ua ntej, 70 feem pua tshuav |
Daim ntawv pov thawj | ROHS |
Kev kho kom haum | Txais |
Tuam txhab Highlights
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 4500000 Daim / Daim Ib Hlis dc lub cev muaj zog
Ntim & Xa
Ntim Cov Lus Qhia
Micro motor packing: Carton Box Peb tus qauv shipping cim rau txhua tus qauv yog raws li hauv qab no Q'ty: pcs NW: kgs GW: kgs Meas.: L * H * W cm Koj tus kheej shipping qhia yog txais tos.
Chaw nres nkoj: Shenzhen / HongKong
Product Description
Qhov nruab nrab ntawm ob lub hlis los tsim lub cev muaj zog tshiab
Khoom siv Prameter
Khoom Loj
Performance Curve
Cov lus qhia saum toj no tsuas yog siv rau kev siv xwb, hom thiab tsis muaj lub cev muaj zog tuaj yeem kho tau
Khoom nta
Brushed DC motors yog siv rau hauv cov twj tso kua dej, cov twj siv cua, cov khoom siv hauv tsev thiab cov khoom siv automation, thiab lwm yam, nrog rau ntau yam kev siv, tsis tshua muaj suab nrov, kev ua haujlwm siab, kev hloov ceev ceev, thiab kev ua haujlwm ruaj khov.
Khoom Paub meej
| 100 feem pua qhov tseeb duab |
|
Rotor: ntshiab tooj liab hlau winding, tsawg calorific tus nqi, poob qis, txo qhov tam sim no tsis kam | End cap: high-zoo carbon txhuam / hluav taws xob txhuam yog siv los ua kom muaj kev pab cuam lub neej thiab siab dua qib kev sib tw | |
| 100 feem pua qhov tseeb duab |
|
Cov kabmob txais cov suab nrov qis thiab hnav-resistant bearing (cov kabmob tuaj yeem kho tau) | Stator: cov ntaub ntawv zoo nrog siab hardness, kub tsis kam, corrosion kuj, hnav tsis kam thiab xeb kuj raug xaiv, thiab kev pabcuam lub neej ntev dua |
Lub tuam txhab muaj zog
Daim ntawv pov thawj khoom
Peb Qhov Zoo
1. Cov tuam txhab muaj zog, tuaj yeem ua raws li cov neeg siv khoom xav tau.
2. Tus nqi kom zoo dua, zoo siab thiab tus nqi qis, muaj tus nqi zoo tshaj plaws nyob rau hauv lub teb ntawm motors.
3. Muaj peev xwm tsim tau, tsis siv neeg ntau lawm kab, ua tau txog 150, 000 micro motors ib hnub twg.
4. Kev ua haujlwm yooj yim thiab kev xa khoom sai.
5. Muab kev txhawb nqa thiab kev pab cuam tom qab muag.
Ib txhia ntawm peb cov neeg koom tes
Daim ntawv thov
Thauj Ntim
Yog tias koj muaj kev xav tau tshwj xeeb packing, thov hu rau peb ua ntej.
Yuav Cov Lus Qhia
Kev Them Nyiaj & Xa
Ceev faj:
Lub cev muaj zog no tsis muaj lossis tsim nyog rau txhua tus qauv, nco ntsoov xyuas koj cov ntawv thov tshwj xeeb ua ntej yuav khoom.
Yog tias koj tab tom hloov lub cev muaj zog, nco ntsoov xyuas tias lub cev muaj zog phim koj qhov loj thiab qhov ntev thiab txoj kab uas hla ua ntej yuav khoom.
Thov sab laj rau peb kom paub meej, peb yuav teb koj cov lus nug hauv 24 teev.
