12V DC Planetary Geared Tsav

Lub 12 volt dc planetary geared lub cev muaj zog yog lub cev muaj zog heev uas khiav ntawm 12-24V thiab muaj qhov sib piv ntawm 1: 91. Nominal ceev ntawm idle yog 45 rpm ntawm 12V lossis 90 rpm ntawm 24V. Lub rotor muaj zog sib nqus induction, conduction, tsawg poob, high efficiency, thiab tsis tshua muaj suab nrov, muab rau koj nyob ntsiag to ua hauj lwm ib puag ncig. Lub plhaub yog tiv taus kub, siab hnav tsis kam thiab muaj zog bearing muaj peev xwm, uas tuaj yeem ua kom muaj kev nyab xeeb ntawm lub cev muaj zog. Nrog planetary gearbox, zoo tagnrho rau tej yaam num nyob rau hauv lub teb ntawm automation, qauv tsim los yog robotics.

Tuam txhab Highlights



Txheej txheem cej luam

Warranty	3 lub hlis - 1 xyoo
Qhov Chaw Keeb Kwm	Shenzhen, Suav teb
Hom Lub Npe	Vshida
Qauv nab npawb	VSD-G2430
Kev siv	Ntse tsev, machinery, khoom siv, automation khoom, CNC tshuab cuab yeej, high-precision ntsuas ntsuas, thiab lwm yam.
Hom	Lub cev muaj zog
Qhov hnyav	TBD (qhov sib txawv qhov hnyav sib txawv)
Cheebtsam	Diversifed
Kev tsim kho	Permanent Magnet
Kev sib hloov	Txhuam txhuam / txhuam
Tiv thaiv Feature	Customized (Waterproof, Fireproof, Fully Enclosed)
Kev ua tau zoo	83 feem pua
Hom Shast	D-shaft
Kev taw qhia ntawm kev sib hloov	CWJ/CCW
Rated ceev	6-1000 (rpm)
Rated Voltage	24 (V)
Cov nqe lus them nqi	30% TT raws li tso nyiaj, 70% TT tshuav nyiaj li cas ua ntej xa khoom
Daim ntawv pov thawj	TIAB SA 16949
Customized	Txais

Product Description

Peb muaj cov kws tshaj lij R & D pab neeg nrog R & D muaj peev xwm. Peb tuaj yeem tsim ntau yam tshiab motors hauv ib lub hlis kom tau raws li cov kev xav tau ntawm cov neeg siv khoom. Yog tias koj xav tau kev txhawb nqa encoders, gearboxes, tsav tsheb, thiab lwm yam., Zoo siab txais tos los tham nrog peb txhua lub sijhawm.

Customized yam khoom:Ceev, voltage, hwj chim, lead hlau, lead terminal, thiab tso zis ncej

Khoom Paub meej

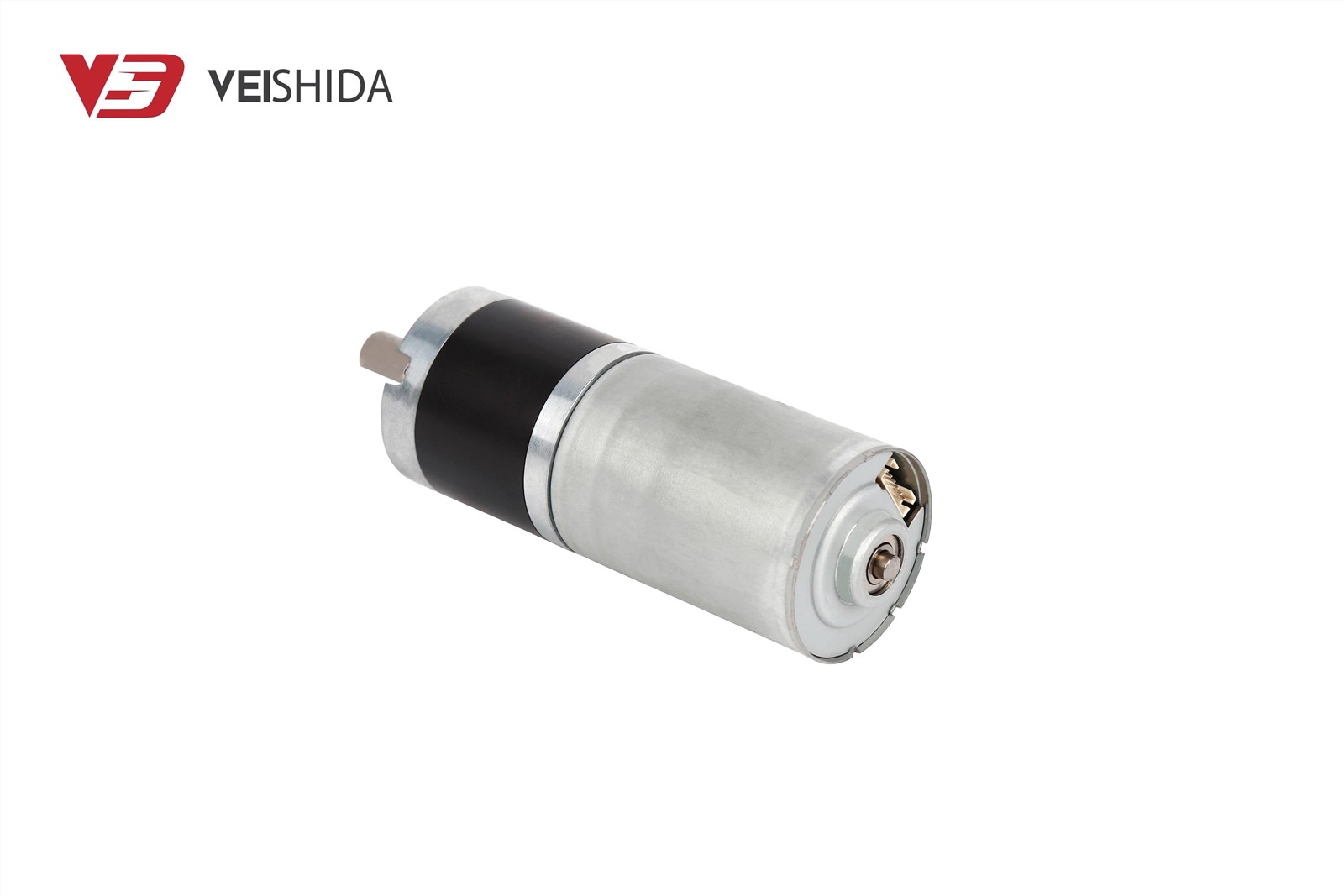

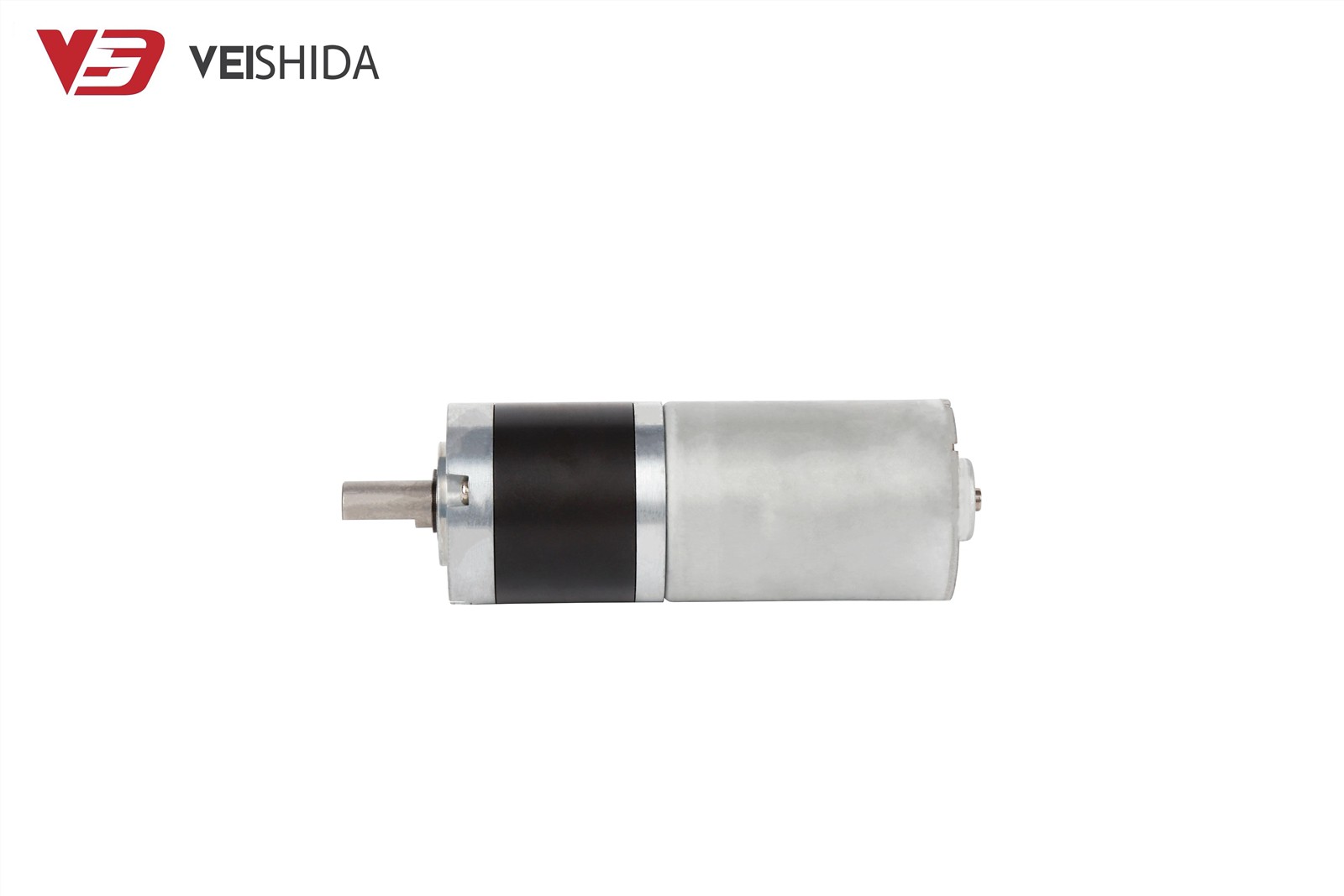

	100 feem pua qhov tseeb duab
Lub rotor muaj zog sib nqus induction, siab conductivity, tsawg poob, thiab high efficiency. Lub coil yog qhov txhab nrog cov hlau ntshiab tooj liab, cov tub ntxhais hlau zoo, thiab tsis tshua muaj cua sov;		Lub cev muaj zog hauv qab tau xav tau tsim los pab txhawb kev sib txawv ntawm cov txheej txheem vuam. Tsau rotor, txhim kho kev sib txuam, nce cua sov dissipation, thiab kev pab lub neej ntev dua.

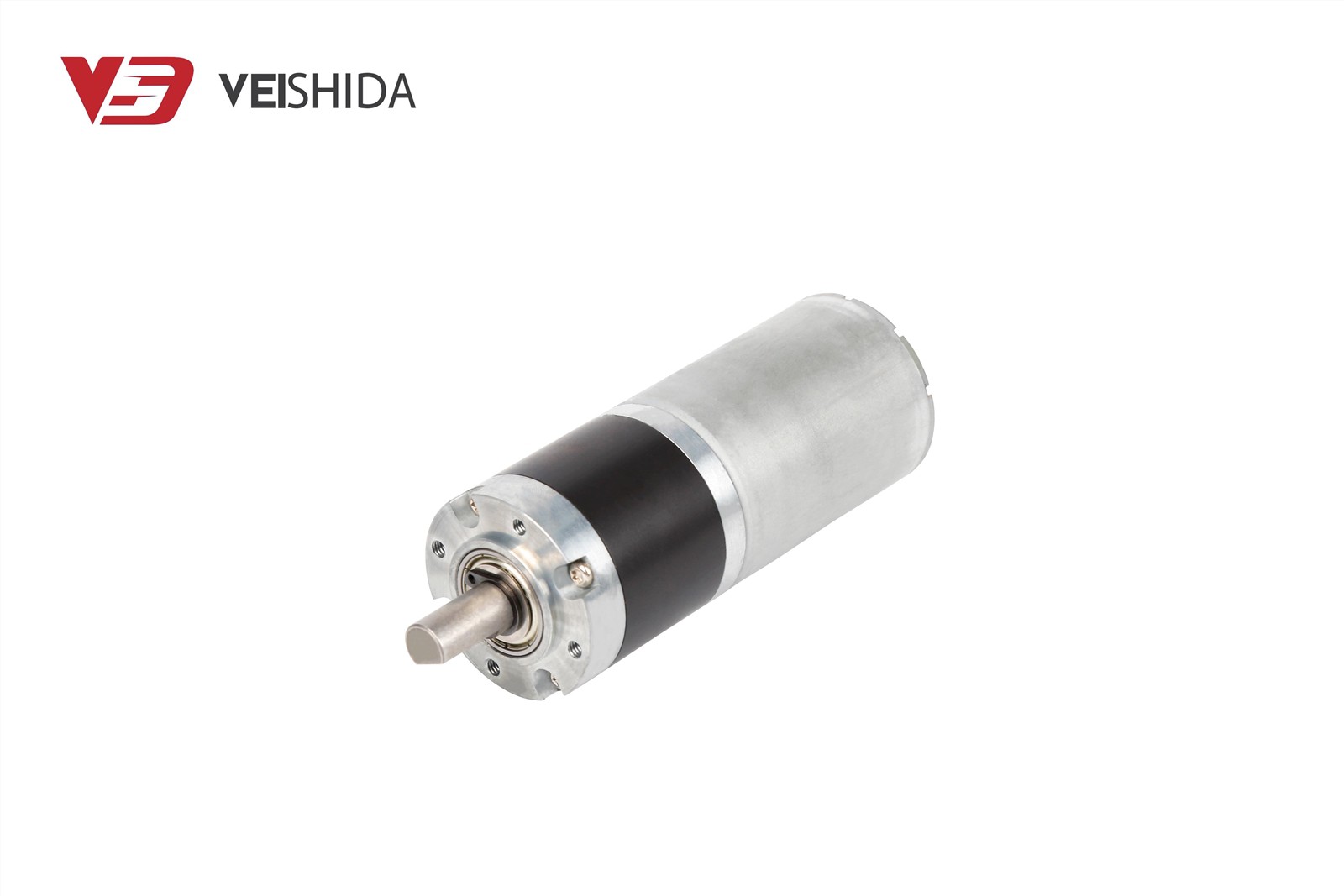

	100 feem pua qhov tseeb duab
Lub D-axis yog tswj los ntawm CNC, uas yog resistant rau hnav thiab xeb; kev sib txhuam yog siab dua, kev sib kis tau zoo dua, thiab kev sib txuas yog yooj yim dua.		Lub cev muaj zog casing yog ua los ntawm cov khoom siv zoo aluminium, uas tiv taus qhov kub thiab txias, hnav tsis kam thiab muaj zog muaj peev xwm, uas tuaj yeem ua kom muaj kev nyab xeeb ntawm lub cev muaj zog.

Gear Motor Description

1. Peb muaj ntau xyoo dhau los ntawm kev tsim cov micro motor gearboxes, muab kev txhawb nqa los ntawm R & D, qauv, kev sim, sib dhos thiab ntau lawm, ODM & OEM
2. Lub Hoobkas ncaj qha ntau lawm thiab muag khoom, kev ua haujlwm zoo, kev siv tshuab siab heev, tus nqi sib tw
3.12 volt dc planetary geared lub cev muaj zog muaj cov yam ntxwv ntawm lub suab nrov, kev ua haujlwm siab, lub neej ntev, me me, lub teeb yuag, muaj peev xwm nqa tau, lub neej ntev thiab kev ua haujlwm ruaj khov;
4. Kev xa khoom raws sijhawm, kev xa khoom tsis pub dhau 15 hnub ua haujlwm tom qab qhov kawg them nyiaj tuaj txog, yog tias qhov khoom xa tuaj tsis tuaj yeem ua raws li lub sijhawm teev tseg, qee qhov luv nqi yuav muab rau tus neeg siv khoom txhua lub limtiam ncua sijhawm kom ntseeg tau qhov kev txaus siab ntawm tus neeg siv khoom;
5. Daim ntawv thov: automation kev lag luam, semiconductor khoom, khoom siv kho mob, neeg hlau, manipulator, kev sib txuas lus cov cuab yeej, kws tshuaj, tshuab luam ntawv, ntim machinery, tsis siv neeg tswj system thiab lwm yam lag luam. Specifications tuaj yeem tsim raws li cov neeg siv khoom xav tau!

Lub tuam txhab muaj zog

Vshida micro motors muaj cov txheej txheem kev tswj xyuas ntau lawm thiab cov khoom tsim muaj zog thiab kev tsim muaj peev xwm. Nrog peb kev sib koom tes, peb tau dhau ISO 9001: 2015 thiab IATF16949: 2016 daim ntawv pov thawj kev tswj xyuas zoo. Ua tau raws li cov kev xav tau ntawm cov neeg siv khoom rau daim ntawv pov thawj; lub tuam txhab muaj ntau tshaj 500 tus neeg ua haujlwm, ntau tshaj 40 cov kab ntau lawm, thiab ntau tshaj 300 cov khoom siv automation, uas muaj peev xwm tuav tau ntau qhov kev txiav txim los ntawm cov neeg siv khoom. Kuj lees txais OEM / ODM

Txhawm rau txhim kho kev tsim khoom, lub tuam txhab muaj cov cuab yeej siv thev naus laus zis xws li cov tshuab tsis siv neeg soldering, tshuab winding, stator tshuab, thiab lwm yam khoom siv hluav taws xob ntau lawm. Txhua lub cev muaj zog kuj tau txais ntau qhov kev ntsuam xyuas kev ntseeg siab, suav nrog kev sim lub neej, ntsuas suab nrov, ntsuas dej tsis zoo, ntsuas tshuaj ntsev, ntsuas qhov cuam tshuam, ntsuas kev cia khoom, ntsuas qhov ntsuas ib puag ncig, thiab lwm yam, los muab cov khoom zoo.



Daim ntawv pov thawj khoom

Peb lub tuam txhab tau txais ntau daim ntawv pov thawj thoob ntiaj teb thiab cov ntawv pov thawj patent kom ua tau raws li qhov xav tau ntawm peb cov neeg siv khoom rau daim ntawv pov thawj. Yog tias koj muaj kev xav tau tshwj xeeb, thov hu rau peb kom muab cov ntawv pov thawj coj los rau koj.

Ib txhia ntawm peb cov neeg koom tes

Peb hais kom muab cov khoom zoo micro DC geared motors. Kev xaiv koom tes nrog peb yog xaiv los koom tes nrog cov tuam txhab tsim khoom zoo. Zoo siab txais tos koj qhov kev nug thiab tos ntsoov los ua koj tus khub!

Daim ntawv thov

Planetary iav motors tau dav siv hauv tsev ntse, cov cuab yeej siv tshuab, cov khoom siv automation, CNC tshuab cuab yeej, cov cuab yeej ntsuas siab, kev kho mob, kev zoo nkauj, khoom siv dag zog, drones, neeg hlau, thiab lwm yam, thiab tuaj yeem ua raws li cov haujlwm tshwj xeeb.



Vim li cas thiaj xaiv peb?

Thauj Ntim

Ua ntej siv cov nylon ntim, tom qab ntawd siv lub thawv ntim, thiab tom qab ntawd siv cov thawv ntoo los txhawb cov ntim sab nrauv. Los yog qhia cov ntsiab lus ntim raws li cov neeg siv khoom xav tau.



Kev Them Nyiaj & Xa

12 volt dc planetary geared lub cev muaj zog ua haujlwm ceev faj



1. Thaum siv lub cev muaj zog, yuav tsum tsis txhob muaj cov nplaum nplaum, xws li cov nplaum tsis tuaj yeem txhaj rau hauv cov kabmob los ntawm cov kabmob rotating, uas yuav cuam tshuam kev ua haujlwm ntawm lub cev muaj zog.
2. Tsis txhob cia lub cev muaj zog tau daig. Tom qab muab lub zog rau, lub cev muaj zog yuav overheat nyob rau hauv ib lub sij hawm luv luv, hlawv nws accessories.
3. Nws yog tsim rau hauv eccentric hnyav hluav taws xob load, uas tsis zoo rau lub neej ntawm lub cev muaj zog.
4. Kev teeb tsa thiab nias ntawm rubeys lossis lub zog yuav tsum tsis txhob hnyav dhau.
5. Kev sib hloov ntawm cov ncej yuav muaj kev cuam tshuam tsis zoo rau lub neej ntawm lub cev muaj zog. Txhawm rau kom ntev kev pab cuam lub neej, thov xyuas tias koj lub load yog nyob rau hauv specification thiab tsis muaj overloads los yog cov khoom dai ntawm qhov kawg ntawm ncej uas yuav tiv thaiv nws los ntawm tig.
6. Vim tias tsis muaj cov neeg ua haujlwm txawj, thaum lub cev muaj zog ua tau raws li cov xwm txheej tau hais hauv phau ntawv qhia, lossis kev txiav txim siab pom tseeb yog qhov tsis raug, qhov zoo ntawm lub cev muaj zog tsis tuaj yeem lav.
7. Tsis txhob khaws cia rau hauv qhov kub thiab txias heev, thiab tsis txhob muab tso rau hauv corrosive gases, uas yuav txo tau cov nyhuv ntawm lub cev muaj zog.
8. Thaum qhov zoo thiab tsis zoo lub cev muaj zog terminals ntawm lub hwj huam mov yuav tsum tau soldered, qhov kub ntawm lub soldering hlau yog 340 degree ± 40 degree, thiab lub cua sov lub sij hawm nyob rau hauv 3 vib nas this. Tsis txhob lo kua nplaum (thaum lub sijhawm ua haujlwm, yog tias qhov sib koom ua ke nkag mus rau lub cev muaj zog lossis tawg cov hlau, nws yuav ua rau kev ua haujlwm ntawm lub cev muaj zog poob qis.)
9. Tsis txhob khiav lub cev muaj zog hauv ib puag ncig ntawm qhov kub thiab txias.
10. Thaum txhim kho lub cev muaj zog, yog tias cov ntsia hlau ntev dhau lawm, nws yuav ua rau lub cev muaj zog nws tus kheej hu rau rotor thiab cuam tshuam rau cov yam ntxwv.



Tsis txhob yig tiv tauj peb yog tias koj muaj kev xav tau ntxiv. Thaum twg koj xav tau peb, peb yuav teb koj cov lus nug hauv online.
