12v DC Micro Cua Pump
Sab nraud txoj kab uas hla: 32mm,
Lub cev muaj zog: 30mm,
Pump Length: 65mm,
Valve dav: 7mm

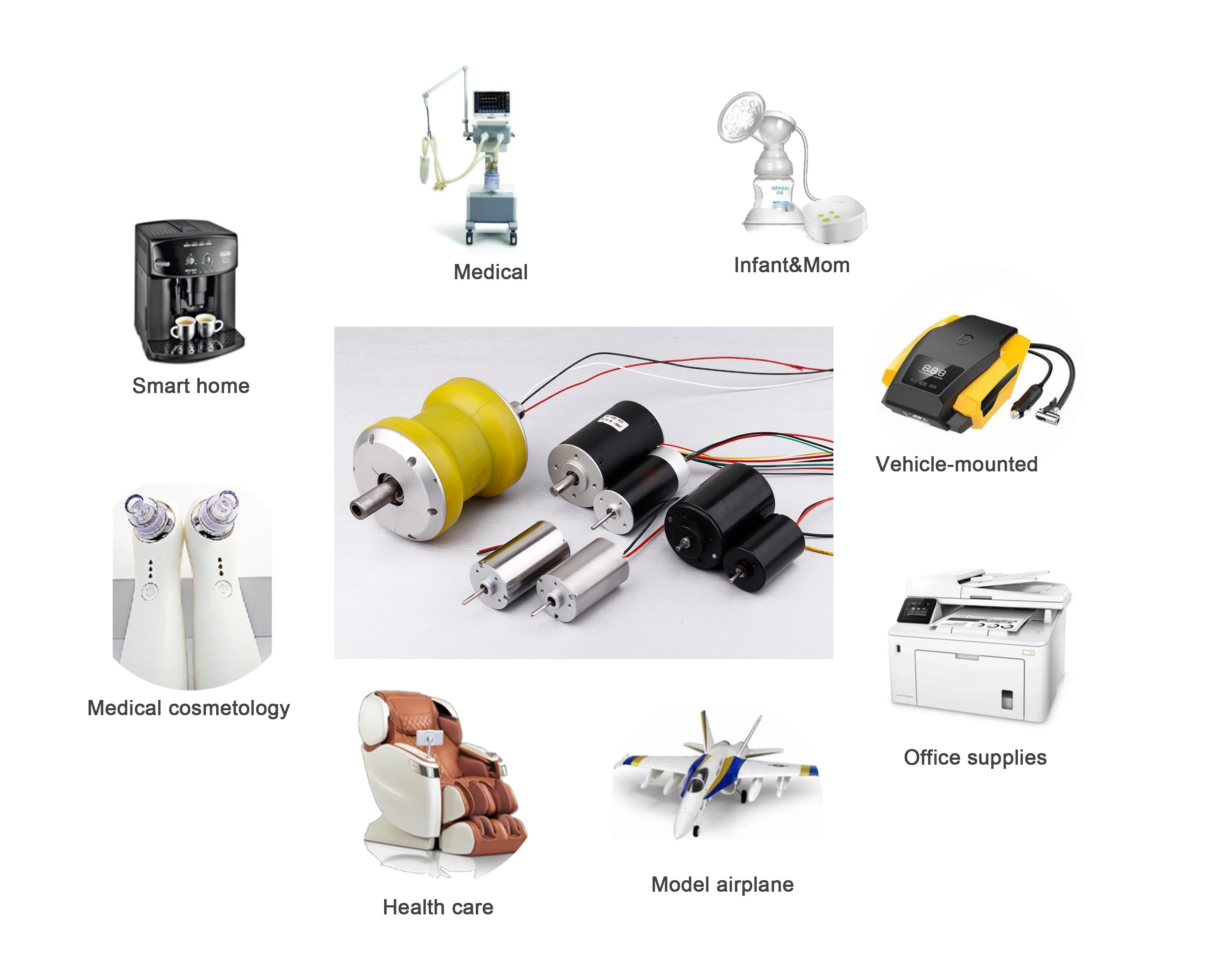

Siv dav hauv kev kho mob, kev zoo nkauj, kev saib xyuas kev noj qab haus huv ntawm niam thiab menyuam, lub tsev ntse, tsheb, chaw ua haujlwm, qauv dav hlau, khoom ua si qauv, cov cuab yeej hluav taws xob, neeg hlau thiab lwm yam. Peb muaj ntau xyoo ntawm kev tsim thiab kev loj hlob ntawm micro-motors, escort koj cov khoom, thiab muab cov neeg muas zaub nrog saj zawg zog thiab kev customized kev pab cuam.
Hauj lwm lawm
12v DC micro cua twj tso kua mis yog tsim los ntawm 3035 brushed DC lub cev muaj zog, axial clearance: 8 ± 0.3 hli, ntsuas voltage: DC 12V, feem ntau yog siv rau hauv cov twj tso kua mis oxygen, tshuaj tua kab mob, tshuab zaws ko taw, massager thiab lwm yam teb, tsis tshua muaj suab nrov, lub neej ntev, kev ua haujlwm ruaj khov, kev ua haujlwm siab, dej ntws loj thiab lwm yam ntxwv, pab pawg tshawb fawb ywj pheej thiab kev tsim kho, tuaj yeem kho raws li cov neeg siv khoom xav tau, muaj kev lag luam ib-nres.
Tuam txhab Highlights
Txheej txheem cej luam
Warranty | 3 lub hlis - 1 xyoo |
Qhov Chaw Keeb Kwm | Shenzhen, Suav teb |
Hom Lub Npe | Vshida |
Qauv nab npawb | VWP-3209 |
Kev siv | Ntse tsev, txhaj tshuaj oxygen, tshuaj tua kab mob, tshuab pedicure, massager, khoom siv kho mob, kev tiv thaiv ib puag ncig, kev lag luam, thiab lwm yam. |
Hom | Micro cua twj tso kua mis |
Qhov hnyav | TBD (qhov sib txawv qhov hnyav sib txawv) |
Cheebtsam | Diversifed |
Kev tsim kho | Diaphragm twj tso kua mis |
Load Suab nrov | Tsawg dua lossis sib npaug li 63dB |
Tiv thaiv Feature | Waterproof / Fireproof / Totally Enclosed |
Rated Voltage | 6 V |
Rated Tam sim no | Tsawg dua lossis sib npaug li 800mA |
| Standard / Tsis-tus qauv | Tsis yog tus qauv |
Max Siab | Ntau dua lossis sib npaug li 450mmHg |
| Cua ntws | Ntau dua lossis sib npaug li 5LPM |
| Kev sim neej | Ntau tshaj lossis sib npaug rau 400H |
| Lub Sijhawm Inflation | Tsawg dua lossis sib npaug li 8S (500cc) |
Cov nqe lus them nqi | 30 feem pua ua ntej, 70 feem pua tshuav |
Daim ntawv pov thawj | TIAB SA 16949 |
Customized | Txais |
Product Description
Khoom Parameter
Rated Voltage | Rated Tam sim no | Max Siab | Cua Flow | Lub Sijhawm Inflation | Cov dej ntws tawm | Suab nrov Withload | Kev sim neej |
| DC 6 0V | Tsawg dua lossis sib npaug li 800mA | Ntau dua lossis sib npaug li 450mmHg | Ntau dua lossis sib npaug li 5LPM | Tsawg dua lossis sib npaug li 8S (500cc) | Tsawg dua lossis sib npaug li 10mmHg / min | Tsawg dua lossis sib npaug li 63dB | Ntau tshaj lossis sib npaug rau 400H |
DC 12 0V | Tsawg dua lossis sib npaug li 300mA | Ntau dua lossis sib npaug li 450mmHg | Ntau dua lossis sib npaug li 5LPM | Tsawg dua lossis sib npaug li 8S (500cc) | Tsawg dua lossis sib npaug li 10mmHg / min | Tsawg dua lossis sib npaug li 63dB | Ntau tshaj lossis sib npaug rau 400H |
DC 24 0V | Tsawg dua lossis sib npaug li 200mA | Ntau dua lossis sib npaug li 450mmHg | Ntau dua lossis sib npaug li 5LPM | Tsawg dua lossis sib npaug li 8S (500cc) | Tsawg dua lossis sib npaug li 10mmHg / min | Tsawg dua lossis sib npaug li 63dB | Ntau tshaj lossis sib npaug rau 400H |
| 3.7V DC | Tsawg dua lossis sib npaug li 2000mA | Ntau dua lossis sib npaug li 450mmHg | Ntau dua lossis sib npaug li 5LPM | Tsawg dua lossis sib npaug li 8S (500cc) | Tsawg dua lossis sib npaug li 10mmHg / min | Tsawg dua lossis sib npaug li 63dB | Ntau tshaj lossis sib npaug rau 400H |

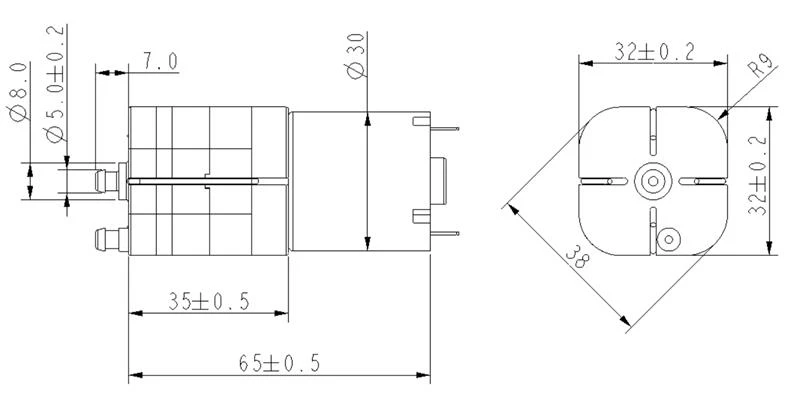

Khoom Loj
Customized khoom: cua nozzle kev taw qhia (cua hauv thiab tawm), tus nqi ntws, siab, lub cev muaj zog (ntev, tuab, lub neej), thiab lwm yam.

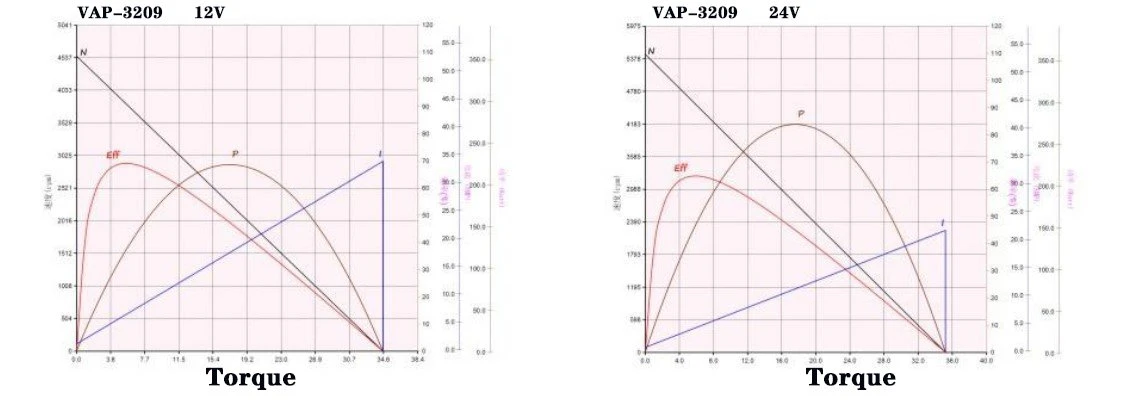

Pump Performance Curve
Khoom Paub meej
| 100 feem pua qhov tseeb duab |
|
Rotor: ntshiab tooj liab hlau winding, hwm cov tub ntxhais hlau, qis zog tsim, qis zog poob, qis zog txaus tsis kam | Chassis: cov ntaub ntawv zoo uas tau ua tib zoo xaiv rau lawv cov kav ntev, hardness, kub tsis kam, corrosion kuj, hnav tsis kam, thiab xeb kuj. | |
| 100 feem pua qhov tseeb duab |
|
Lub hau kawg: siv cov ntaub ntawv zoo zoo, txhim kho lub cev muaj zog lub rotor, thiab muaj cov cua kub dissipation system kom ntev kev pab cuam lub neej. | Nws yog corrosion-resistant thiab kav ntev vim nws yog ua los ntawm hwm aluminium thiab yas. |
Khoom nta
12v DC Micro Cua twj tso kua mis muaj lub neej ntev, 24 teev ua haujlwm, tsis tshua muaj kev cuam tshuam, kev tiv thaiv tus kheej, tsis muaj txim taws, me me, tsis tshua muaj suab nrov, tsis tshua muaj zog noj, tus nqi qis, tuaj yeem hloov kho cov kev taw qhia ntawm cua nozzle (cua cua nkag thiab qhov hluav taws xob) , ntws tus nqi, siab, Lub cev muaj zog (ntev, tuab, lub neej) thiab lwm yam ntxwv
Lub tuam txhab muaj zog
Tsis siv neeg winding khoom, tsis siv neeg stator khoom, tsis siv neeg kawg npog cov cuab yeej, tsis siv neeg stator soldering khoom, kev ntseeg siab kuaj lab, suab nrov kuaj, kuaj dej tsis zoo, kuaj lub neej, kuaj kev sib tsoo, kev sim cia, tshuaj tsuag ntsev, thiab lwm yam.
Kev ywj pheej R & D pab neeg kom ua tau raws li koj qhov kev xav tau; automated ntau lawm kab kom tau raws li koj qhov kev txiav txim loj, ntau cov kev xeem kom tau raws li koj qhov yuav tsum tau ua.
Daim ntawv pov thawj khoom
Peb Qhov Zoo
1. Ntau tshaj 300 lub tshuab high-end ntawm ntau hom yog tsim nyob rau hauv peb lub chaw, thiab ib tug zoo heev zoo tswj system guarantees tias cov motors raws li CE, REACH, thiab RoHS cov kev cai.
2. Ua tsaug rau peb ntau tshaj 500 tus neeg ua haujlwm tau txais kev cob qhia zoo, cov txheej txheem ntau lawm, thiab cov kab ntau lawm, peb tuaj yeem tsim ntau tshaj 200,000 motors txhua hnub.
3. Txhawm rau kom ntseeg tau tias peb cov kev pabcuam zoo, peb tau siv cov cuab yeej txiav CAD zoo li Proe thiab Solidworks. Peb muab kev pabcuam OEM nrog rau cov kev daws teeb meem tiav.
4. Txhua nqe lus nug yuav tau txais cov lus teb tsis pub dhau ib hnub. Kev txiav txim tau xa tuaj raws sijhawm hauv 95 ntxiv rau feem pua ntawm cov neeg mob, thiab kev tsis txaus siab tuaj yeem daws tau hauv 7 hnub.
5. Muab kev cai tsim thiab OEM / ODM kev pabcuam kom ua tiav koj qhov kev pabcuam ib-nres.
Ib txhia ntawm peb cov neeg koom tes
Peb zoo siab los ua koj tus khub mus sij hawm ntev hauv Suav teb. Peb tau mob siab rau kev lag luam tsheb ntau xyoo, ua haujlwm rau lub twj tso kua mis ntawm European thiab Asmeskas kev lag luam.
Daim ntawv thov
Thauj Ntim
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 200000 Daim / Daim ib hnub dc lub cev muaj zog
Ntim: B3B Corrugated Box Peb tus qauv rau txhua tus qauv yog raws li hauv qab no:
tus nqi
Net nyhav: kg
Qhov hnyav tag nrho: kg
Loj: ntev * qhov siab * dav cm.
Chaw nres nkoj: Hong Kong / Shenzhen
Shockproof ua npuas ncauj ntim, haum thawv loj.Yog tias koj muaj kev xav tau tshwj xeeb, thov hu rau peb ua ntej.
Yuav Cov Lus Qhia
Kev Them Nyiaj & Xa
Qhov zoo ntawm 12v DC Micro Cua Pump
1. Lub neej ntev. Vim lub configuration ntawm brushless lub cev muaj zog, lub neej ntawm lub cev muaj zog yog zoo heev ncua, tshwj xeeb tshaj yog
Nws yog ib tug txawv teb version, uas yog ntev tshaj li peb lub neej ntev cov khoom tshwj xeeb nrog brushed motors, thiab tus nqi qis dua.
Cov khoom tshwj xeeb yog pheej yig. Peb tau ua ntau yam kev txhim kho rau cov diaphragms, bearings thiab lwm yam khoom kom nce twj tso kua mis lub neej.
2. Kev cuam tshuam tsawg. Tsis tsim kom muaj kev sib tsoo kom muaj kuab paug rau cov khoom siv hluav taws xob thiab cuam tshuam nrog cov khoom siv hluav taws xob nyob ze. Nws tsis cuam tshuam nrog kev tswj Circuit Court hauv txhua txoj kev. Nws qhov cuam tshuam me dua li peb cov khoom siv tshwj xeeb uas tsis tshua muaj kev cuam tshuam nrog txhuam cov motors, thiab tus nqi pheej yig.
3, nrog kev tiv thaiv tus kheej. Nrog kev tiv thaiv overheat, thaum lub ambient kub yog poob nthav siab, lub cev muaj zog yuav
Tsis siv neeg nres; nrog kev tiv thaiv overload, thaum lub twj tso kua mis raug daig, lub cev muaj zog yuav nres. ntawm lub twj tso kua mis
Thaum muaj xwm txheej ntawm kev ua haujlwm, nws tuaj yeem tiv thaiv nws tus kheej los ntawm kev kub hnyiab thiab kev puas tsuaj.
