Micro Vacuum Pump rau Lub Cev Lub Cev
Peb cov motors tau siv dav hauv kev kho mob zoo nkauj, kev saib xyuas kev noj qab haus huv niam thiab menyuam, tsev ntse, tsheb, chaw ua haujlwm, qauv dav hlau thiab lwm yam. Peb muaj ntau xyoo ntawm kev paub nyob rau hauv micro-motor ntau lawm thiab kev tshawb fawb thiab kev loj hlob rau escort koj cov khoom thiab muab cov neeg muas zaub nrog saj zawg zog thiab kev customized kev pab cuam.
Hauj lwm lawm
Txheej txheem cej luam
Warranty | 3 lub hlis - 1 xyoo |
Qhov Chaw Keeb Kwm | Guangdong, Suav teb |
Hom Lub Npe | Vshida |
Qauv nab npawb | VAVP-2708 |
Kev siv | Cov twj tso kua mis, lub tshuab nqus tsev khaws cia, ib puag ncig saib xyuas, blackhead suction device, Cov cuab yeej kho mob, cov khoom siv zaws, cov khoom siv zoo nkauj, khoom siv hauv tsev, khoom siv hluav taws xob, automation, thiab lwm yam. |
Hom | Lub tshuab nqus tsev twj |
Qhov hnyav | TBD (qhov sib txawv qhov hnyav sib txawv) |
Cheebtsam | Diversifed |
Kev tsim kho | Diaphragm twj tso kua mis |
Suab nrov Withload | Tsawg dua lossis sib npaug li 60dB |
Tiv thaiv Feature | Customized |
Rated Voltage | Xaiv tau |
Rated Tam sim no | Xaiv tau |
Max siab | Ntau dua lossis sib npaug li 400mmHg |
Kev sim neej | Ntau tshaj lossis sib npaug rau 400H |
Standard / Tsis-standard | Tsis yog tus qauv |
Cov nqe lus them nqi | 30 feem pua ua ntej, 70 feem pua tshuav |
Daim ntawv pov thawj | Ua kom tiav |
Kev kho kom haum | Txais |
Tuam txhab Highlights
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 4500000 Daim / Daim Ib Hlis dc lub cev muaj zog
Ntim & Xa
Ntim Cov Lus Qhia
Micro motor packing: Carton Box Peb tus qauv shipping cim rau txhua tus qauv yog raws li hauv qab no Q'ty: pcs NW: kgs GW: kgs Meas.: L * H * W cm Koj tus kheej shipping qhia yog txais tos.
Chaw nres nkoj: Shenzhen / HongKong
Product Description
Customized technical data, lub neej ua haujlwm ntev, kev ua haujlwm ruaj khov, me me thiab lub teeb yuag
Khoom siv Prameter
Rated Voltage | Rated Tam sim no | Max Siab | Max nqus tsev vacuum | Cua Flow | Suab nrov Withload | Kev sim neej | Rated Voltage |
DC 3 0V | Tsawg dua lossis sib npaug li 600mA | Ntau dua lossis sib npaug li 400mmHg | Ntau dua lossis sib npaug li 300mmHg | Ntau tshaj lossis sib npaug li 1.5L | Tsawg dua lossis sib npaug li 60dB | Ntau tshaj lossis sib npaug rau 400H | DC 3 0V |
DC 6 0V | Tsawg dua lossis sib npaug li 430mA | Ntau dua lossis sib npaug li 400mmHg | Ntau dua lossis sib npaug li 300mmHg | Ntau tshaj lossis sib npaug li 1.5L | Tsawg dua lossis sib npaug li 60dB | Ntau tshaj lossis sib npaug rau 400H | DC 6 0V |
DC 12 0V | Tsawg dua lossis sib npaug li 280mA | Ntau dua lossis sib npaug li 400mmHg | Ntau dua lossis sib npaug li 300mmHg | Ntau tshaj lossis sib npaug li 1.5L | Tsawg dua lossis sib npaug li 60dB | Ntau tshaj lossis sib npaug rau 400H | DC 12 0V |
DC 24 0V | Tsawg dua lossis sib npaug li 150mA | Ntau dua lossis sib npaug li 400mmHg | Ntau dua lossis sib npaug li 300mmHg | Ntau tshaj lossis sib npaug li 1.5L | Tsawg dua lossis sib npaug li 60dB | Ntau tshaj lossis sib npaug rau 400H | DC 24 0V |

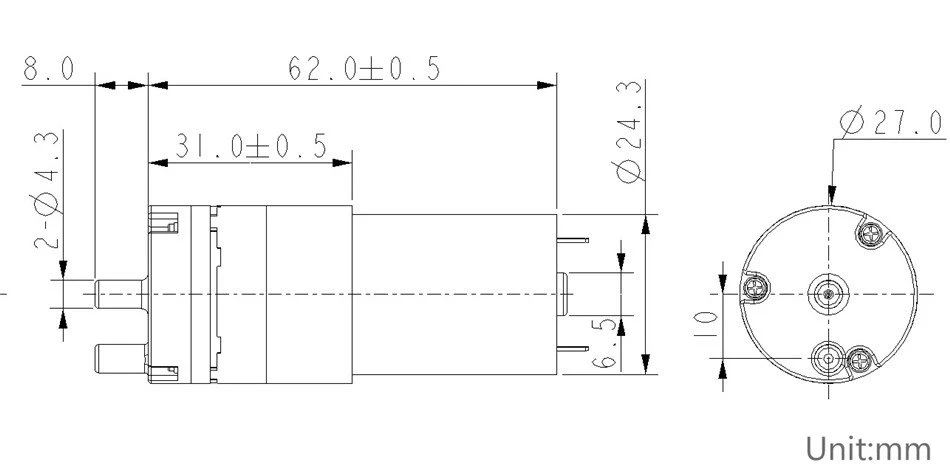

Khoom Loj
Cov lus qhia saum toj no yog rau kev siv nkaus xwb, cov qauv cua twj tso kua mis tshwj xeeb thiab tsis tuaj yeem hloov kho.
Khoom nta
Lub tshuab nqus tsev twj tso kua mis muaj kev ua haujlwm siab, tsis tshua muaj suab nrov, siab siab, lub neej ua haujlwm ntev thiab kub ua haujlwm. Qhov nruab nrab ua haujlwm yog roj, thiab lub voj voog ruaj khov yog qhov zoo. Lub twj tso kua mis muaj txaus nqus rau feem ntau DIY tej yaam num. Compact tsim, saj zawg zog customization, siab txaus, txij nkawm-dawb.
Khoom Paub meej
| 100 feem pua qhov tseeb duab |
|

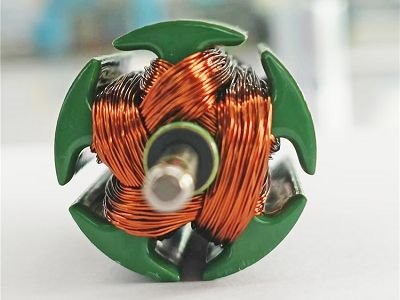

Rotor: Ua los ntawm cov hlau ntshiab tooj liab, hlau zoo core, qis calorific nqi thiab poob qis | Lub hau kawg: siv cov roj carbon txhuam zoo / hluav taws xob txhuam kom nce kev pab cuam lub neej thiab ua rau cov txuam degree siab dua | |
| 100 feem pua qhov tseeb duab |
|
Chassis: xaiv cov khoom zoo nrog siab hardness, kub tsis kam, corrosion tiv taus, hnav tsis kam thiab xeb kuj, nrog lub neej ua haujlwm ntev |
Lub tuam txhab muaj zog
Daim ntawv pov thawj khoom
Peb Cov Kev Pabcuam
1. Customized tsim ntawm motors nyob rau hauv ntau daim ntawv thov teb.
2. Ua kom tiav cov khoom tsim kev ntsuam xyuas thiab kev siv tau zoo.
3. nruj me ntsis tswj qhov zoo ntawm tag nrho R & D thiab cov txheej txheem ntau lawm.
4. Lub Hoobkas txais cov khoom siv nyiaj ntsuab thiab cov kab ntau lawm los txhim kho kev tsim khoom.
5. Muaj ntau tus kws tshaj lij kev lag luam muag khoom thoob ntiaj teb los muab cov kev pabcuam hloov tau yooj yim thiab kev tshaj lij.
Ib txhia ntawm peb cov neeg koom tes
Daim ntawv thov
Thauj Ntim
Yog tias koj muaj kev xav tau tshwj xeeb packing, thov hu rau peb ua ntej.
Yuav Cov Lus Qhia
Kev Them Nyiaj & Xa
Thov nco ntsoov:Tsis muaj lossis muaj nyob rau ntawm txhua tus qauv, nco ntsoov xyuas koj cov ntawv thov tshwj xeeb ua ntej yuav khoom Yog tias koj hloov lub twj tso kua mis, nco ntsoov xyuas tias lub cev muaj zog phim koj qhov loj thiab qhov ntev thiab txoj kab uas hla ua ntej yuav khoom.
