High-speed Ntev D-axis Airsoft AEG Tsav
Sab nraud txoj kab uas hla: 23mm,
Ntev: 74mm,
Ncej Ntev: 16 ± 0.5mm
Cov khoom siv hlau nplaum: ntub nias ferrite hlau nplaum
DC 11.1V: Ceev 36000 rpm
DC 7.4V: Ceev 24000 rpm
Hauj lwm lawm
Txheej txheem cej luam
Warranty | 3 hli-1xyoo |
Qhov Chaw Keeb Kwm | Guangdong, Suav teb |
Hom Lub Npe | Vshida |
Qauv nab npawb | VSD-480WA-7020G |
| Kev siv | Airsoft Kev Lag Luam |
| Hom | Airsoft lub cev muaj zog |
Qhov hnyav | TBD (qhov sib txawv qhov hnyav sib txawv) |
Cheebtsam | Diversifed |
Kev tsim kho | Permanent Magnet |
Kev sib hloov | Tsis txhuam |
Tiv thaiv Feature | Customized |
Kev ua tau zoo | 92 feem pua |
| Voltage ntau | Tsawg dua los yog sib npaug rau 36 V |
Khoom npe | Micro lub cev muaj zog |
Rated Voltage | 11.1 V |
Pib tam sim no | 95 A |
| Kuaj cov av noo | 45 feem pua -85 feem pua |
| Ntsuas kub | 20 degree ± 2 degree |
| Tsis muaj load ceev | 30000 ± 10% r / min |
Pib torque | 3 600g |
Cov nqe lus them nqi | 30 feem pua ua ntej, 70 feem pua tshuav |
Qhov ntev | 74 * 30 hli |
| thuam | ROHS |
Customized | Txais |
Tuam txhab Highlights
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 4500000 Daim / Daim Ib Hlis dc lub cev muaj zog
Product Description
Qhov nruab nrab ntawm ob lub hlis los tsim lub cev muaj zog tshiab
Khoom Parameter
Khoom Loj
Performance Curve
Cov lus qhia saum toj no tsuas yog siv rau kev siv xwb, hom thiab tsis muaj qhov tshwj xeeb micro airsoft lub cev muaj zog tuaj yeem hloov kho.
Khoom Feature
Kev kub ceev ntev D-axis Airsoft AEG lub cev muaj zog txais cov khoom siv hlau nplaum neodymium, tshav kub tsis kam, siab conductivity, kev ua haujlwm siab, siab torque, tsis tshua muaj suab nrov, siab tswj qhov tseeb, haum rau lub thib ob tiam gearbox VECTOR, thib ob tiam Alpha King lub thawv.
Khoom Paub meej
| 100 feem pua qhov tseeb duab |
|
Rotor: ntshiab tooj liab hlau qhov txhab, hlau zoo core, kub tsis kam, txo lub zog noj, txo tam sim no kuj | Bearings: D axis, yooj yim rau nruab, tsis yooj yim rau plam, txuag lub sijhawm teeb tsa (tuaj yeem kho raws li qhov xav tau) | |
| 100 feem pua qhov tseeb duab |
|

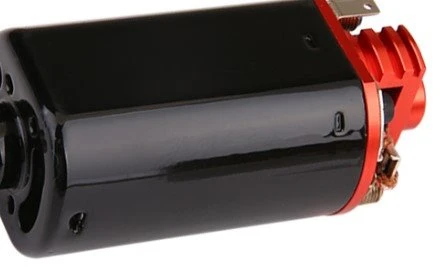

Lub hau kawg: siv cov ntaub ntawv zoo raw khoom los ua kom lub neej ua haujlwm, txhim kho lub rotor ntawm lub cev muaj zog, thiab muaj cov nyhuv tshav kub. | Chassis: Cov ntaub ntawv zoo nrog lub siab tawv, siab kub tsis kam, corrosion kuj, hnav tsis kam thiab xeb kuj raug xaiv, thiab kev pabcuam lub neej ntev dua |
Airsoft Tsav
Lub siab torque lub cev muaj zog yog qhov zoo rau kev hloov kho dua tshiab thiab cov phom thaub qab. Ntev npaum li lub roj teeb muaj lub zog, lub cev muaj zog tuaj yeem ua tau yooj yim tuav cov springs saum M150 vim nws tau nruab nrog cov hlau nplaum neodymium. Qhov tseem ceeb, qhov no yog qhov zoo siab-torque lub cev muaj zog nrog cov vents ntawm qhov kawg. Lub armature kuj muaj me me flaps, zoo li turbines, uas pab kom lub cev muaj zog txias.
Lub cev muaj zog muaj 16 TPA tig ib armature, ua rau lub cev muaj zog kuj ceev rau neodymium motors. Qhov no lub cev muaj zog excels nyob rau hauv high-ceev tsim, nce tus nqi ntawm hluav taws thaum txo cov lus teb piv rau ferrite motors. Nrog rau cov khoom seem (18: 1) nrog 11.1 V roj teeb, ROF yog ze rau 25 - 30 rps.
Lub tuam txhab muaj zog
Tsis siv neeg winding tshuab, stator tsis siv neeg stator tshuab, kawg npog tsis siv neeg stator tshuab, tsis siv neeg soldering tshuab thiab lwm yam khoom siv high-end
Kev ntsuam xyuas kev ntseeg tau thiab kev kuaj, kuaj suab nrov, ntsuas dej tsis zoo, kuaj lub neej, kuaj kev sib tsoo, kev sim cia, tshuaj tsuag ntsev, thiab lwm yam zoo lav rau koj lub cev muaj zog
Daim ntawv pov thawj khoom
Ib txhia ntawm peb cov neeg koom tes
Peb tau cog lus rau kev lag luam tsav tsheb ntau xyoo, npog feem ntau ntawm European thiab Asmeskas kev lag luam, thiab tos ntsoov los ua koj tus khub mus sij hawm ntev hauv Suav teb.
Daim ntawv thov
Daim ntawv thov ntau ntawm micro motors yog dav heev, thiab cov qauv tuaj yeem hloov kho rau ntau daim ntawv thov. Yog tias koj muaj kev xav tau tshwj xeeb, thov koj xav tiv tauj peb
Thauj Ntim
Shockproof ua npuas ncauj ntim, haum thawv loj.Yog tias koj muaj kev xav tau tshwj xeeb, thov hu rau peb ua ntej.
Yuav Cov Lus Qhia
Kev Them Nyiaj & Xa
FAQ
Q: 1. Hom motors koj tuaj yeem muab tau?
A: Tam sim no, peb tsuas yog muab cov motors micro thiab ntau cov DC iav motors, suav nrog spur gear motors, planetary gear motors, thiab worm gear motors. Tam sim no, peb lub tuam txhab tsom mus rau kev txhim kho ntau yam ntawm cov motors nrog ib qho hluav taws xob tsis pub dhau 36V. Lub cev txoj kab uas hla yog nruab nrab ntawm 10 thiab 75 mm.
Lo lus nug: 2. Koj puas tuaj yeem xa kuv daim ntawv teev nqi?
A: Rau tag nrho peb cov motors, lawv raug kho raws li qhov sib txawv ntawm lub neej, suab nrov, voltage, ncej, thiab lwm yam. Cov nqi kuj txawv raws li txhua xyoo.
Nqe Lus Nug: 3. Lub sij hawm ua ntej rau kev txiav txim li cas?
A: Rau kev txiav txim tsis tu ncua, lub sijhawm xa khoom tus qauv yog 3-25 hnub, lub sijhawm no tuaj yeem luv dua lossis ntev dua raws li cov qauv sib txawv, lub voj voog thiab ntau. Lub sijhawm los tsim cov qauv pwm tshiab yog 25 hnub.
Lo lus nug: 4. Koj puas tuaj yeem tsim lub cev muaj zog tshiab yog tias peb tuaj yeem muab tus nqi pwm?
Teb: Yog. Ua ntej ntawd, koj yuav tsum qhia peb cov ncauj lus kom ntxaws txog kev ua tau zoo, qhov loj me, txhua xyoo kom muaj nuj nqis, lub hom phiaj tus nqi, thiab lwm yam. Tom qab ntawd peb yuav ua qhov kev ntsuam xyuas thiab npaj cov ntaub ntawv pov thawj tom qab kev pom zoo.
Q: 5. Koj puas tuaj yeem xa kuv kuaj dawb?
Yog lawm, peb tuaj yeem thim koj cov nqi coj mus kuaj thaum koj tso qhov kev txiav txim.
