Ntev-axis High Speed DC Tsav Rau Airsoft
Sab nraud txoj kab uas hla: 23mm,
Ntev: 78.5mm,
Dav: 29.6mm
Chaw nres nkoj: Shenzhen, Suav
Muaj peev xwm tsim tau: 200, 000 lub cev muaj zog ib hnub
Cov nqe lus them nqi: L / C, T / T, D / P, Western Union, Paypal, Nyiaj Gram
Hauj lwm lawm
Txheej txheem cej luam
Warranty | 3 hli-1xyoo |
Qhov Chaw Keeb Kwm | Guangdong, Suav teb |
Hom Lub Npe | Vshida |
Qauv nab npawb | VSD-480WA-7022G |
| Kev siv | Airsoft Kev Lag Luam |
| Hom | Airsoft lub cev muaj zog |
Qhov hnyav | TBD (qhov sib txawv qhov hnyav sib txawv) |
Cheebtsam | Diversifed |
Kev tsim kho | Permanent Magnet |
Kev sib hloov | Tsis txhuam |
Tiv thaiv Feature | Customized |
| Voltage ntau | Tsawg dua los yog sib npaug rau 36 V |
Khoom npe | Micro lub cev muaj zog |
Rated Voltage | 11.1 V |
Tsis muaj load tam sim no | Tsawg dua lossis sib npaug li 5 A |
| Kuaj cov av noo | 45 feem pua -75 feem pua |
| Ntsuas kub | 20 degree ± 2 degree |
| Rated ceev | 31000 ± 8% r / min |
| Tso zis zog | 160W |
NTAU torque | Ntau dua lossis sib npaug li 2600 g.cm |
Cov nqe lus them nqi | 30 feem pua ua ntej, 70 feem pua tshuav |
Qhov ntev | 78.5 * 29.6 hli |
| thuam | CE |
Customized | Txais |
Tuam txhab Highlights
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 6000000 Daim / Daim Ib Hlis dc lub cev muaj zog
Product Description
Qhov nruab nrab ntawm ob lub hlis los tsim lub cev muaj zog tshiab
Khoom Parameter
| Cov neeg siv khoom | TSIS PUB | AT MAX EFFICIENCY | TSUM | |||||
| Qauv | HLUB | Tam sim no | HLUB | Tam sim no | TORQUE | EFF | Tam sim no | TORQUE |
| rpm ua | A | rpm ua | A | g.cm ua | feem pua | A | g.cm ua | |
| VSD-480WA-7022G | 20200 | 2.4 | 17200 | 15.1 | 495 | 70.7 | 95 | 3600 |
Khoom Loj

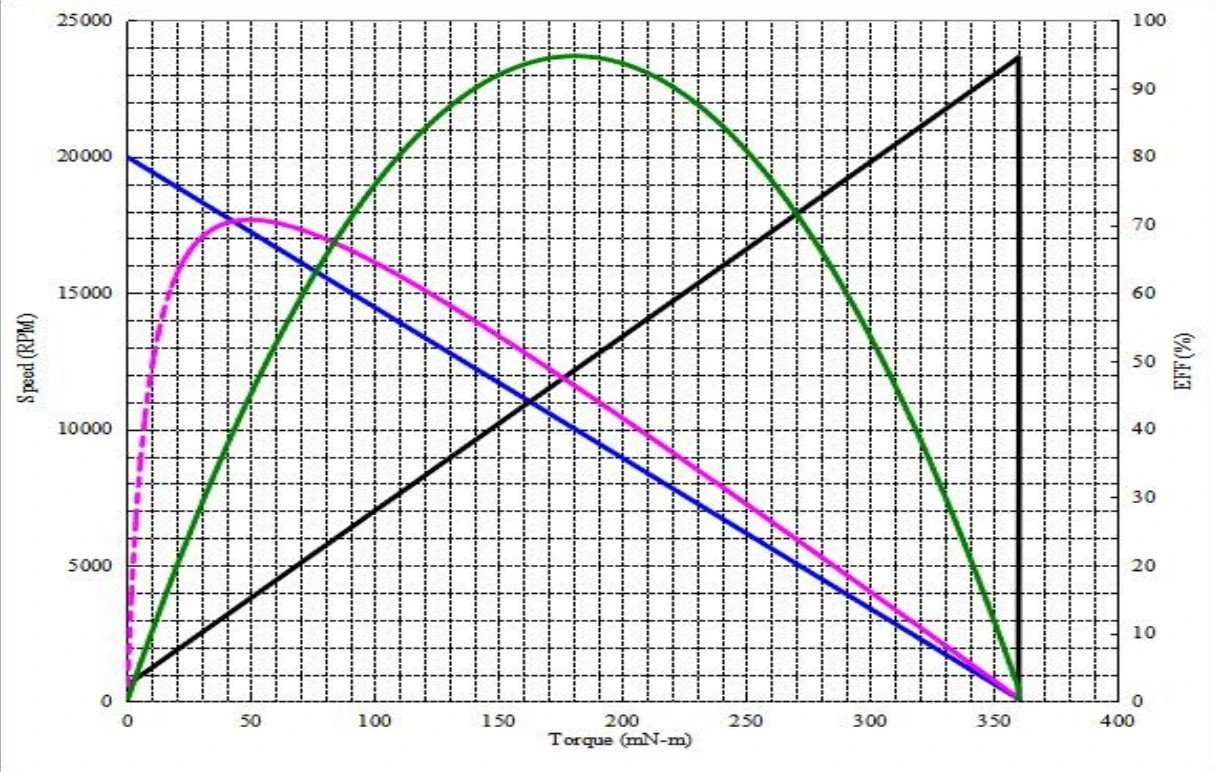

Performance Curve
Cov lus qhia saum toj no tsuas yog siv rau kev siv xwb, hom thiab tsis muaj qhov tshwj xeeb micro airsoft lub cev muaj zog tuaj yeem hloov kho.
Khoom Feature
Ntev-axis High Speed DC Tsav rau Airsoft Rotor kauj: 0.85mm kub kub tooj liab hlau-14T
Internal sib nqus zog ntawm bonded tsawg lub ntiaj teb: txog 1700Gs
Lub tsev thiab sab nraub qaum: muaj ob lub pob bearings
Txwv caij nplooj ntoos hlav: manganese steel 1.0 hlau txoj kab uas hla
Hlau bevel iav: D qhov, sab xauv ntsia hlau
Lub cev muaj zog plhaub nto: dub electroplating txheej txheem
Khoom Paub meej
| 100 feem pua qhov tseeb duab |
|
Rotor: ntshiab tooj liab hlau qhov txhab, hlau zoo core, kub tsis kam, txo lub zog noj, txo tam sim no kuj | Bearings: Round axis, yooj yim rau nruab, tsis yooj yim rau plam, txuag lub sijhawm teeb tsa (tuaj yeem kho raws li qhov xav tau) | |
| 100 feem pua qhov tseeb duab |
|
Lub hau kawg: siv cov ntaub ntawv zoo raw khoom los ua kom lub neej ua haujlwm, txhim kho lub rotor ntawm lub cev muaj zog, thiab muaj cov nyhuv tshav kub. | Chassis: Nto electroplating tuaj yeem nqa tawm, hauv qhov chaw hnyav, lub cev muaj zog tsis yooj yim rau xeb, tsis yooj yim rau oxidize, thiab lwm yam. |
Qhov zoo ntawm Airsoft Motor
1. Lub cev muaj zog: Tsis zoo li cov tsoos brushed motors, uas ua kom muaj cua sov thiab hnav tawm sai sai, brushless motors tsis tas yuav tsum tau nyob rau hauv kev sib cuag nrog lub stator, thiab yog 30-40 feem pua ntau npaum li brushed motors, yog li ncua lawv. kev pabcuam lub neej. 10x ua.
2. Ntse, meej thiab muaj kev nyab xeeb: Siv lub tshuab hluav taws xob tswj nrog CPU thiab tsis tshua muaj kev tiv thaiv MOSFET, kev ua haujlwm lub cev muaj zog yog tswj hwm, thiab nws cov kev hloov pauv tau zoo yog ob zaug ntawm cov tsoos motors. Tsis tas li ntawd, kev tswj xyuas Circuit Court muab qhov tsis tshua muaj hluav taws xob, overheating thiab overload tiv thaiv rau lub roj teeb.
3. Aluminium qauv: Ua los ntawm CNC machined txhuas, qhov saum npoo yog anodized los txhim kho cua sov dissipation.
4. Ultra-Fast Trigger Response: Ntev-axis High Speed DC Tsav rau Airsoft lub cev muaj zog yog tsim los tiv taus 7.4V thiab 11.1V Li-polymer roj teeb, thiab tuaj yeem muab tau txog 32, 000rpm thiab 48,{ {11}}rpm hauv qab 7.4V thiab 11.1V roj teeb.
5. Direct plug-in: tsuas yog hloov tus thawj carbon txhuam lub cev muaj zog, thiab koj tuaj yeem pib siv nws yam tsis muaj kev hloov kho.
6.Application area: electronic door locks, smart switches, steam hair straighteners (dej dav hlau plaub hau straighteners), daim ntawv lo peelers, ntse hnav, ntse tshuab 3D tshuab luam ntawv khoom, plaub hau curlers, kev nyab xeeb, hluav taws xob screwdrivers, zaub stands, robots, khoom ua si tsheb , nkoj, khoom zoo nkauj, khoom siv hluav taws xob, thiab lwm yam.
Lub tuam txhab muaj zog
Tsis siv neeg winding tshuab, stator tsis siv neeg stator tshuab, kawg npog tsis siv neeg stator tshuab, tsis siv neeg soldering tshuab thiab lwm yam khoom siv high-end
Kev ntsuam xyuas kev ntseeg tau thiab kev kuaj, kuaj suab nrov, ntsuas dej tsis zoo, kuaj lub neej, kuaj kev sib tsoo, kev sim cia, tshuaj tsuag ntsev, thiab lwm yam zoo lav rau koj lub cev muaj zog
Daim ntawv pov thawj khoom
Ib txhia ntawm peb cov neeg koom tes
Peb tau cog lus rau kev lag luam tsav tsheb ntau xyoo, npog feem ntau ntawm European thiab Asmeskas kev lag luam, thiab tos ntsoov los ua koj tus khub mus sij hawm ntev hauv Suav teb.
Daim ntawv thov
Daim ntawv thov ntau ntawm micro motors yog dav heev, thiab cov qauv tuaj yeem hloov kho rau ntau daim ntawv thov. Yog tias koj muaj kev xav tau tshwj xeeb, thov koj xav tiv tauj peb
Thauj Ntim
Pem hauv ntej ntim ntawm lub thawv ua npuas ncauj: 350 * 265 * 280mm
Thawv sab nrauv: 365 * 275 * 320mm
Qhov hnyav 16.7kg / 350pcs
Yuav Cov Lus Qhia
Kev Them Nyiaj & Xa
Cov qauv sib txawv ntawm micro-motors muaj qhov sib txawv ceev thiab lub zog. Yog tias koj xav tau lwm txoj haujlwm, thov hu rau cov chaw tsim khoom thiab teb rau koj qhov kev nug hauv 24 teev.Shockproof ua npuas ncauj ntim, haum thawv loj.Yog tias koj muaj kev xav tau tshwj xeeb, thov hu rau peb ua ntej.
