12V 545 Brushed Tsav Kev kub ceev
Ncej txuas: 15.5 ± 0.5mm,
axial clearance: 0 05-0.5 hli,
Ntev: 50mm,
Dav: 37.5mm
12V 545 brushed lub cev muaj zog siab ceev yog dav siv hauv kev kho mob, kev zoo nkauj, kev saib xyuas kev noj qab haus huv ntawm niam thiab menyuam, lub tsev ntse, tsheb, chaw ua haujlwm, qauv dav hlau, khoom ua si thiab qauv, neeg hlau thiab lwm yam. Peb muaj ntau xyoo ntawm kev paub nyob rau hauv micro-motor ntau lawm thiab kev tshawb fawb thiab kev loj hlob, escort koj cov khoom, thiab muab cov neeg muas zaub nrog saj zawg zog thiab kev customized kev pab cuam.
Hauj lwm lawm
Txheej txheem cej luam
Warranty | 3 lub hlis - 1 xyoo |
Qhov Chaw Keeb Kwm | Guangdong, Suav teb |
Hom Lub Npe | Vshida |
Qauv nab npawb | VRK-545SA |
Kev siv | Cov khoom siv hauv tsev, tsheb, nws pib caij nkoj, vibrators, massagers, plaub hau tshuab, twj tso kua mis, cua twj, kev kho mob, kev lag luam, kev tu tus kheej, neeg hlau, thiab lwm yam. |
Hom | Brushed dc lub cev muaj zog |
Qhov hnyav | TBD (qhov sib txawv qhov hnyav sib txawv) |
Cheebtsam | Diversifed |
Kev tsim kho | Permanent Magnet |
Kev sib hloov | Txhuam |
Tiv thaiv Feature | Customized |
Kev ua tau zoo | 80 feem pua |
Rated zog | 4.973 (W) |
Rated ceev | 3600 ± 10% (rpm) |
Rated Voltage | 12 (V) |
Pib tam sim no | 3.454 A |
Pib torque | 90.050 (NM) |
| Cov kabmob | Pob bearing lossis roj-impregnated bearing |
Qhov ntev | 50 * 37.5 hli |
Cov nqe lus them nqi | 30 feem pua ua ntej, 70 feem pua tshuav |
Daim ntawv pov thawj | IATF 16949 2016 |
Customized | Txais |
Tuam txhab Highlights
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 4500000 Daim / Daim Ib Hlis dc lub cev muaj zog
Ntim & Xa
Ntim Cov Lus Qhia
Micro motor packing: Carton Box Peb tus qauv shipping cim rau txhua tus qauv yog raws li hauv qab no Q'ty: pcs NW: kgs GW: kgs Meas.: L * H * W cm Koj tus kheej shipping qhia yog txais tos.
Chaw nres nkoj: Shenzhen / HongKong
Product Description
Qhov nruab nrab ntawm ob lub hlis los tsim lub cev muaj zog tshiab
Khoom Parameter
VOLTAGE | TSIS PUB | NTAWM MAXIMUM EFFICIENCY | Pib | ||||||
Kev ua haujlwm RANGE | NOMINAL V | HLUB r / min | Tam sim no A | HLUB r / min | Tam sim no A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | Tam sim no A |
8-15 | 12 | 4244 | 0.10 | 3627 | 0.588 | 13.094 | 4.973 | 90.050 | 3.454 |
Khoom Loj

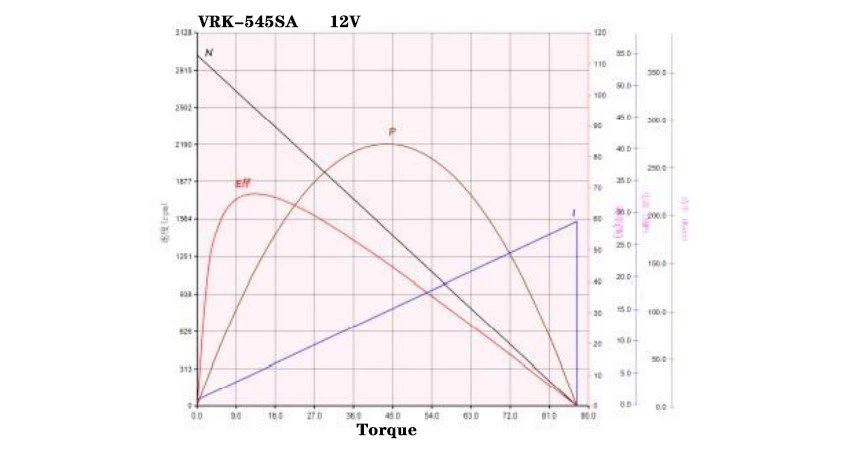

Performance Curve
Cov lus qhia saum toj no tsuas yog siv rau kev siv xwb, hom thiab qhov tsis muaj qhov tshwj xeeb brushed dc lub cev muaj zog tuaj yeem hloov kho
Khoom nta
Cov lus teb zoo ceev, zoo braking nyhuv, siab tswj qhov tseeb, kuj txawj siv technology, tsis tshua muaj nqi, tsis tshua muaj ceev, zoo heev torque kev ua tau zoo, loj torque, yooj yim thiab yooj yim ceev kev tswj, customized technical data (tso zis ncej, ceev, voltage).
Khoom Paub meej
| 100 feem pua qhov tseeb duab |
|

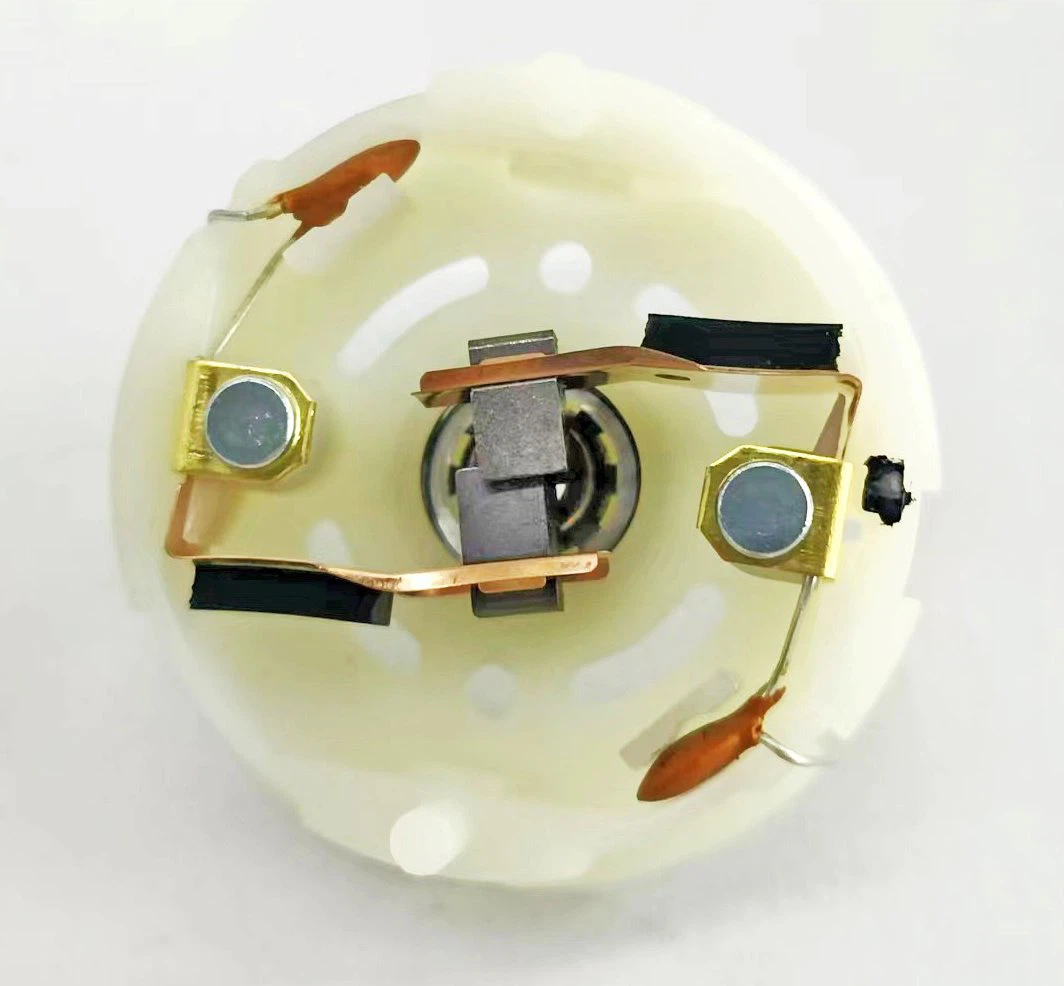

Rotor: ntshiab tooj liab hlau qhov txhab, hlau zoo core, kub tsis kam, txo lub zog poob, txo tam sim no tsis kam | Lub hau kawg: cov roj carbon txhuam zoo / txhuam hluav taws xob yog siv los ua kom lub neej ua haujlwm tau zoo thiab muaj qhov sib txuam ntau dua | |
| 100 feem pua qhov tseeb duab |
|
Bearing: xaiv hom kabmob, zoo yog guaranteed (cov kabmob tuaj yeem kho tau) | Chassis: xaiv cov ntaub ntawv zoo nrog cov hardness siab, corrosion kuj, hnav tsis kam thiab xeb kuj, thiab muaj lub neej ntev kev pab cuam. |
Lub tuam txhab muaj zog
Daim ntawv pov thawj khoom
Ib txhia ntawm peb cov neeg koom tes
Peb tau cog lus rau kev lag luam tsav tsheb ntau xyoo, npog feem ntau ntawm European thiab Asmeskas kev lag luam, thiab tos ntsoov los ua koj tus khub mus sij hawm ntev hauv Suav teb.
Peb Qhov Zoo
1. Lub 545SA txhuam lub cev muaj zog yog ua los ntawm cov ntaub ntawv zoo, thiab cov ntshiab tooj liab hlau core yog qhov txhab, uas yog ruaj khov, yooj yim rau xaim thiab nruab, thiab tsis yooj yim rau tawg. Fashionable thiab zoo nkauj, yooj yim thiab elegant, zoo gloss.
2. Daim ntawv thov: 12v lub cev muaj zog yog tsim rau cov twj tso kua mis, cua twj, khoom siv hauv tsev, tshuab plaub hau, massagers, vibrators, khoom siv tsheb, tsis siv neeg tsav nkoj, thiab lwm yam.
3. Parameters: tso zis hwj chim: 5-60W, rated voltage: 12V, voltage range: 8-15V, tso zis ncej, ceev, voltage, thiab lwm yam. tuaj yeem kho raws li cov neeg siv khoom xav tau.
4. Teb rau koj qhov kev nug tsis pub dhau 24 teev, tuaj yeem muab cov qauv tsim kho rau cov neeg siv khoom, peb lub tuam txhab tau txais kev cob qhia zoo yuav muab kev daws teeb meem rau koj, kev pabcuam zoo tom qab muag thiab kev txhawb nqa.
5. Hauv kev koom tes, nws muaj qhov zoo ntawm kev ua haujlwm yooj yim, kev pabcuam raws sijhawm thiab kev pabcuam hauv qhov chaw, thiab muab kev pabcuam zoo tshaj plaws ua ntej muag thiab kev pabcuam tomqab muag thiab kev pabcuam. Nws yog ib tug tsis tshua muaj kev koom tes nyob rau hauv lub sij hawm ntev ntawm feem ntau ntawm manufacturers.
Daim ntawv thov
Thauj Ntim
Shockproof ua npuas ncauj ntim, haum thawv loj.Yog tias koj muaj kev xav tau tshwj xeeb, thov hu rau peb ua ntej.
Yuav Cov Lus Qhia
Kev Them Nyiaj & Xa
Peb pib li cas?
Peb lub Hoobkas tau cog lus los muab cov tshuab zoo micro motors rau cov neeg siv khoom thoob ntiaj teb. Peb lub hom phiaj yog ua kom cov neeg siv khoom txaus siab thiab kev paub dhau los los ntawm kev ua kom cov neeg siv khoom tuaj yeem yuav cov khoom lag luam zoo ntawm tus nqi tsim nyog.
Peb cov khoom puas zoo?
Peb muaj cov kws tshaj lij kev txhim kho thiab kev tshuaj xyuas zoo los xyuas kom meej tias txhua yam khoom hauv lub tsev khaws khoom yog cov khoom tsim nyog. Cov neeg mob thiab cov kws tshaj lij tuaj yeem daws txhua yam teeb meem kev muag khoom.
Pab pawg tsim khoom muaj ntau tshaj 500 tus neeg ua haujlwm, nrog rau qib siab ntawm automation thiab muaj peev xwm tsim tau txhua xyoo ntawm 60 lab units. Peb kuj muaj cov kws tshaj lij R & D pab neeg, cov neeg siv khoom-taw qhia, zoo li lub hauv paus, thev naus laus zis raws li kev tsav tsheb, muab cov neeg siv khoom hloov pauv thiab cov kev pabcuam tshaj lij kom ua tiav cov txiaj ntsig sib luag thiab yeej-yeej cov txiaj ntsig.
