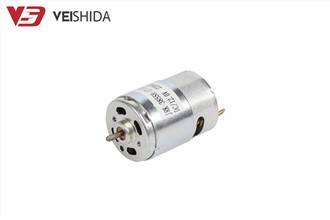

Mini 380 Carbon Txhuam Tsav
Axial clearance: 0 05-0.2 hli,
Ntev: 37.8,
dav: 28.9 mm
Mini 380 Carbon Txhuam Tsav Tsav tau dav siv hauv kev kho mob, kev zoo nkauj, kev saib xyuas kev noj qab haus huv ntawm niam thiab menyuam, tsev ntse, tsheb, chaw ua haujlwm, qauv dav hlau, khoom ua si thiab qauv, neeg hlau thiab lwm yam haujlwm. Peb muaj ntau xyoo ntawm kev paub nyob rau hauv micro-motor ntau lawm thiab kev tshawb fawb thiab kev loj hlob, escort koj cov khoom, thiab muab cov neeg muas zaub nrog saj zawg zog thiab kev customized kev pab cuam.
Hauj lwm lawm
Txheej txheem cej luam
Warranty | 3 lub hlis - 1 xyoo |
Qhov Chaw Keeb Kwm | Guangdong, Suav teb |
Hom Lub Npe | Vshida |
Qauv nab npawb | VRK-380SH |
Kev siv | Cov khoom siv hauv tsev, cov khoom siv hauv chav ua noj, cov twj tso kua mis, cov twj tso kua mis, cov twj siv hluav taws xob, tsheb, cov neeg hlau, cov cuab yeej siv hluav taws xob, kev saib xyuas tus kheej, cov twj siv hluav taws xob, kev lag luam, kev kho mob, khoom siv dag zog, thiab lwm yam. |
Hom | Brushed dc lub cev muaj zog |
Qhov hnyav | TBD (qhov sib txawv qhov hnyav sib txawv) |
Cheebtsam | Diversifed |
Kev tsim kho | Permanent Magnet |
Kev sib hloov | Txhuam |
Tiv thaiv Feature | Customized |
| Voltage ntau | 1-30 V |
| Cov kabmob | Roj-impregnated lossis pob bearings (tuaj yeem kho tau) |
Kev ua tau zoo | 83 feem pua |
Rated zog | 4.783 (W) |
Rated ceev | 5500 (rpm) |
| Rated tam sim no | 0.65 A |
Rated Voltage | 12 (V) |
Pib tam sim no | 2.348 A |
Rated torque | 8.293 (NM) |
Qhov ntev | 37.8 * 28.9 hli |
Cov nqe lus them nqi | 30 feem pua ua ntej, 70 feem pua tshuav |
Daim ntawv pov thawj | IATF 16949 2016 |
Customized | Txais |
Tuam txhab Highlights
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 4500000 Daim / Daim Ib Hlis dc lub cev muaj zog
Ntim & Xa
Ntim Cov Lus Qhia
Micro motor packing: Carton Box Peb tus qauv shipping cim rau txhua tus qauv yog raws li hauv qab no Q'ty: pcs NW: kgs GW: kgs Meas.: L * H * W cm Koj tus kheej shipping qhia yog txais tos.
Chaw nres nkoj: Shenzhen / HongKong
Product Description
Qhov nruab nrab ntawm ob lub hlis los tsim lub cev muaj zog tshiab
Khoom Parameter
VOLTAGE | TSIS PUB | NTAWM MAXIMUM EFFICIENCY | Pib | ||||||
Kev ua haujlwm RANGE | NOMINAL V | HLUB r / min | Tam sim no A | HLUB r / min | Tam sim no A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | Tam sim no A |
| 1-3 | 2.4 | 6800 | 0.650 | 5507 | 2.786 | 8.293 | 4.783 | 43.617 | 11.792 |
10-14 | 12 | 4621 | 0.134 | 3735 | 0.565 | 5.00 | 1.957 | 26.10 | 2.348 |
| 22-26 | 24 | 7700 | 0.063 | 6487 | 0.337 | 7.85 | 5.331 | 49.82 | 0.063 |
Khoom Loj
Performance Curve
Cov lus qhia saum toj no tsuas yog siv rau kev siv xwb, hom thiab qhov tsis muaj qhov tshwj xeeb brushed dc lub cev muaj zog tuaj yeem hloov kho
Khoom nta
Kev ua haujlwm ruaj khov, kev sib kis loj torque, kev ua haujlwm siab, siv tau yooj yim, kev sib kis ruaj khov, lub neej ntev, tsis tshua muaj suab nrov, me me, tsis tshua muaj nqi, cov ntaub ntawv kho kom haum (tso zis ncej, ceev, voltage, thiab lwm yam)
Khoom Paub meej
| 100 feem pua qhov tseeb duab |
|
Rotor: ntshiab tooj liab hlau qhov txhab, hlau zoo core, kub tsis kam, txo lub zog poob, txo tam sim no tsis kam | Lub hau kawg: cov roj carbon txhuam zoo / txhuam hluav taws xob yog siv los ua kom lub neej ua haujlwm tau zoo thiab muaj qhov sib txuam ntau dua | |
| 100 feem pua qhov tseeb duab |
|
Bearing: xaiv hom kabmob, zoo yog guaranteed (cov kabmob tuaj yeem kho tau) | Chassis: xaiv cov ntaub ntawv zoo nrog cov hardness siab, corrosion kuj, hnav tsis kam thiab xeb kuj, thiab muaj lub neej ntev kev pab cuam. |
Peb Qhov Zoo
1. 380SH brushed DC motors yog dav siv nyob rau hauv cov khoom siv hauv chav ua noj, cov twj tso kua mis tsis muaj cua tshuab, cov cuab yeej hluav taws xob, cov cuab yeej siv hluav taws xob, cov twj siv hluav taws xob, cov khoom siv hauv tsev, thiab lwm yam, nrog rau ntau yam kev siv.
2. Lub rotor txais cov txheej txheem txheej, cov khoom ua tau zoo dua, hnav-tiv taus thiab ruaj khov dua; siv cov pobzeb sib nqus muaj zog, lub zog ntau txaus, thiab kev pabcuam lub neej ntev;
3. Peb muaj ntau tshaj 500 tus neeg ua haujlwm tau txais kev cob qhia zoo, nrog kev pab los ntawm cov khoom siv hluav taws xob niaj hnub no, cov nqi tsim tawm txhua hli ntawm lub cev muaj zog tshaj 5 lab units.
4. One-stop service, one-stop service from production to shipping. Quality: Pab pawg kws tshaj lij engineer nruj tswj hwm cov khoom zoo. Productivity: Cov khoom siv tsis siv neeg siab tuaj yeem txhawb nqa koj cov xaj ntau. Txhua yam ntawm koj tus qauv tsim yog txais tos.
5. Peb lav tias tag nrho cov lus nug yuav teb tsis pub dhau 12 teev, 95 ntxiv rau feem pua ntawm kev txiav txim tuaj yeem xa tuaj raws sijhawm thiab cov lus tsis txaus siab tuaj yeem daws tsis pub dhau 7 hnub.
6. Muab kev pabcuam OEM thiab ODM rau cov neeg siv khoom
Lub tuam txhab muaj zog
Daim ntawv pov thawj khoom
Ib txhia ntawm peb cov neeg koom tes
Peb tau cog lus rau kev lag luam tsav tsheb ntau xyoo, npog feem ntau ntawm European thiab Asmeskas kev lag luam, thiab tos ntsoov los ua koj tus khub mus sij hawm ntev hauv Suav teb.
Daim ntawv thov
Thauj Ntim
Shockproof ua npuas ncauj ntim, haum thawv loj.Yog tias koj muaj kev xav tau tshwj xeeb, thov hu rau peb ua ntej.
Yuav Cov Lus Qhia
Kev Them Nyiaj & Xa
Hnav-resistant carbon hlau txhuam
High-zoo tooj liab tub ntxhais kub kub insulating txheej rotor
Ferrite hlau nplaum, muaj zog
Nruab nrog lub nplhaib flux thiab kiv cua txias (raws li cov neeg siv khoom xav tau)
Nco tseg:
(1) Parameters yog ntsuas raws li cov qauv ntawm lub cev muaj zog.
(2) Kev ua yeeb yam sib txawv tuaj yeem raug kho raws li cov neeg siv khoom xav tau.
(3) Hnub xa khoom tshwj xeeb ntawm lub cev muaj zog yuav raug sib tham ua ntej kev pom zoo.
Yog tias koj xav tau cov ntaub ntawv tshwj xeeb ntawm lwm lub cev muaj zog, thov hu rau peb thiab peb tuaj yeem ua cov lus pom zoo kom ntseeg tau tias koj pom cov khoom tsim nyog rau koj. xav kom koj lub neej zoo siab!
