Micro DC Vibration Tsav Rau Cov Khoom Ua Si
Sab nraud txoj kab uas hla: 20mm,
Ntev: 25mm,
Ncej taub: 2mm;
Axial Clearance: 6 ± 0.5mm;
Kev taw qhia ntawm kev sib hloov: CW / CCW;
Dav siv dav hauv kev kho mob, kev zoo nkauj, kev saib xyuas kev noj qab haus huv niam thiab menyuam, tsev ntse, drones, tsheb, chaw ua haujlwm, qauv dav hlau, qauv khoom ua si, cov cuab yeej hluav taws xob, robots thiab lwm yam. Peb muaj 15 xyoo ntawm kev paub nyob rau hauv micro-motor ntau lawm thiab kev loj hlob, muab cov neeg muas zaub nrog saj zawg zog thiab kev pab customized.
Hauj lwm lawm
Micro dc vibration lub cev muaj zog rau cov khoom ua si yog ua los ntawm hlau; qhov hnyav: txog 45 grams; rated ceev: 8000rpm; Lub zog hluav taws xob: 1.7W; ntsuas tam sim no: 0.152A; rated voltage: 1.5-6.0V; Rated torque: 1.63NM; duab plaub, Nrog 2 hli txoj kab uas hla ncej thiab 2 lub davhlau ya nyob twg connectors. Kev hloov zoo rau rusty lossis puas DC motors ntawm koj lub tshuab. Nws yog ib qho khoom zoo rau kev hloov DC vibration micro motors rau cov chaw taws teeb tswj cov qauv hluav taws xob cov khoom ua si xws li cov qauv dav hlau thiab cov nyoob hoom qav taub. Kev ua haujlwm siab, tsis tshua muaj suab nrov, dav siv hauv cov tshuab cua txias, cov khoom siv hauv tsev, cov twj tso kua mis, cov twj tso kua mis, shavers, automation khoom, thiab lwm yam.
Tuam txhab Highlights
Txheej txheem cej luam
Warranty | 3 hli-1xyoo |
Qhov Chaw Keeb Kwm | Shenzhen, Suav teb |
Hom Lub Npe | Vshida |
| Qauv | VFF--130 |
| Kev siv | Cov khoom ua si hluav taws xob, lub tshuab plaub hau, lub tshuab nqus tsev, cov cuab yeej hluav taws xob, lub tsheb kav hlau txais xov, cov khoom siv hauv tsev, cov khoom siv sib txuas lus, cov khoom ua si pwm, tshuab zaws, thiab lwm yam. |
Hom | Txhuam DC Tsav |
Qhov hnyav | TBD (qhov sib txawv qhov hnyav sib txawv) |
Cheebtsam | Diversifed |
Kev tsim kho | Permanent Magnet |
Kev sib hloov | Txhuam |
Tiv thaiv Feature | Customized |
Kev ua tau zoo | 82 feem pua |
| Voltage ntau | Tsawg dua los yog sib npaug rau 36V |
Khoom npe | Micro txhuam DC Tsav |
Rated Voltage | 6 V |
| Hwj chim | 0.1-3.0 W |
| Tsis load Ceev | 8000 ± 10% rpm |
| Tsis Muaj Load Tam Sim No | 0.152 A |
| Pib Torque | 1,58mn wb |
| Cov nqe lus them nqi | 30 feem pua ua ntej, 70 feem pua tshuav |
| thuam | TIAB SA 16949 |
Customized | Txais |
Product Description
Khoom Parameter
VOLTAGE | TSIS PUB | NTAWM MAXIMUM EFFICIENCY | Pib | ||||||
Ua haujlwm RANGE | NOMINAL V | HLUB r / min | Tam sim no A | HLUB r / min | Tam sim no A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | Tam sim no A |
| 2-6 | 3.7 | 8635 | 0.152 | 6824 | 0.573 | 1.58 | 1.13 | 7.54 | 2.158 |
| 4-8 | 6 | 7216 | 0.049 | 5865 | 0.213 | 1.22 | 0.75 | 6.52 | 0.923 |
Lub cev muaj zog
Customized khoom: tso zis ncej, leads, lead terminals, ceev, hwj chim, thiab lwm yam.

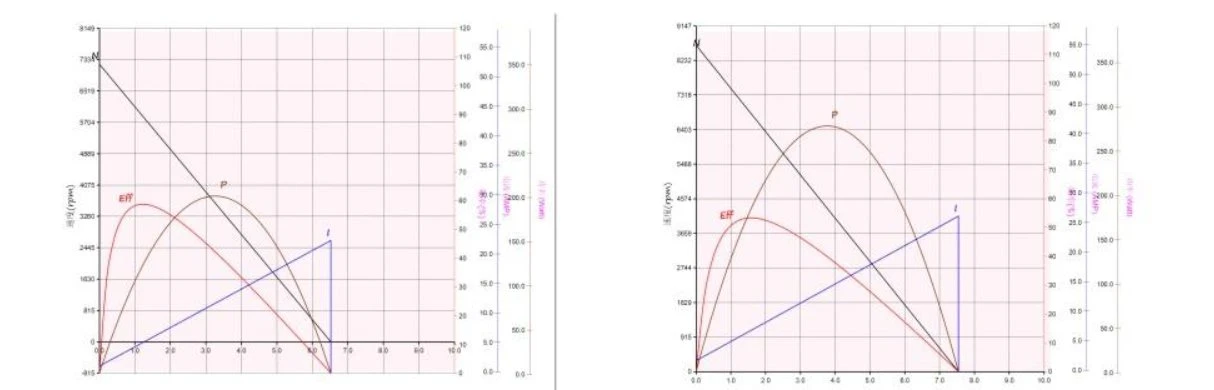

Motor Performance Curve
Cov ntaub ntawv saum toj no tsuas yog muab raws li kev qhia; Cov neeg siv khoom muaj kev ywj pheej los hloov kho thiab hloov kho qhov tseeb geared lub cev muaj zog kom haum rau lawv cov kev xav tau.
Khoom Paub meej
| 100 feem pua qhov tseeb duab |
|
Rotor:Lub kauj yog ua los ntawm cov tooj liab ntshiab, uas muaj cov khoom zoo heev xws li lub zog siab, tsis muaj zog, muaj zog hluav taws xob conductivity, tsis tshua muaj hluav taws xob, thiab kev ua haujlwm siab. | Kawg cap: Kev xaim thiab ntau yam kev ua haujlwm vuam yog ua kom yooj yim dua los ntawm ob lub txhuam txhuam hauv qab. | |
| 100 feem pua qhov tseeb duab |
|
Cov kabmob: Ib qho kev sib txhuam ntxiv, kev sib kis tau yooj yim dua, thiab kev sib txuas yooj yim dua thiab nrawm yog qhov tshwm sim ntawm CNC ua ntawm lub hauv paus axis. | Chassis: Nws muaj kev ua haujlwm ruaj khov, tiv thaiv corrosion, thiab tsis yog xeb sai vim nws yog tsim los ntawm cov khoom zoo txhuas. |
Hais txog yam khoom no
1. Ua los ntawm cov hlau tsis muaj steel, nrog cov khoom siv hluav taws xob tsawg, tsis tshua muaj tam sim no, thiab kev ua haujlwm siab, thiab nrog rau seamless, du nto.
2. ruaj khov magnetic teb, zoo kub kuj, thiab nyuaj.
3. Cov tub ntxhais hlau ntawm micro dc vibration lub cev muaj zog rau cov khoom ua si yog ua los ntawm silicon tooj liab, cov khoom tiav yog ib txwm insulated, lub kauj yog tawv thiab tsis sib xws, lub zog loj, thiab kev ua haujlwm ruaj khov.
4. Nrog rau qhov kub thiab txias tsis kam, tsis muaj suab nrov, thiab lub zog tseem ceeb, ob rab koob txhuam hniav tau muab faib sib npaug ntawm tus ncej ncej.
5. Lub nraub qaum cov khoom tiav specification yog zoo heev; qhov kam rau ua yog tsawg, thiab cov degree ntawm bearing txuam yog zoo.
6. Feem ntau pom muaj nyob rau hauv cov khoom ua si hluav taws xob, tshuab plaub hau, lub tshuab nqus tsev, cov cuab yeej hluav taws xob, lub kav hlau txais xov tsheb, cov khoom siv hauv tsev, cov khoom siv sib txuas lus, cov khoom ua si pwm, thiab cov rooj zaum zaws, thiab lwm yam.
Lub tuam txhab muaj zog
Lub Tuam Txhab Vshida Micro Tsav siv cov tswv yim kev tswj hwm kev tsim khoom lag luam ntxiv rau cov kws tshaj lij kev tshawb fawb, kev tsim kho, thiab cov cuab yeej tsim khoom. tau ua tiav kev lees paub rau cov kev tswj xyuas zoo IATF16949: 2016 thiab ISO 9001: 2015. Lub tuam txhab cov chaw tsim khoom tam sim no, nrog thaj tsam ntawm ntau dua 10, 000 square metres, ntau tshaj 500 tus neeg ua haujlwm, ntau tshaj 300 cov khoom siv automation, ntau tshaj 40 cov kab sib dhos, 30 R&D cov neeg ua haujlwm, thiab cov khoom tsim tawm txhua hnub ntawm txog 200, 000 lub cev muaj zog, yog nruab los ua ob qho kev txiav txim loj thiab cov neeg thov tshwj xeeb.
Peb cov kev xaiv dav dav ntawm cov cuab yeej siv hluav taws xob suav nrog cov cuab yeej siv hluav taws xob xws li tsis siv neeg windings, tsis siv neeg stators, thiab tsis siv neeg kawg cap stators.
Koj lub cev muaj zog raug xa mus rau lub chaw kuaj sim ua ntej lawv tawm hauv cov chaw tsim khoom kom muaj kev lees paub zoo thiab kev ntsuam xyuas kev ntseeg siab, nrog rau cov suab nrov, kev tiv thaiv huab cua, kev ua neej ntev, kev sib tsoo, kev cia, thiab lwm yam kev sim.
Daim ntawv pov thawj khoom
Vshida Micro Motor tau ua tiav ntau daim ntawv pov thawj thoob ntiaj teb thiab cov ntawv pov thawj patent txhawm rau ua kom tau raws li qhov xav tau ntawm cov neeg siv khoom rau ntau daim ntawv pov thawj.
Vim li cas thiaj xaiv peb?
Ib txhia ntawm peb cov neeg koom tes
Peb muaj 15 xyoo ntawm kev tsim lub cev muaj zog thiab R & D kev paub, pab pawg R & D ywj siab, thiab kev sim-thiab-tsim txheej txheem tsim. Thaum koj txuas nrog peb, koj yuav ua li ntawd nrog lub Hoobkas uas xav txog txhua kauj ruam thiab tsim cov khoom zoo. Txhua ntawm peb lub cev muaj zog dhau los ntawm kev xav tau kev sim ntxiv kom ntseeg tau tias lawv cov khoom zoo.
Daim ntawv thov
Micro motors muaj ntau yam zoo heev thiab tuaj yeem tsim rau ntau yam kev thov. Yog tias koj muaj qee qhov tshwj xeeb xav tau, thov hu rau peb.
Thauj Ntim
Muaj peev xwm muab khoom:
Txhua hnub, ntau tshaj 200000 DC motors tau siv.
Ua npuas ncauj hauv qhov ntev yog 350x265x280mm.
Qhov loj me ntawm lub thawv sab nrauv: 365 * 275 * 320mm.
350 pcs; 16,7kg ib
Yog tias koj xav tau lwm yam ntim tshwj xeeb, thov hu rau peb.
Kev Them Nyiaj & Xa
Cov lus qhia rau kev siv Micro DC Vibration Tsav rau Cov Khoom Ua Si
(1) Cov txheej txheem xaim: Lub thawv sib txuas muaj daim duab kab hluav taws xob (lossis muaj cov cim xaim ntawm qhov txuas ntawm txhua lub cev muaj zog). Lus Cim: Lub cev muaj zog yuav tsum tau txuas rau hauv lub kaw lus kaw raws li qhov polarity qhia ntawm daim ntawv qhia. Kev sib txuas tsis zoo tuaj yeem ua rau commutator flashover, lub cev muaj zog demagnetization, thiab txawm tias lub cev muaj zog dhau.
(2) Bearings: Nyob rau hauv ib txwm ua haujlwm, tag nrho cov motors ntiav tshwj xeeb ib-kab radial pob bearings nrog ob txoj kev tiv thaiv thiab lubrication mus tas li.
(3) Kev thauj khoom thiab cua ntws muaj feem cuam tshuam rau cov txhuam hniav 'lifespan. Kev hnav khaub ncaws ntau tshaj 1000 teev ua haujlwm yog 5MM thaum huab cua noo nyob nruab nrab ntawm 6 txog 12 grams dej ib lub cubic meter. Txawm tias thaum lub load yog ib txwm, tus nqi yuav hloov li ntawm 100 feem pua, vim hais tias cov huab cua humidity los yog cov pa phem nyob rau hauv lub circulating cua muaj ib tug tseem ceeb cuam tshuam rau cov yam ntxwv ntawm lub reversing feem.
(4) Cov kabmob muaj peev xwm: Cov ncej txuas ntxiv cov kabmob muaj peev xwm raug xam rau tus qauv qauv raws li qhov kev xav tias cov ncej txuas ntxiv yog tsav los ntawm kev sib txuas thiab dais tsuas yog lub zog ntawm lub voj voog (xws li ntsuas torque). Rau tus nqi tiv taus raws li kev quab yuam ntxiv thaum siv, thov hu rau peb lub tuam txhab.
Yog tias koj xav tau cov qauv rau kev ntsuas kev ua haujlwm thiab lwm yam kev xav tau, thov hu rau peb.
