12V 24V High Speed ​​BLDC Brushless DC Tsav

12V 24V Kev kub ceev BLDC Brushless DC Tsav txais NMB pob bearings, ua kom lub neej ntev kev pab cuam, muaj cov yam ntxwv ntawm lub suab nrov, lub neej ntev, ntau yam ceev, muaj kev ntseeg siab thiab ruaj khov zoo; lub brushless lub cev muaj zog tsav Circuit Court board yog sab nraud; Sab nraud Tus neeg tsav tsheb tuaj yeem paub txog PWM lossis 0~ 5V stepless ceev tswj; qhov ceev, voltage, bearing, tso zis ncej, lead-out hlau, thiab lwm yam yuav customized raws li cov neeg xav tau kev pab.

Tuam txhab Highlights

Txheej txheem cej luam

Warranty	3 hli-1xyoo
Qhov Chaw Keeb Kwm	Shenzhen, Suav teb
Hom Lub Npe	Vshida
Qauv	VBL-2842
Kev siv	Cov khoom siv me me rau kev saib xyuas tus kheej, kev lag luam, kev lag luam, thiab kev siv hauv tsev muaj xws li cov tshuab kas fes, cov tshuaj yej mis, centrifuges, tshuaj tov khoom, micro twj, tshuab luam ntawv, projectors, ATMs, massagers, thiab lwm yam.
Hom	BLDC Tsav
Qhov hnyav	TBD (qhov sib txawv qhov hnyav sib txawv)
Cheebtsam	Diversifed
Kev tsim kho	Permanent Magnet
Kev sib hloov	Tsis txhuam
Tiv thaiv Feature	Customized
Kev ua tau zoo	85 feem pua
Rated Voltage	12 V
Tsis muaj Load Speed	2000 rpm
Load Ceev	15622
Tsis Muaj Load Tam Sim No	0.42
Pib Torque	180 m.n
Khoom npe	Brushless DC Tsav
Hwj chim	2.0-50W
Kev taw qhia ntawm kev sib hloov	CWJ & CCW
Cov nqe lus them nqi	30 feem pua ​​​​ua ntej, 70 feem pua ​​tshuav
thuam	TIAB SA 16949
Customized	Txais

Product Description

Lub tuam txhab muaj ib pab neeg tshawb fawb thiab kev txhim kho, uas tuaj yeem kho tus qauv tsim raws li koj xav tau. Nws muaj kev tshawb fawb thiab kev loj hlob muaj peev xwm, thiab tsim ntau yam tshiab motors ib hlis nyob rau nruab nrab.

Khoom Paub meej

	100 feem pua qhov tseeb duab

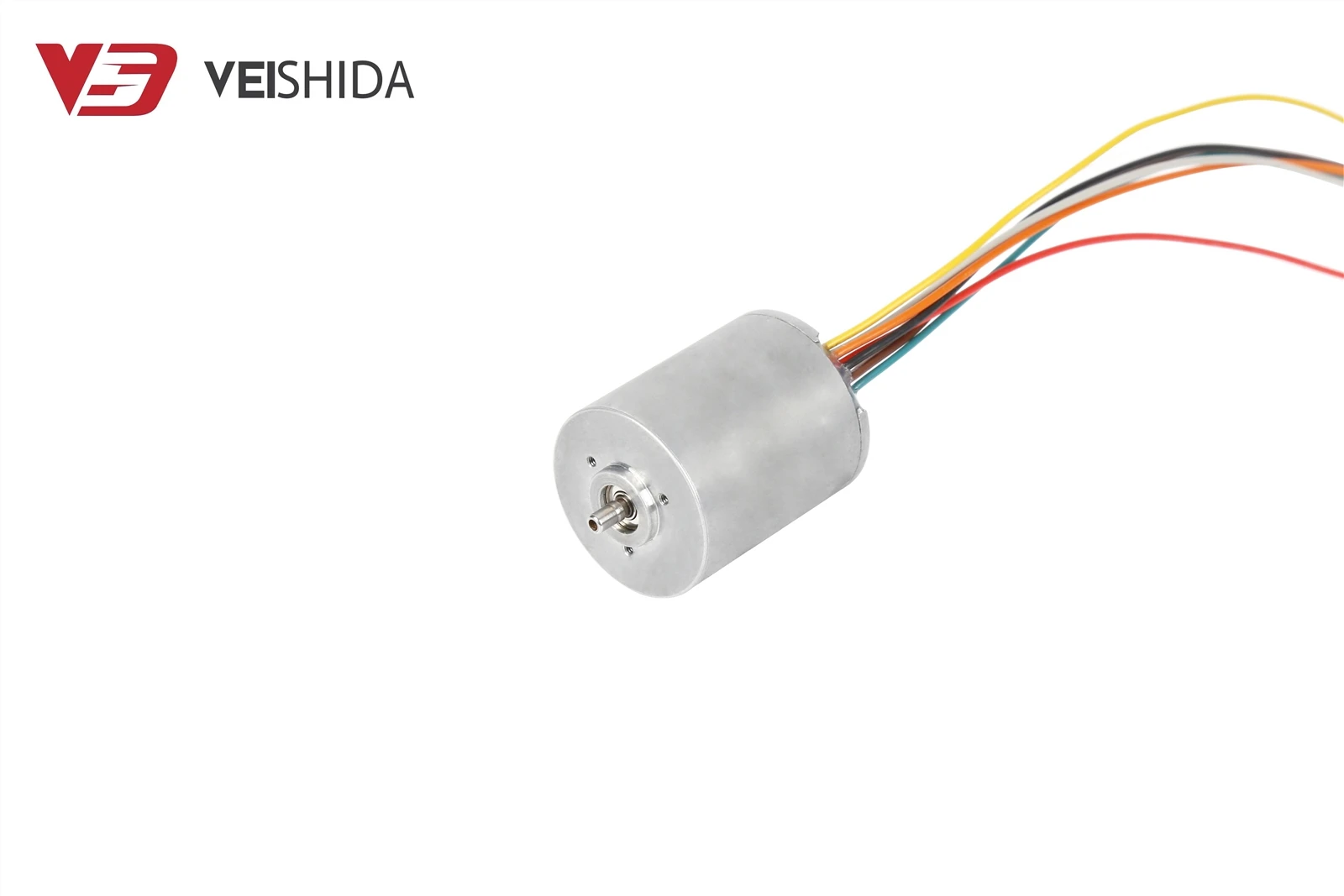

Rotor: Ua los ntawm cov tub ntxhais zoo hlau zoo nrog qhov tshwj xeeb kub tiv thaiv qhwv ib ncig ntawm cov hlau ntshiab tooj liab.		Cov kabmob: Cov bearings yog tsim los ntawm CNC machining kom muaj kev sib txhuam, txhim kho kev sib kis ruaj khov, thiab ua kom muaj kev sib txuas thiab kho yooj yim dua.
	100 feem pua qhov tseeb duab

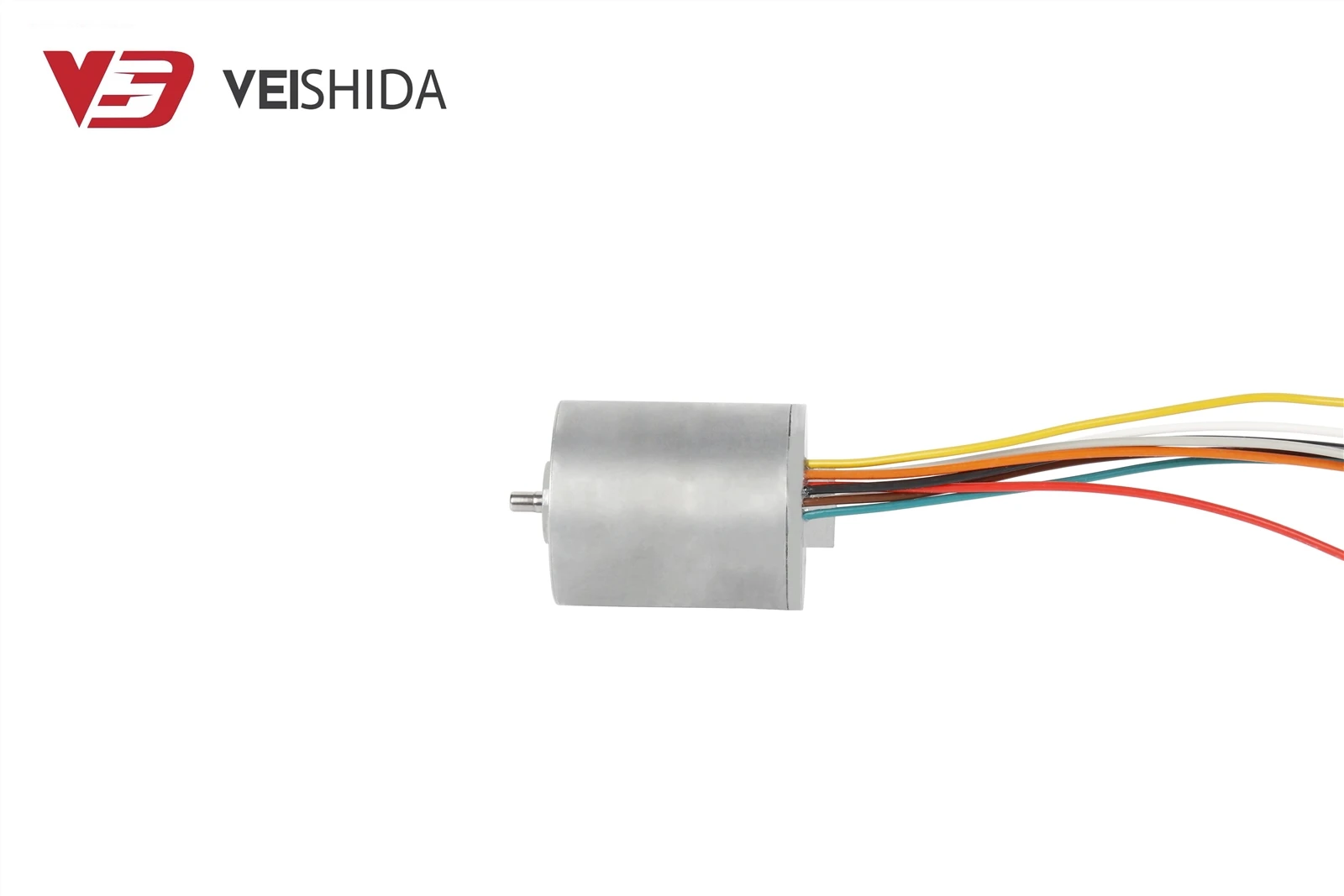

Kawg cap: Tsau hluav taws xob rotor ua nrog cov khoom siv zoo tshaj plaws uas muaj cua sov zoo dua, sib txuam ntau dua, thiab lub neej ntev dua.		Lub cev muaj zog casing yog ua los ntawm cov khoom zoo raw khoom nrog siab hardness, kub kuj, tsis muaj corrosion, tsis tshua muaj hnav thiab tsis muaj xeb.



Khoom Parameter

VOLTAGE		TSIS PUB		NTAWM MAXIMUM EFFICIENCY				Pib
Kev ua haujlwm RANGE	NOMINAL V	HLUB r / min	Tam sim no A	HLUB r / min	Tam sim no A	TORQUE mN.m	OUTPUT W	TORQUE mN.m	Tam sim no A
8-26	24	21200	0.43	15842	2.862	30	45.21	236.12	12.1

Performance Curve

Motor Description

1.12V 24V Kev kub ceev BLDC Brushless DC Tsav yog ua los ntawm cov hlau tshwj xeeb uas muaj cov qauv me me (0.15 modulus), ultra-tsawg suab nrov thiab kev ntseeg siab.
2. Lub cev muaj zog tau txais kev tiv thaiv oxidation commutator thiab cov khoom siv txhuam, uas muaj cov yam ntxwv ntawm kev ua haujlwm ruaj khov, lub neej ntev, kev co me me thiab siab torque.
3. Nrog rau kev ua haujlwm ntawm FWD / REV, hloov pauv ceev, overcurrent tiv thaiv 12VDC 2.5A lossis 24VDC 1.5A. Hall encoders rau ntsuas thiab tswj ceev.
4. Cov kabmob zoo yog siv rau ob sab kom ntseeg tau tias nws ruaj khov, ruaj khov, nyob ntsiag to thiab ua haujlwm zoo.
5. Yog tias koj muaj lus nug ua ntej kev yuav khoom, thov hu rau peb. Peb yuav muab koj cov lus teb txaus siab tshaj plaws thiab cov lus qhia zoo tshaj plaws, txais tos OEM / ODM cov kev pabcuam thiab cov xaj xaj ntau.

6. Siv dav hauv cov khoom siv hluav taws xob zoo xws li tsheb, khoom siv sib txuas lus, tsev ntse, khoom siv kho mob, kev ruaj ntseg ntse, khoom siv hauv tsev, khoom siv hauv tsev sab hnub poob, tshuab thiab hluav taws xob.

Lub tuam txhab muaj zog

Shenzhen Vshida Micromotor Co., Ltd. yog lub chaw tsim khoom lag luam micro tsav uas sib txuas cov kws tshaj lij R & D, ntau lawm, thiab muag khoom. Hub motors, coreless slotless motors, twj (dej, huab cua, thiab solenoid li qub), hlau zoo nkauj thiab carbon txhuam micromotors, iav txo lub cev muaj zog, brushless motors, thiab Airsoft motors yog qee yam ntawm nws cov khoom tseem ceeb. Nws muaj peev xwm muaj zog rau kev tsim khoom thiab kev tsim khoom nrog rau lub pas dej loj loj ntawm cov cuab yeej siv siab thiab kev tswj hwm hauv kev lag luam tsheb. Ua raws li cov kev cia siab ntawm cov neeg siv khoom customization.

​

Txhua lub cev muaj zog tau ua tiav ntau yam kev ntsuam xyuas kev ntseeg siab thiab kev soj ntsuam hauv chav kuaj, suav nrog kev ntsuas suab nrov, ntsuas dej tsis zoo, ntsuas lub neej, ntsuas kev sib tsoo, ntsuas kev cia, ntsuas tshuaj ntsev, thiab lwm yam, kom lav qhov zoo tshaj plaws.

​

Daim ntawv pov thawj khoom

Txhawm rau ua kom tau raws li qhov kev thov ntawm cov neeg siv khoom rau ntau daim ntawv pov thawj, nws tau dhau los ua tus lej ntawm cov ntawv pov thawj thoob ntiaj teb thiab cov ntawv pov thawj patent.

​

Cov koom tes

Ua ib tus neeg koom tes ntseeg siab hauv Suav teb, peb zoo siab koom tes nrog koj. Peb tau cog lus rau kev tshawb fawb thiab kev loj hlob ntawm micro motors tau ntev, muab rau feem coob ntawm European thiab Asmeskas cov neeg siv khoom thaum tseem ua tau raws li qhov xav tau loj.

​



Vim Li Cas Xaiv Peb

Daim ntawv thov

​

Micro motors yog qhov hloov tau zoo heev thiab tuaj yeem tsim kho rau ntau yam kev siv. Yog tias koj muaj kev xav tau tshwj xeeb, thov hu rau peb.



Thauj Ntim

​

Pem hauv ntej ntim ntawm lub thawv ua npuas ncauj: 350 * 265 * 280mm
Thawv sab nrauv: 365 * 275 * 320mm

Optimal carton proportions thiab foam packing that absorbs shock. Thov hu rau peb ua ntej yog tias koj xav tau cov kev pabcuam tshwj xeeb.

Cov kev ntsuas lub cev saum toj no yog rau kev siv nkaus xwb, thiab tuaj yeem hloov pauv thiab kho raws li cov neeg siv khoom xav tau. Yog tias koj muaj kev xav tau tshwj xeeb, thov hu rau peb kom tau txais cov qauv rau kev kuaj.

Kev Them Nyiaj & Xa

​



Lus Cim rau 12V 24V Kev Kub Ceev BLDC Brushless DC Tsav:
Sab hauv tus neeg tsav tsheb: nws muaj cov haujlwm ntawm FWD / REV, hloov pauv ceev, overcurrent tiv thaiv 12VDC 2.5A lossis 24VDC 1.5A. Hall encoders rau ntsuas thiab tswj ceev.
Ntxiv ib PWM (Pulse Width Modulator) ceev maub los kho qhov ceev,
a. Lub hwj chim ntawm tus tswv xeev PWM yuav tsum tau muab cais tawm ntawm lub cev muaj zog, 5V DC, zaus 10-30K.
b. Lub xiav xaim txuas mus rau nruab nrab tus pin ntawm 3 tus pins ntawm PWM, thiab qhov tsis zoo yuav tsum txuas nrog "DC-".
c.0-10 feem pua, tsis muaj kev sib hloov. 10 feem pua ​​-100 feem pua, nws yog infinitely variable.



Feem ntau ntawm peb lub cev muaj zog tuaj yeem ua kev cai tsim los khiav ntawm 12 volts, 24 volts, 36 volts, 48 ​​volts lossis siab dua. Kev xaiv cov roj nplua nyeem sib txawv thiab IP65 ntsuas lub cev muaj zog muaj rau qhov kub thiab txias, plua plav thiab qhov chaw ntub dej. Integrated Hall sensors lossis encoders kuj muaj rau cov ntawv thov uas xav tau txoj haujlwm raug thiab tawm tswv yim nrawm. Ntau yam ntawm brushless iav motors thiab brushless DC motors nrog kev sib xyaw drives kuj muaj. Kev cai ntxaib shafts thiab mounting flanges yog muaj raws li qhov kev thov.

Thov hu rau peb kom peb muaj peev xwm muab tau tshaj drives, encoders, thiab gearboxes. Hauv 24 teev hauv qab no, peb yuav teb rau koj cov lus.
