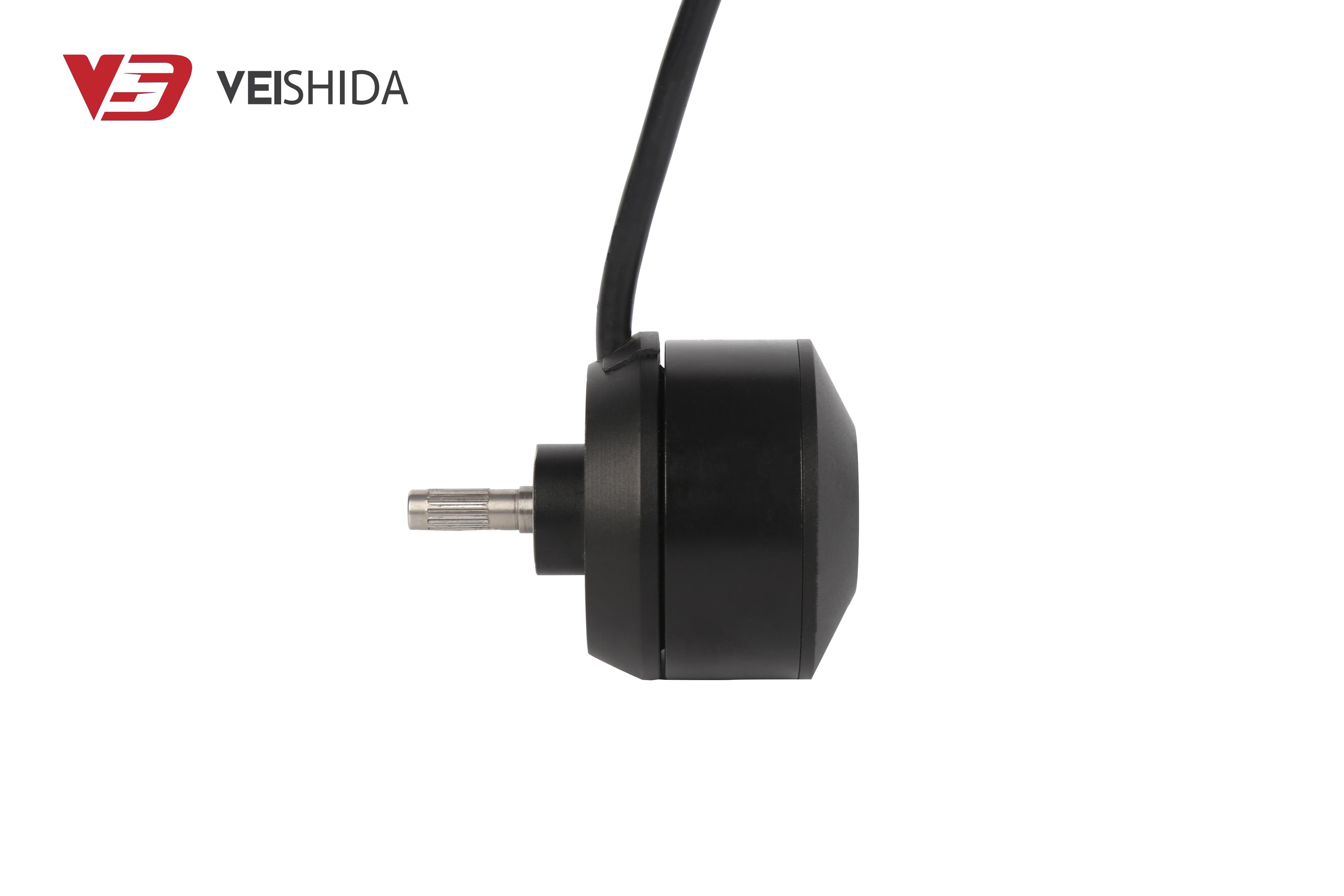

High Speed Brushless Tsav Rau Drone
Lub cev muaj zog ntev: 47mm,
Dav: 42.5mm,
Ib pob loj: 12.6X10.1X4.8 cm
Dav siv dav hauv kev kho mob, kev zoo nkauj, kev saib xyuas kev noj qab haus huv niam thiab menyuam, tsev ntse, drones, tsheb, chaw ua haujlwm, qauv dav hlau, qauv khoom ua si, cov cuab yeej hluav taws xob, robots thiab lwm yam. Peb muaj 15 xyoo ntawm kev paub nyob rau hauv micro-motor ntau lawm thiab kev loj hlob, muab cov neeg muas zaub nrog saj zawg zog thiab kev customized kev pab cuam.
Hauj lwm lawm
UAV Hall effect high-speed brushless motor angle: 120 degrees hluav taws xob lub kaum sab xis. Ncej runout: 0 025mm. Radial clearance: 0 02mm@450g. Kev ua si kawg: 0.08mm @ 450g.Max. Radial quab yuam: 75N @ 20mm los ntawm flange. Axial zog: 15N. Rwb thaiv tsev chav kawm: Chav B. Tus naj npawb ntawm theem: 3. Rated voltage (DC): 36V. Rated ceev: 4000RPM. Rated torque: 0.055Nm / 7.7oz.in. Rated zog: 23W. Peak torque: 0.16 Nm / 22.5oz.in. Peak tam sim no: 3.5A. Kuj: 4.1 ohms. Inductance: 10mH ± 20 feem pua Torque tsis tu ncua: 0.053 Nm / A.Back EMF: 5.55 V / KRPM. Rotor Inertia: 30 g.cm2.Lub cev Length: 45mm / 1.8 "Nws muaj cov yam ntxwv ntawm lub zog siab, tsis tshua muaj suab nrov, lub neej ntev thiab kev ua haujlwm ruaj khov.
Tuam txhab Highlights
Txheej txheem cej luam
Warranty | 3 hli -1xyoo |
Qhov Chaw Keeb Kwm | Shenzhen, Suav teb |
Hom Lub Npe | Vshida |
| Kev siv | Automation, aerospace, neeg hlau, textile machinery, 3D printers, quadcopters, thiab lwm yam. |
Hom | DC Brushless Tsav |
Qhov hnyav | TBD (qhov sib txawv qhov hnyav sib txawv) |
Cheebtsam | Diversifed |
Kev tsim kho | Permanent Magnet |
Kev sib hloov | Tsis txhuam |
Tiv thaiv Feature | Customized |
Kev ua tau zoo | 85 feem pua |
| Voltage ntau | Tsawg dua los yog sib npaug rau 36 V |
Khoom npe | Micro Brushless dc lub cev muaj zog |
Rated Voltage | 24V |
| Rated ceev | 4000RPM |
| Peak tam sim no | 3.5A |
| Peak torque | 0.16N.m/22.5oz.in |
| Rated torque | 0.055N.m/7.7oz.in |
| Kev taw qhia ntawm kev sib hloov | CWJ CW |
Cov nqe lus them nqi | 30 feem pua ua ntej, 70 feem pua tshuav |
| thuam | TIAB SA 16949 |
Customized | Txais |
Product Description
Kev tshawb fawb muaj zog thiab kev tsim muaj peev xwm, txhim kho ntau yam tshiab motors hauv ib hlis
Lub cev muaj zog Parameter
Lub cev muaj zog Oline
Motor Performance Curve
Thov hu rau peb yog tias tus neeg siv khoom muaj kev thov tshwj xeeb. Koj cov lus nug hauv online yuav tau txais lus teb los ntawm peb hauv 24 teev. Cov kev xav tau ntawm cov neeg siv khoom tuaj yeem ua raws li txhua qhov kev siv thev naus laus zis.
Khoom Paub meej
| 100 feem pua qhov tseeb duab |
|
Rotor: muaj ib tug zoo hlau core nrog zoo kub kuj qhwv ib ncig ntawm ib tug ntshiab tooj liab hlau. Nws muaj qhov ua haujlwm qis dua tam sim no thiab xav tau lub zog tsawg dua. | Cov kabmob: Siv cov kabmob muaj npe, xyuas kom cov khoom zoo, txo lub suab nrov, thiab xaiv ntawm pob bearings thiab oilbearings yog tias koj nyiam (cov kabmob tuaj yeem kho tau) | |
| 100 feem pua qhov tseeb duab |
|
Kawg cap:lengthen lifespan, kho lub cev muaj zog lub rotor, thiab txhim kho cua sov dissipation, siv cov khoom zoo raw khoom. | Chassis: Ua kom cov cua sov ua kom zoo, txhim kho lub cev muaj zog rotor, ua kom lub neej ua haujlwm ntev, thiab xaiv cov khoom siv raw. |
Kev piav qhia ntawm lub cev muaj zog
1. Tag nrho cov motors nyob rau hauv lub Hoobkas yog 100 feem pua brand tshiab thiab zoo guaranteed.
2. Haum rau tsheb, cov cuab yeej, kev lag luam tswj, automation, aerospace, robotics, textile machinery, 3D printers, thiab lwm yam.
3. Yog tias koj pom tias lub siab ceev brushless lub cev muaj zog rau drone muaj kev puas tsuaj los yog puas thaum lub sij hawm thauj mus los ntev, thov koj xav tiv tauj peb, peb yuav lav muab cov kev daws teeb meem rau koj.
4. Kev txuag hluav taws xob thiab nyob ntsiag to, kev ua haujlwm siab ntawm cov khoom siv lub cev muaj zog, kev tsim cov tshuab ua haujlwm siab kom ntseeg tau tias kev ua haujlwm ruaj khov, lub Hoobkas ncaj muag muag, kev ua haujlwm zoo dua thiab pheej yig dua.
5. Peb yog ib tus khub tshwj xeeb rau cov tuam txhab ua tsaug rau peb qhov zoo ntawm kev ua haujlwm yooj yim, xa khoom sai, thiab kev pabcuam hauv qhov chaw. Peb kuj muab cov kev pabcuam customized, OEM & ODM cov kev pabcuam, kev muag khoom ua ntej zoo, hauv-muag, tom qab-muag, thiab kev txhawb nqa.
Lub tuam txhab muaj zog
Vshida Micro Motor Company tsim 200,000 lub cev muaj zog txhua hnub siv ntau dua 40 cov kab ntau lawm, cov neeg ua haujlwm tsim khoom ntau dua 500 tus neeg ua haujlwm, thiab qib siab ntawm automation. Txhawm rau muab cov neeg siv khoom yooj yim thiab cov kev pabcuam tsim nyog kom ua tiav cov txiaj ntsig zoo sib xws thiab cov txiaj ntsig yeej-yeej, peb kuj muaj cov kws tshaj lij kev lag luam uas yog cov neeg siv khoom siv, zoo li lub hauv paus, thiab thev naus laus zis ua lub zog tsav.
Daim ntawv pov thawj khoom
Ib txhia ntawm peb cov neeg koom tes
Daim ntawv thov
Vim peb pab neeg R&D ywj siab, kev tsim qauv tsim, thiab 15 xyoo ntawm lub cev muaj zog R & D thiab kev tsim khoom, kev ua haujlwm nrog peb txhais tau tias xaiv ua haujlwm nrog kev xav zoo, cov chaw tsim khoom zoo.
Thauj Ntim
Thov hu rau peb yog tias koj xav tau lwm yam kev xav tau ntim tshwj xeeb.
Muaj peev xwm muab khoom: Ntau tshaj 200000 DC motors nrog ib hnub
Ua npuas ncauj hauv qhov ntev yog 350x265x280mm.
Qhov loj me ntawm lub thawv sab nrauv: 365 * 275 * 320mm.
350 pcs; 16,7kg ib
Kev Them Nyiaj & Xa
Yuav Daim Ntawv Qhia Txog Kev Kub Ceev Txhuam Txhuam Txhuam Hniav rau Drone
Peb yog ib pab pawg neeg ua haujlwm ntawm micromotor manufacturers (factories), wholesalers thiab lwm tus neeg rau electronics kev lag luam. Peb muab cov khoom siv lub cev muaj zog ntawm tus nqi pheej yig. Peb muaj ntau yam khoom xws li brushless motors, brushed motors, air gun motors, coreless motors, geared motors, hub motors, twj, yog li peb tuaj yeem ua tau raws li koj xav tau ntawm txhua lub cev muaj zog. Drone motors yog ib qho ntawm cov khoom nrov tshaj plaws ntawm ntau txoj kev xaiv. Lub tuam txhab tsim engineers muab ntau yam kev xaiv uas cuam tshuam thiab tuaj yeem pom zoo thiab hloov cov kev pabcuam tsim kom raug raws li cov neeg siv khoom xav tau. Yog tias koj xav tau cov chaw txhawb nqa ntxiv, xws li drives, encoders, gearboxes, thiab lwm yam, thov hu rau peb, peb yog cov kws tshaj lij hauv Suav teb uas tuaj yeem muab kev pabcuam rau koj, OEM & ODM kev pabcuam.
