bldc lub cev muaj zog

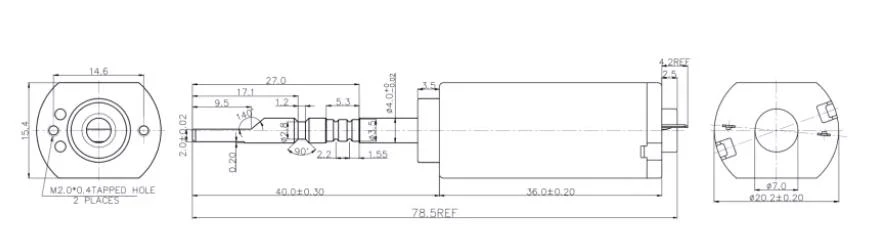

tiaj tus bldc lub cev muaj zog ncej ntev: 40mm; ncej taub: 2 mm; qhov hnyav: txog 34 grams; Kev ntsuas hluav taws xob: DC 3.7V; ntsuas tam sim no: 0.14A; ntsuas ceev: 23800RPM; nrog lub zog loj, lub neej ntev, tsis tshua muaj suab nrov, kev ua haujlwm ruaj khov thiab lwm yam ntxwv, dav siv hauv cov txhuam hniav hluav taws xob, cov tshuab ntse, cov khoom siv hauv tsev ntse, cov neeg hlau me me, cov tshuab dimple, cov xauv ntse, cov hoods, cov khoom siv ntse thiab kev kawm neeg hlau, thiab lwm yam., tuaj yeem muab kev pabcuam tomqab muag rau koj, OEM / ODM, kev pabcuam customized, txais tos koj nug.

Tuam txhab Highlights

Txheej txheem cej luam

Warranty	3 hli-1xyoo
Qhov Chaw Keeb Kwm	Shenzhen, Suav teb
Hom Lub Npe	Vshida
Qauv	VBL-2480
Kev siv	Cov txhuam hniav hluav taws xob, cov tshuab ntse, cov khoom siv hauv tsev ntse, cov neeg hlau me me, cov tshuab dimple, cov xauv ntse, cov hoods, cov khoom muag, cov cuab yeej ntse thiab kev kawm neeg hlau, thiab lwm yam.
Hom	BLDC Tsav
Qhov hnyav	TBD (qhov sib txawv qhov hnyav sib txawv)
Cheebtsam	Diversifed
Kev tsim kho	Permanent Magnet
Kev sib hloov	Tsis txhuam
Tiv thaiv Feature	Customized
Kev ua tau zoo	80%
Rated Voltage	3.7V
Khoom npe	Micro Brushless DC Tsav
Tsis muaj load tam sim no	Tsawg dua lossis sib npaug li 200mA
Qhov hnyav	cav 34g
Tsis load Ceev	20000 ± 10% rpm
Kev taw qhia ntawm kev sib hloov	CWJ & CCW
Voltage ntau	Tsawg dua los yog sib npaug rau 36 V
Cov nqe lus them nqi	30% ua ntej, 70% tshuav nyiaj li cas
thuam	TIAB SA 16949
Customized	Txais

Product Description

Pab pawg R & D ywj siab los ua kom tiav OEM thiab ODM cov cai, nrog rau koj cov kev xav tau tshwj xeeb.

Lub cev muaj zog parameter



Lub cev muaj zog

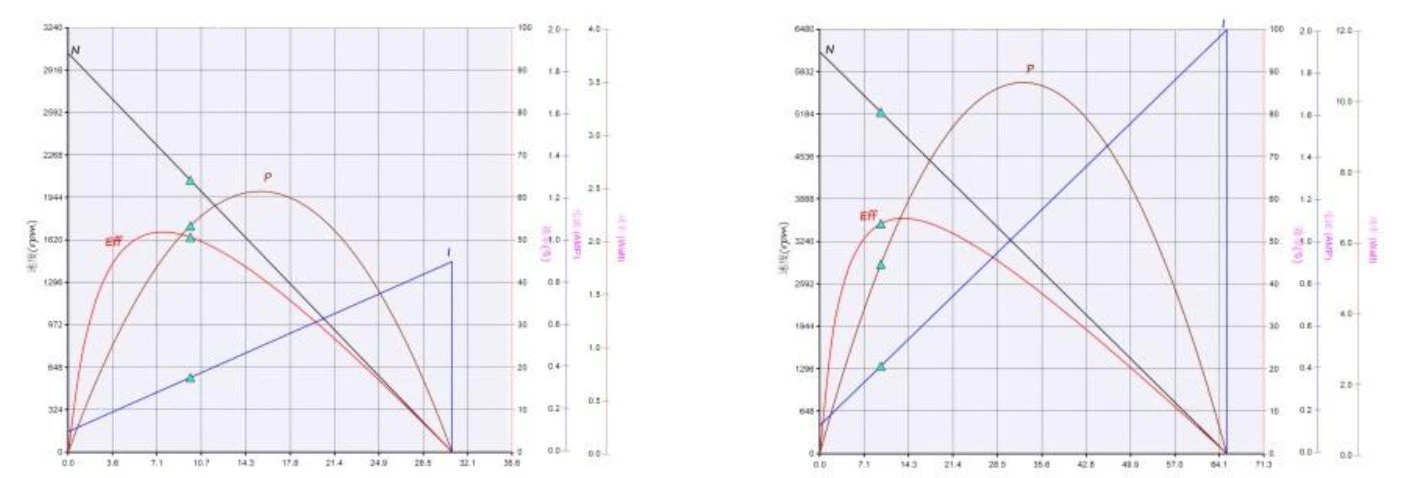

Motor Performance Curve



Peb qhov kev pabcuam



1.Cov zis ncej ntawm lub tiaj tus bldc lub cev muaj zog yog tsim los ntawm high-hardness tooj liab, uas muaj zoo toughness thiab tej yam kuj.



2.Features: DC micro lub cev muaj zog muaj qhov siab ntawm precision, yog shockproof, hnav-resistant, thiab txhim khu kev qha hauv kev ua haujlwm. Nws yog lwm txoj hauv kev zoo rau koj lub tshuab xeb lossis tawg DC motors.



3.Function: DC lub cev muaj zog tuaj yeem hloov pauv, txawm li cas los xij nws tsuas yog nce lossis txo qis; suab nrov



4.Applications: suav nrog rearview tsom iav, beam theem hloov, tsheb cov khoom ua si, ua-nws-koj tus kheej tes xyaum, khoom siv hluav taws xob, thiab tshuab luam ntawv rau video games.



5.Muaj kev pabcuam zoo tomqab muag, kev pabcuam kws tshaj lij thiab kev cob qhia, cov khoom siv raw khoom zoo, kev lees paub zoo, thiab kev pabcuam OEM / ODM kom txaus siab rau koj cov kev xav tau rau kev txiav txim loj.



Lub tuam txhab muaj zog

Lub Tuam Txhab Vshida Micro Tsav siv cov kev tsim khoom, kev tshawb fawb, thiab kev tsim kho cov txheej txheem ua ke nrog kev tswj hwm kev tswj hwm kev tsim khoom. tau ua tiav kev lees paub raws li ISO 9001: 2015 thiab IATF16949: 2016 rau nws txoj kev tswj hwm zoo. Lub tuam txhab cov chaw tsim khoom tam sim no ntiav ntau tshaj 30 tus neeg ua haujlwm R&D, tshaj 40 cov kab sib dhos, ntau tshaj 300 cov khoom siv tshuab, ntau tshaj 500 tus neeg ua haujlwm pem hauv ntej, thiab tsim ntau tshaj 200,{12}} lub cev muaj zog txhua hnub.

Lub tuam txhab muaj ib tug xov tooj ntawm automated ntau lawm cov cuab yeej, xws li tsis siv neeg winding tshuab, tsis siv neeg stator tshuab rau stators, tsis siv neeg stator tshuab rau kawg caps, tsis siv neeg soldering tshuab, thiab lwm yam .; tag nrho cov motors tau dhau los ntawm cov kev ntsuam xyuas kev ntseeg siab thiab cov chaw soj nstuam, kuaj suab nrov, kuaj dej tsis zoo, kuaj lub neej, kuaj kev sib tsoo, kev sim cia, tshuaj tsuag ntsev, thiab lwm yam, muaj kev ruaj ntseg zoo.



Daim ntawv pov thawj khoom



Ib txhia ntawm peb cov neeg koom tes

Txhua lub cev muaj zog tuaj yeem hloov kho rau ntau yam kev siv thiab yog tsim los nrog cov kev xav tau siab ntawm cov neeg siv khoom hauv siab. Thov hu rau peb yog tias koj xav tau cov ntaub ntawv ntsuas kev ua haujlwm.

Daim ntawv thov



Thauj Ntim

Thov hu rau peb yog tias koj muaj kev xav tau ntim tshwj xeeb ntxiv.

Pem hauv ntej ntim lub thawv: 350 * 265 * 280mm

Thawv sab nrauv: 365 * 275 * 320mm

Qhov hnyav 16.7kg / 350pcs



Kev Them Nyiaj & Xa



Yuav ua li cas xaiv lub tiaj tus bldc lub cev muaj zog



Hauv kev lag luam txhuam hniav hluav taws xob, qhov sib nqus levitation motor feem ntau yog siv. Muaj ob txheej ntawm electrodes tsim los ntawm coils, thiab vibrator (txuas txuas ntawm lub taub hau txhuam) yog nruab nrab ntawm ob pawg ntawm electrodes. Los ntawm kev hloov lub teeb liab tswj, ib qho alternating tam sim no yog generated, thiab cov kev taw qhia thiab lub zog ntawm magnetic teb yog hloov, kom lub vibrator swings ntawm daim hlau ntawm ib tug high speed. Cov txiaj ntsig tseem ceeb: Vim tias qhov kev co txuas txuas txuas tau raug tshem tawm hauv nruab nrab, nws tseem hu ua magnetic levitation motor. Kev sib txhuam ntawm lub cev yog txo, thiab qhov kev vibration tsuas yog qhov txuas txuas, kev vibration ntawm lub fuselage me me, lub suab nrov me me, thiab lub xib teg yuav tsis loog vim kev co ntawm lub fuselage;

Cov kev taw qhia vibration tsuas muaj ib qho kev taw qhia ntawm + XX, yog li nws tseem hu ua linear motor.

Txij li thaum lub vibration txuas pas nrig yog tswj, thiab lub zog ntawm tag nrho cov vibration ib feem yog concentrated nyob rau hauv lub txhuam taub hau ib feem, cov txhuam hniav yuav optimized. Nws qhov tsis zoo yog tias tus nqi siab dua li ntawm cov tshuab eccentric zoo tib yam.



Thov hu rau peb kom peb tuaj yeem muab cov khoom sib txuam, encoders, thiab gearboxes. Peb yuav teb koj cov lus hauv 24 teev.
