Outer Rotor BLDC Tsav Rau Cov Phom Loj
Sab nraud txoj kab uas hla: 55mm (tuaj yeem kho tau),
Axial clearance: 0 05-0.5mm,
Kev ntsuas hluav taws xob: DC 2V / 24V,
Kev taw qhia kev sib hloov: CW CCW;
Dav siv dav hauv kev kho mob, kev zoo nkauj, kev saib xyuas kev noj qab haus huv niam thiab menyuam, tsev ntse, drones, tsheb, chaw ua haujlwm, qauv dav hlau, qauv khoom ua si, cov cuab yeej hluav taws xob, robots thiab lwm yam. Peb muaj 15 xyoo ntawm kev paub nyob rau hauv micro-motor ntau lawm thiab kev loj hlob, muab cov neeg muas zaub nrog saj zawg zog thiab kev pab customized.
Hauj lwm lawm
Brushless lub cev muaj zog tseem hu ua cov hlau nplaum ruaj khov DC lub cev muaj zog, torque: siab tshaj 2.5kgf-cm (tuaj yeem kho tau) ceev (RPM): 55RPM / V (tuaj yeem kho tau), tsis tu ncua tam sim no (A): 1.2A, tuaj yeem kho nrog encoder Magnet Lub cev muaj zog, hnyav txog 140 grams, nrog kev tswj hwm braking, tsis tshua muaj EMC, tsis tshua muaj suab nrov, kev ua haujlwm siab, lub neej ntev, kev tiv thaiv overcurrent, kev tiv thaiv overvoltage, thiab lwm yam. Outer Rotor BLDC Motor rau Massage Gun yog nruab nrog lub rotor sab nraud, nrog lub tiaj tus. hollow ncej Tus qauv tsim, nrog built-in encoder hlau nplaum rau kev tswj siab. Cov kev ntsuas tuaj yeem hloov kho raws li cov kev xav tau tshwj xeeb, OEM / ODM txais tos.
Tuam txhab Highlights
Txheej txheem cej luam
Warranty | 3 hli-1xyoo |
Qhov Chaw Keeb Kwm | Shenzhen, Suav teb |
Hom Lub Npe | Vshida |
| Kev siv | Kev Kho Tus Kheej, Kev Siv Hauv Tsev, Cov Khoom Siv Hauv Tsev, Cov Khoom Siv Lag Luam thiab Cov Khoom Siv Kho Mob, thiab lwm yam. |
Hom | BLDC Tsav |
Qhov hnyav | TBD (qhov sib txawv qhov hnyav sib txawv) |
Cheebtsam | Diversifed |
Kev tsim kho | Permanent Magnet |
Kev sib hloov | Tsis txhuam |
Tiv thaiv Feature | Customized |
Kev ua tau zoo | 85 feem pua |
| Voltage ntau | Tsawg dua los yog sib npaug rau 36 V |
Khoom npe | Micro Brushless dc lub cev muaj zog |
Rated Voltage | DC 12 V |
| Kev taw qhia ntawm kev sib hloov | CWJ CW |
Cov nqe lus them nqi | 30 feem pua ua ntej, 70 feem pua tshuav |
Qhov ntev | 55 * 30 (mm) |
| thuam | TIAB SA 16949 |
Customized | Txais |
Product Description

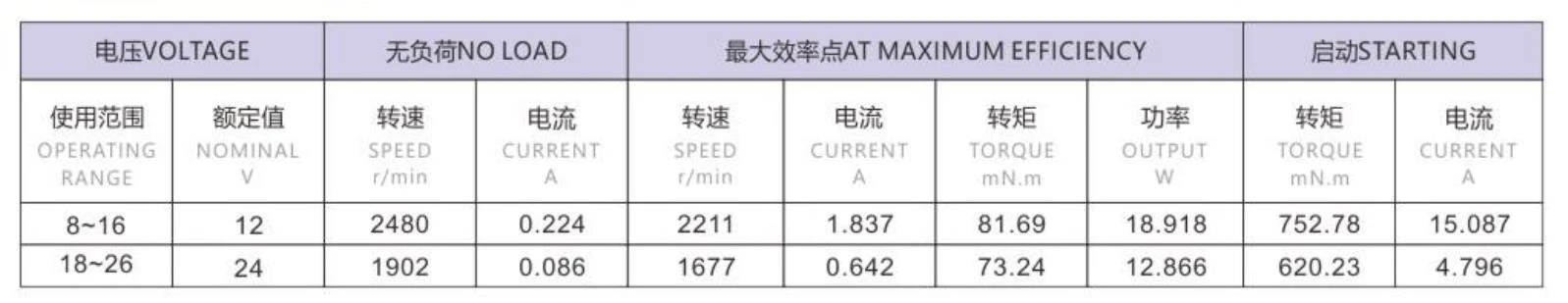

Lub cev muaj zog Parameter

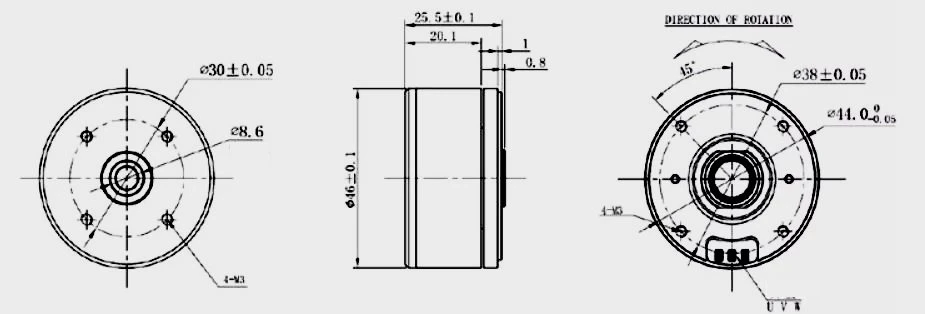

Lub cev muaj zog Oline
Yog tias tus neeg siv khoom muaj kev xav tau tshwj xeeb, thov hu rau peb. Peb yuav teb koj cov lus nug hauv online hauv 24 teev. Txhua qhov kev ntsuas tsis tuaj yeem hloov pauv kom ua tau raws li cov neeg siv khoom xav tau.

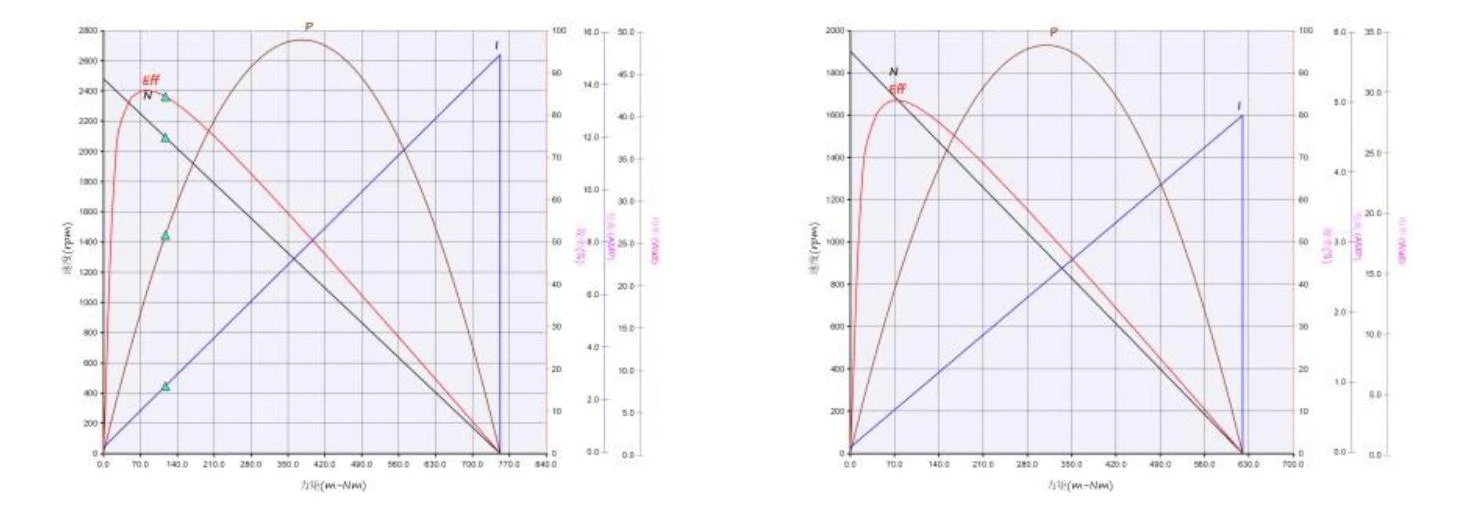

Motor Performance Curve
Thov hu rau peb yog tias tus neeg siv khoom muaj kev thov tshwj xeeb. Hauv 24 teev, peb yuav teb rau koj cov lus nug hauv online. Yuav kom haum raws li qhov xav tau ntawm tus neeg siv khoom, txhua yam kev ua haujlwm tau hloov pauv tau.
Khoom Paub meej
| 100 feem pua qhov tseeb duab |
|
Rotor: muaj ib tug zoo hlau core nrog txawv txawv tshav kub kuj qhwv ib ncig ntawm ib tug ntshiab tooj liab hlau. Tsis tas li ntawd, nws muaj qhov ua haujlwm qis dua tam sim no thiab xav tau lub zog tsawg dua. | Cov kabmob: Siv cov kabmob muaj npe kom paub tseeb tias qhov zoo thiab txo lub suab nrov (cov kabmob tuaj yeem kho tau) | |
| 100 feem pua qhov tseeb duab |
|
Kawg cap: Siv cov ntaub ntawv zoo zoo los ua kom lub neej ntev, kho lub cev muaj zog rotor, thiab txhim kho cov cua sov. | Chassis: Kev siv cov khoom zoo nrog cov tawv tawv siab, kub tsis kam, tiv thaiv corrosion, hnav tsis kam, thiab xeb kuj ua rau muaj kev pab cuam lub neej. |
Kev piav qhia ntawm lub cev muaj zog
1. Sab nraud rotor tsav tsheb, PWM mem tes dav dav, clockwise / counterclockwise rotation, FG ceev tawm tswv yim teeb liab, nres tswj
2.Outer Rotor BLDC Tsav rau Massage Gun muaj tsawg EMC, tsis tshua muaj suab nrov, kev ua haujlwm siab, lub neej ntev: 20000hrs Min., kev tiv thaiv overcurrent, overvoltage tiv thaiv, kev tiv thaiv undervoltage thiab lwm yam khoom siv los xyuas kom meej lub cev muaj zog;
3. Lub tuam txhab muaj kev ywj pheej R & D pab neeg, uas tuaj yeem kho tus qauv tsim. OEM thiab ODM xaj tau txais tos
4. Kev siv ntau yam: kev saib xyuas tus kheej, kev siv hauv tsev, khoom siv hauv tsev, cov khoom lag luam thiab cov khoom siv kho mob, drones, robots, thiab lwm yam.
5. Nws txais yuav lub tiaj tiaj tus ncej qauv tsim, uas tuaj yeem ua rau hauv cov hlau nplaum encoder rau kev tswj xyuas siab. Muab cov neeg siv khoom nrog cov khoom zoo thiab ua haujlwm siab. Parameters tuaj yeem hloov kho raws li cov kev xav tau tshwj xeeb.
Lub tuam txhab muaj zog
Cov neeg siv khoom txaus siab rau lub tuam txhab kev cog lus rau "zoo ua ntej, kev tshawb fawb thiab thev naus laus zis, thiab kev tswj hwm kev ncaj ncees." Nws muaj 15 xyoo ntawm R & D thiab kev tsim khoom, nrog rau ntau yam ntawv pov thawj thiab patents. Cov kws tshaj lij engineers thiab cov kws tshawb fawb tuaj yeem pab cov neeg siv khoom nrog cov teeb meem kev lag luam. Peb lub koom haum, uas muaj R & D muaj zog thiab muaj peev xwm tsim tau, tau ua kom muaj tus lej loj ntawm cov txuj ci siab thev naus laus zis hauv kev lag luam micro-motor. Txhawm rau ua kom tiav koj qhov kev thov loj, cov zis txhua hnub ntawm lub cev muaj zog nce mus txog 200, 000 units.
Daim ntawv pov thawj khoom
Ib txhia ntawm peb cov neeg koom tes
Vim peb pab neeg R&D ywj siab, kev tsim qauv tsim, thiab 15 xyoo ntawm lub cev muaj zog R&D thiab kev tsim khoom, kev ua haujlwm nrog peb txhais tau tias xaiv ua haujlwm nrog kev xav zoo, cov chaw tsim khoom zoo.
Daim ntawv thov
Thauj Ntim
Muaj peev xwm muab khoom: Ntau tshaj 200000 DC motors nrog ib hnub
Ua npuas ncauj hauv qhov ntev yog 350x265x280mm.
Qhov loj me ntawm lub thawv sab nrauv: 365 * 275 * 320mm.
350 pcs; 16,7kg ib
Thov hu rau peb yog tias koj xav tau lwm yam kev xav tau ntim tshwj xeeb.
Kev Them Nyiaj & Xa
Common faults nyob rau hauv lub startup ntawmsab nrauv rotor BLDC lub cev muaj zog rau massage Phom
1. Ntsuas tus nqi tiag tiag ntawm qhov pib tam sim no. Nws raug nquahu kom siv lub ntsuas ntsuas digital los ntsuas nws. Vim yog qhov inertia ntawm lub ntsuas ntsuas, qhov siab tshaj plaws tus nqi yuav tsis yog tus nqi tiag.
2. Tshawb xyuas cov rwb thaiv tsev ntawm lub cev muaj zog, qhov rwb thaiv tsev ntawm cov windings thiab lub plhaub, qhov rwb thaiv tsev ntawm cov windings ntawm theem, thiab txawm tias cov rwb thaiv tsev ntawm cov kev faib. Kev rwb thaiv tsev ntawm kev sib faib yog qhov nyuaj tshaj plaws los ntsuas. Nws tuaj yeem ntsuas tau hauv cov kauj ruam kawg. Cov rwb thaiv tsev ntawm 0.5MQ yog qhov qub.
3. Txawm hais tias lub hwj huam mov voltage loj dhau lawm
4. Txawm hais tias txoj hlua ntawm lub cev muaj zog yog qhov tseeb, txhawm rau tiv thaiv lub hnub qub-zoo li kev sib txuas rau hauv peb lub ntsej muag ntses, thiab kev sib txuas ntawm delta-shaped mus rau hauv lub hnub qub.
5. Cov ntses thauj khoom loj heev, tom kawg muaj qhov tshwm sim ntawm daim npav, txias, thiab lwm yam. Nyob rau hauv rooj plaub no, lub cev muaj zog tam sim no yuav dhau qhov ntsuas tam sim no rau lub sijhawm ntev.
Yog tias koj xav tau cov khoom siv xws li encoders, drives, gearboxes, thiab lwm yam, thov hu rau peb thiab teb rau koj cov lus nug hauv online 24 teev ib hnub twg
