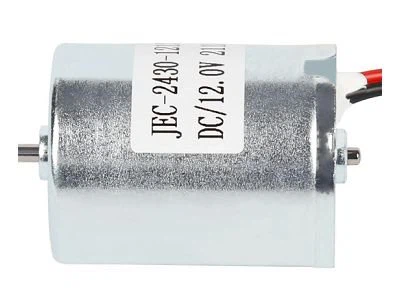

Brushless DC Tsav rau cov khoom siv kho mob

Qhov ntev ntawm brushless DC lub cev muaj zog rau cov khoom siv kho mob yog 3 0.8 ± 0.2 hli, qhov ntev ntawm cov zis ncej yog 6.5 ± 0.5 hli, tsis muaj load ceev: 13500 ± 10 %, kev thauj khoom ceev: 12700 ± 10%, qhov ntsuas kub: 25 ± 2 degree, cov tsos ntawm lub cev muaj zog txais Electroplating xiav core, pob bearing, cov hlau nplaum ruaj khov cov khoom siv, muaj cov yam ntxwv ntawm tsis muaj txhuam, tsis tshua muaj kev cuam tshuam, kev ua haujlwm zoo, kev ua haujlwm ruaj khov, kev ua haujlwm ntev, thiab lwm yam, feem ntau yog siv hauv cov khoom siv hauv tsev, cov cuab yeej hluav taws xob, cov cuab yeej siv kho mob, cov khoom lag luam, cov ntaub thaiv hluav taws xob, cov kiv cua me me, thiab lwm yam. ntau yam kev siv.

Txheej txheem cej luam

Warranty	3 hli-1xyoo
Qhov Chaw Keeb Kwm	Guangdong, Suav teb
Hom Lub Npe	Vshida
Qauv nab npawb	VBL-2430
Kev siv	Cov khoom siv me me, kiv cua, twj tso kua mis, cua twj, lub tshuab nqus tsev twj, lub twj tso kua mis kho mob, ntsuas ntshav siab, kev kho mob stirrer, scanner, nyiaj ntsuab register
Hom	Brushless dc lub cev muaj zog
Qhov hnyav	TBD (qhov sib txawv qhov hnyav sib txawv)
Cheebtsam	Diversifed
Kev tsim kho	Permanent Magnet
Kev sib hloov	Tsis txhuam
Rated zog	1.7 W
Rated voltage	24 V
Rated tam sim no	0.2(A)
Rated ceev	2830 (rpm) ceev
Rated torque	5.80 (NM)
Qhov ntev	30.8 * 24.4 hli
Kev ua tau zoo	85%
Khoom npe	Micro lub cev muaj zog
Customized	txais
Daim ntawv pov thawj	ua kom tiav



Tuam txhab Highlights



Muaj peev xwm muab khoom

Muaj peev xwm muab khoom: 4500000 Daim / Daim Ib Hlis dc lub cev muaj zog

Ntim & Xa

Ntim Cov Lus Qhia

Micro lub cev muaj zog packing: Thawv Box Peb tus qauv shipping cim rau txhua tus qauv yog raws li nram no Q'ty: pcs NW: kgs GW: kgs Meas.: L * H * W cm Koj tus kheej shipping qhia yog txais tos.

Chaw nres nkoj: Shenzhen / HongKong



Product Description

Qhov nruab nrab ntawm ob lub hlis los tsim lub cev muaj zog tshiab



Khoom Parameter



VOLTAGE		TSIS PUB		NTAWM MAXIMUM EFFICIENCY				Pib
Kev ua haujlwm RANGE	NOMINAL V	HLUB r / min	Tam sim no A	HLUB r / min	Tam sim no A	TORQUE mN.m	OUTPUT W	TORQUE mN.m	Tam sim no A
8~26	12	3698	0.087	2830	0.284	5.850	1.734	24.933	0.926
8~26	24	3653	0.071	2618	0.180	6.658	1.825	23.499	0.454





Khoom Loj



Performance Curve

Cov lus qhia saum toj no yog rau kev siv nkaus xwb, hom thiab tsis muaj qhov tshwj xeeb brushless DC motors tuaj yeem hloov kho.



Khoom Feature

brushless DC lub cev muaj zog rau cov khoom siv kho mob muaj suab nrov, kev co me me, kev ua haujlwm du, kev pab lub neej ntev.



Khoom Paub meej

	100% qhov tseeb duab

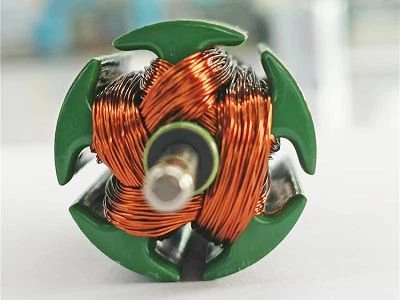

Rotor: ntshiab tooj liab hlau qhov txhab, hlau zoo core, kub tsis kam, txo lub zog noj, txo tam sim no kuj		Lub hau kawg: siv cov ntaub ntawv zoo zoo los ua kom lub neej kev pab cuam, txhim kho lub rotor ntawm lub cev muaj zog, thiab muaj cov nyhuv thermal dissipation.
	100% qhov tseeb duab
Bearings: xaiv hom bearings kom txo lub cev muaj zog suab nrov thiab xyuas kom zoo (cov kabmob tuaj yeem kho tau)		Chassis: Cov ntaub ntawv zoo nrog siab hardness, kub tsis kam, corrosion kuj, hnav tsis kam thiab xeb kuj raug xaiv, thiab kev pabcuam lub neej ntev dua.



Lub tuam txhab muaj zog



Daim ntawv pov thawj khoom



Ib txhia ntawm peb cov neeg koom tes



Daim ntawv thov



Thauj Ntim

Yog tias koj muaj kev xav tau tshwj xeeb, thov hu rau peb ua ntej.



Yuav Cov Lus Qhia



Kev Them Nyiaj & Xa



Brushless DC lub cev muaj zog rau cov khoom siv kho mob yog siv rau hauv tsheb, cov cuab yeej hluav taws xob, kev tswj hwm kev lag luam, automation, aerospace, kev kho mob, lub tsev ntse, cov khoom siv zaws, cov cuab yeej zoo nkauj, kev tu tus kheej, neeg hlau thiab lwm yam, nrog rau ntau yam kev siv, Vshida Micro Tsav Co., Ltd. kuj yog tus neeg siv khoom Muab kev pabcuam customized thiab cov kev daws teeb meem tshwj xeeb, thiab muaj qhov zoo ntawm kev ua haujlwm yooj yim, khoom siv sijhawm, thiab cov kev pabcuam hauv chaw hauv kev koom tes, thiab muab kev muag khoom zoo tshaj plaws thiab kev pab cuam tom qab muag thiab kev txhawb nqa. Nws yog ib tug tsis tshua muaj kev koom tes nyob rau hauv lub sij hawm ntev ntawm ntau manufacturers.

Txhua qhov teeb meem zoo, peb cog lus 100% kev pabcuam xa rov qab tsis muaj nqi. Yog tias koj xav tau lwm yam voltages thiab ceev, thov koj xav tiv tauj peb!
