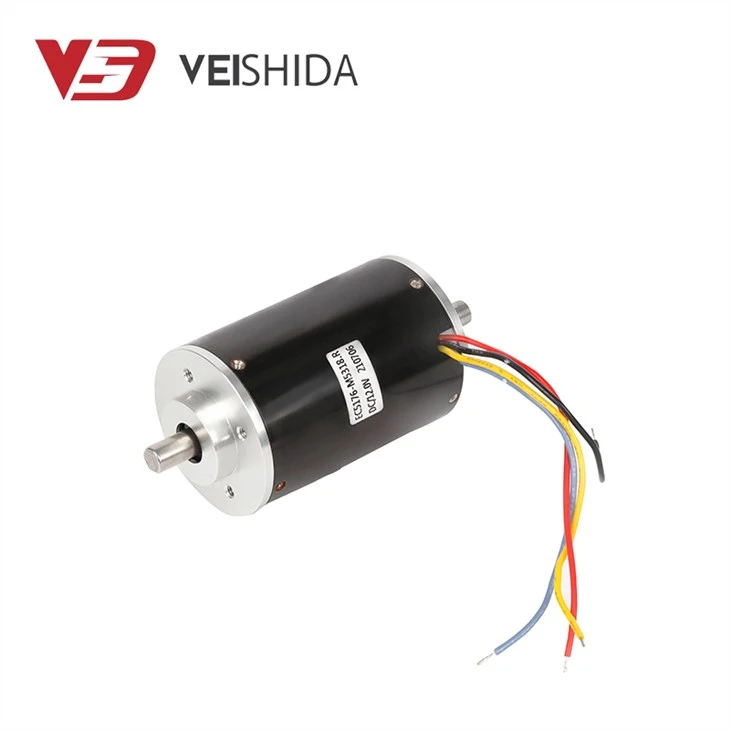

Micro Brushless DC Motors rau kev lag luam

Micro Brushless DC Motors rau kev lag luam muaj kev ua haujlwm siab, tsis tshua muaj suab nrov, kev ua haujlwm ruaj khov, tsis muaj kev cuam tshuam thiab kev ua haujlwm ntev. Cov zis ncej yog 16 ± 0.5 hli ntev, cov tsos ntawm lub cev muaj zog txais electrophoresis / tshuaj tsuag (dub, qhov nyuaj ntawm cov ntsev tsuag 48H txheej txheem), ferrite hlau nplaum, txo cov pa phem, feem ntau yog siv rau agitators, grinders, centrifuges, hluav taws xob li qub, shredders, thiab lwm yam.

Txheej txheem cej luam

Warranty	3 hli-1xyoo
Qhov Chaw Keeb Kwm	Guangdong, Suav teb
Hom Lub Npe	Vshida
Qauv nab npawb	VBL-5176
Kev siv	Cov twj tso kua mis, cua twj, mixers, grinders, kho mob mixers, centrifuges, hluav taws xob li qub, ATM machine, vending machine, shredders, tsheb, kiv cua, khoom siv hauv tsev, tej thaj chaw deb tswj qauv, chaw ua hauj lwm automation khoom, lub tshuab nqus tsev vacuum, infinite zog cov cuab yeej, khoom kho mob , tsheb massage rooj, thiab lwm yam.
Hom	BLDC lub cev muaj zog
Qhov hnyav	TBD (qhov sib txawv qhov hnyav sib txawv)
Cheebtsam	Diversifed
Kev tsim kho	Permanent Magnet
Kev sib hloov	Tsis txhuam
Tiv thaiv Feature	Customized
Kev ua tau zoo	85%
Khoom npe	Micro lub cev muaj zog
Rated Voltage	12.0V / 24.0V
Pib tam sim no	9.926 A / 5.612 A
Pib torque	294.962 m.m os
Cov nqe lus them nqi	30% ua ntej, 70% tshuav nyiaj li cas
Qhov ntev	76 * 25.8 hli
Customize	Txais



Tuam txhab Highlights



Muaj peev xwm muab khoom

Muaj peev xwm muab khoom: 4500000 Daim / Daim Ib Hlis dc lub cev muaj zog

Ntim & Xa

Pem hauv ntej ntim ntawm lub thawv ua npuas ncauj: 350 * 265 * 280mm

Thawv sab nrauv: 365 * 275 * 320mm

Qhov hnyav 16.7kg / 350pcs



Product Description

Qhov nruab nrab ntawm ob lub hlis los tsim lub cev muaj zog tshiab



Khoom Parameter



VOLTAGE		TSIS PUB		NTAWM MAXIMUM EFFICIENCY				Pib
Kev ua haujlwm RANGE	NOMINAL V	HLUB r / min	Tam sim no A	HLUB r / min	Tam sim no A	TORQUE mN.m	OUTPUT W	TORQUE mN.m	Tam sim no A
8~26	12	3563	0.560	2879	2.358	56.613	17.069	294.962	9.926
8~26	24	3454	0.312	2795	1.323	68.413	20.024	358.558	5.612

Khoom Loj



Performance Curve

Cov lus qhia saum toj no yog rau kev siv nkaus xwb, hom thiab cov tsis muaj qhov tshwj xeeb mini brushless dc motors tuaj yeem hloov kho.



Khoom Feature

Micro Brushless DC Motors rau kev lag luam tsis muaj txhuam, tsis tshua muaj kev cuam tshuam, tsis tshua muaj suab nrov, kev tswj ceev ceev, kev ua haujlwm siab, kev ua haujlwm ruaj khov, kev pab lub neej ntev thiab lub zog tas li.

Khoom Paub meej

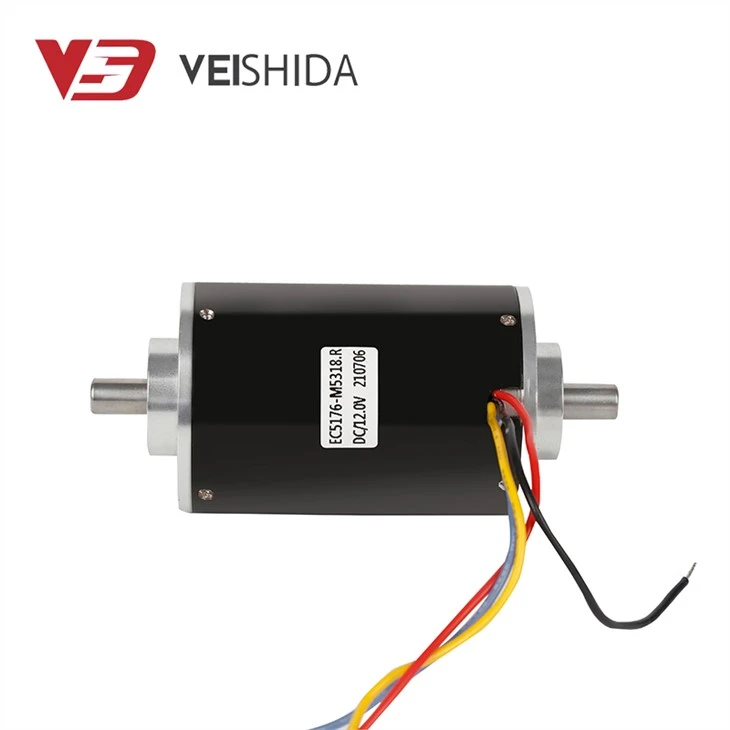

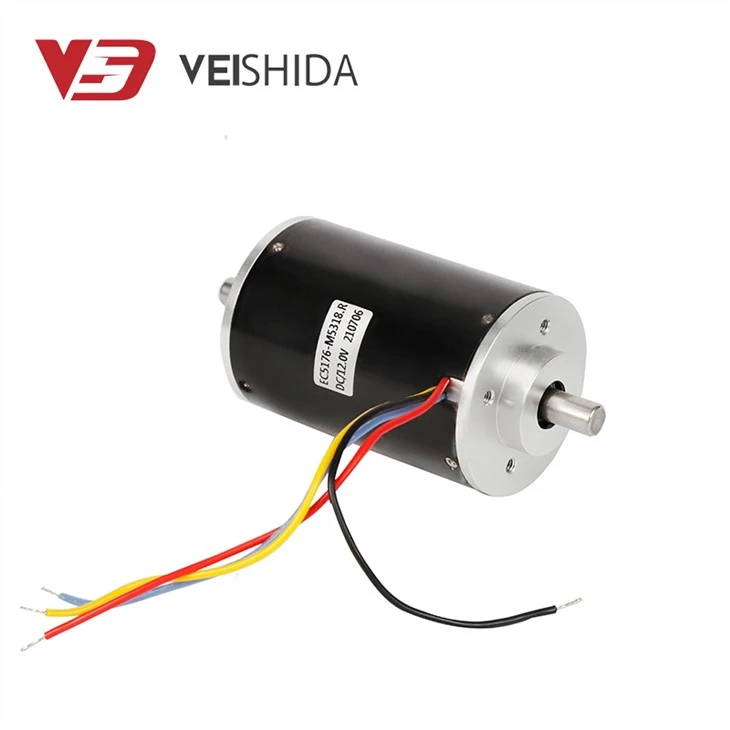

	100% qhov tseeb duab
Rotor: ntshiab tooj liab hlau qhov txhab, hlau zoo core, kub tsis kam, txo lub zog noj, txo tam sim no kuj		Bearings: xaiv hom bearings kom txo lub cev muaj zog suab nrov thiab xyuas kom zoo (cov kabmob tuaj yeem kho tau)
	100% qhov tseeb duab
Lub hau kawg: siv cov ntaub ntawv zoo raw khoom los ua kom lub neej ua haujlwm, txhim kho lub rotor ntawm lub cev muaj zog, thiab muaj cov nyhuv tshav kub.		Chassis: Cov ntaub ntawv zoo nrog siab hardness, kub tsis kam, corrosion kuj, hnav tsis kam thiab xeb kuj raug xaiv, thiab kev pabcuam lub neej ntev dua



Competitive Advantage

1. Nyob rau hauv cov txheej txheem ntawm kev koom tes, peb muaj qhov zoo ntawm kev ua haujlwm yooj yim, kev xa khoom raws sijhawm thiab kev pabcuam hauv chaw, thiab muab kev pabcuam customized rau cov neeg siv khoom.

2. Zoo meej ua ntej muag thiab kev pab cuam tom qab muag thiab kev txhawb nqa, nws yog ib qho tsis tshua muaj kev koom tes ntev ntawm ntau lub tuam txhab.

3. Lub Hoobkas ncaj qha kev tsim khoom thiab muag khoom, kev ruaj ntseg zoo, qee tus nqi kom zoo dua hauv kev ua haujlwm ntawm lub cev muaj zog

4. Cov txheej txheem ntau lawm automated speeds cov zis ntawm motors. Qhov nruab nrab txhua hnub tso zis ntawm lub cev muaj zog hauv peb lub Hoobkas tshaj 200, 000 units, uas tuaj yeem ua tau raws li qhov loj ntawm cov neeg siv khoom xaj.

5. Muab kev pabcuam ODM / OEM rau cov neeg siv khoom



Lub tuam txhab muaj zog



Daim ntawv pov thawj khoom



Ib txhia ntawm peb cov neeg koom tes



Daim ntawv thov

Peb tau cog lus rau micro brushless DC motors rau kev lag luam rau ntau xyoo, npog feem ntau ntawm European thiab Asmeskas kev lag luam, thiab tos ntsoov los ua koj tus khub mus sij hawm ntev hauv Suav teb.

Thauj Ntim

Shockproof ua npuas ncauj ntim, haum thawv loj.Yog tias koj muaj kev xav tau tshwj xeeb, thov hu rau peb ua ntej.



Yuav Cov Lus Qhia

Yog tias koj xav tau cov ntaub ntawv tshwj xeeb txog lwm lub cev muaj zog, thov hu rau peb thiab peb tuaj yeem ua cov lus pom zoo kom ntseeg tau tias koj pom cov khoom tsim nyog rau koj

Kev Them Nyiaj & Xa



FAQ

1. Hom motors koj tuaj yeem muab tau?

Tam sim no, peb tsuas yog muab micro motors, suav nrog brushless DC motors, hollow khob motors, brushed DC motors, hub motors, iav motors, twj tso kua mis motors, solenoid valve motors, thiab lwm yam Tam sim no, peb lub tuam txhab tsom rau kev tsim ntau hom motors nrog. voltages ntawm 1.5VDC thiab 36VDC. Lub cev txoj kab uas hla yog nruab nrab ntawm 10 thiab 75 mm.



2. Koj puas tuaj yeem xa kuv daim ntawv teev nqi?

Rau tag nrho peb cov motors, lawv raug kho raws li cov kev xav tau sib txawv xws li lub plhaub sab nraud, qhov ntev ntev, nrog lossis tsis muaj qhov cua qhov, qhov voltage, ceev, thiab lwm yam. Cov nqi kuj txawv nyob ntawm seb muaj pes tsawg. Yog li ntawd nws yog ib qho nyuaj rau peb muab ib daim ntawv teev nqi. Yog tias koj tuaj yeem qhia koj cov ncauj lus kom ntxaws thiab ntau npaum li cas, peb yuav muab koj tus nqi kwv yees li cas peb tuaj yeem muab rau koj.



3. Lub sijhawm ua haujlwm rau kev txiav txim li cas?

Rau kev txiav txim ib txwm, lub sij hawm coj mus kuaj yog 10-20 hnub, thiab lub sij hawm xa tuaj yog li 25 hnub. Lub sijhawm tshwj xeeb yuav luv dua lossis ntev dua raws li qhov ntau ntawm cov qauv sib txawv.



4. Koj puas tuaj yeem tsim lub cev muaj zog tshiab yog tias peb tuaj yeem muab tus nqi pwm?

Yog lawm. Thov qhia rau peb paub koj qhov voltage, ceev, kos duab kos duab thiab lwm yam tsis, lub Hoobkas yuav ncaj qha npaj cov ntaub ntawv pov thawj rau koj.
