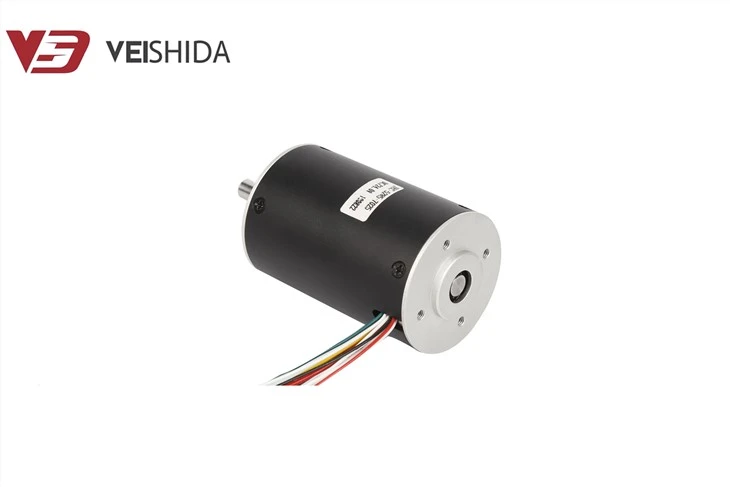

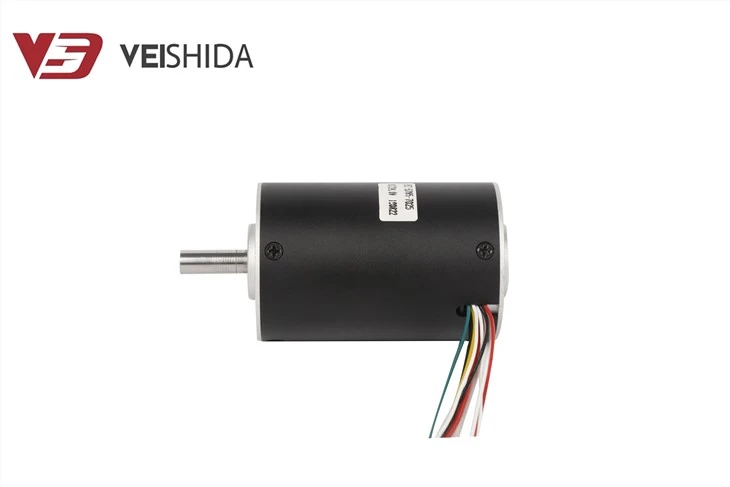

Electric Brushless 56mm DC Tsav
Sab nraud txoj kab uas hla: 52mm,
Sab hauv txoj kab uas hla: 36mm;
Ntev 85mm
Electric Brushless 56mm DC Tsav yog dav siv hauv kev kho mob, kev zoo nkauj, kev saib xyuas kev noj qab haus huv ntawm niam thiab menyuam, tsev ntse, tsheb, chaw ua haujlwm, qauv dav hlau, khoom ua si thiab qauv, neeg hlau thiab lwm yam haujlwm. Peb muaj ntau xyoo ntawm kev paub nyob rau hauv micro-motor ntau lawm thiab kev tshawb fawb thiab kev loj hlob, escort koj cov khoom, thiab muab cov neeg muas zaub nrog saj zawg zog thiab kev customized kev pab cuam.
Hauj lwm lawm
Txheej txheem cej luam
Warranty | 3 hli-1xyoo |
Qhov Chaw Keeb Kwm | Guangdong, Suav teb |
Hom Lub Npe | Vshida |
Qauv nab npawb | VBL-5285 |
Kev siv | Cov cuab yeej hluav taws xob, lub twj tso kua mis micro, micro li qub, ntsuas ntsuas, cov cuab yeej kho mob, cov khoom siv hauv tsev ntse, cov khoom siv rau niam thiab menyuam, kev tu tus kheej, tsheb, khoom siv zaws, khoom siv dag zog, kev lag luam, thiab lwm yam. |
Hom | Brushless dc lub cev muaj zog |
Qhov hnyav | TBD (qhov sib txawv qhov hnyav sib txawv) |
| Cov kabmob | Cov menyuam bearings lossis roj-impregnated bearings |
Cheebtsam | Diversifed |
Kev tsim kho | Permanent Magnet |
Kev sib hloov | Tsis txhuam |
| Voltage ntau | 8-26 V |
| Rated zog | 15-120 W |
| Rated voltage | 24 V |
| Rated tam sim no | 1.735（A） |
| Rated ceev | 3429 (rpm) |
| Rated torque | 101.85 (NM) |
| Qhov ntev | 52 * 85 (mm) |
Kev ua tau zoo | 85 feem pua |
Khoom npe | Micro lub cev muaj zog |
Customized | txais |
Daim ntawv pov thawj | ua kom tiav |
Tuam txhab Highlights
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 4500000 Daim / Daim Ib Hlis dc lub cev muaj zog
Ntim & Xa
Ntim Cov Lus Qhia
Micro motor packing: Carton Box Peb tus qauv shipping cim rau txhua tus qauv yog raws li hauv qab no Q'ty: pcs NW: kgs GW: kgs Meas.: L * H * W cm Koj tus kheej shipping qhia yog txais tos.
Chaw nres nkoj: Shenzhen / HongKong
Product Description
Qhov nruab nrab ntawm ob lub hlis los tsim lub cev muaj zog tshiab
Khoom Parameter
VOLTAGE | TSIS PUB | NTAWM MAXIMUM EFFICIENCY | Pib | ||||||
Kev ua haujlwm RANGE | NOMINAL V | HLUB r / min | Tam sim no A | HLUB r / min | Tam sim no A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | Tam sim no A |
8~16 | 12 | 2608 | 0.251 | 2293 | 1.826 | 74.29 | 17.835 | 613.92 | 13.263 |
| 18~26 | 24 | 3787 | 0.181 | 3429 | 1.735 | 101.85 | 36.578 | 178.38 | 16.637 |
Khoom Loj
Performance Curve
Cov lus qhia saum toj no yog rau kev siv nkaus xwb, hom thiab cov tsis muaj qhov tshwj xeeb brushless DC motors tuaj yeem hloov kho.
Khoom Feature
Kev ua haujlwm ruaj khov, nqa tau yooj yim, kev ua haujlwm siab, kev tsim hluav taws xob tsawg, tsis muaj suab nrov. Me me, siab torque, high efficiency, txheej rotor qauv, direct tsav, customized technical data (tso zis ncej, txhuas hlau, voltage, ceev, mounting qhov, thiab lwm yam)
Khoom Paub meej
| 100 feem pua qhov tseeb duab |
|
Rotor: ntshiab tooj liab hlau qhov txhab, hlau zoo core, kub tsis kam, txo lub zog noj, txo tam sim no kuj | Lub hau kawg: siv cov ntaub ntawv zoo zoo los ua kom lub neej kev pab cuam, txhim kho lub rotor ntawm lub cev muaj zog, thiab muaj cov nyhuv thermal dissipation. | |
| 100 feem pua qhov tseeb duab |
|
Bearings: xaiv hom bearings kom txo lub cev muaj zog suab nrov thiab xyuas kom zoo (cov kabmob tuaj yeem kho tau) | Chassis: Cov ntaub ntawv zoo nrog siab hardness, kub tsis kam, corrosion kuj, hnav tsis kam thiab xeb kuj raug xaiv, thiab kev pabcuam lub neej ntev dua. |
Peb Qhov Kev Pabcuam
1. High compatibility, no brushless lub cev muaj zog yog tshwj xeeb uas tsim los rau micro twj, micro valve, ntsuas series khoom.
2. Kev ua tau zoo, lub plhaub exquisite txhim khu kev ua kom sov dissipation, kom nws tuaj yeem ua haujlwm tau zoo thiab zoo dua.
3. Cov qauv tsim tshwj xeeb, siab-purity tooj liab winding tsim, kub tsis kam, tuaj yeem ua kom zoo tshaj plaws.
4. Lub ntsiab kom zoo dua, lub brushless crawler lub cev muaj zog tsis tshua muaj kev co, tsis tshua muaj suab nrov, precision tsim rau siab tshaj plaws zog hloov dua siab tshiab, nws yog ib qho zoo heev accessory!
5. Yog tias ib yam khoom muaj teeb meem zoo tom qab tau txais cov khoom, peb lav muab kev txaus siab rau koj los yog hloov lub cev muaj zog rau koj txaus siab, thiab muab kev pabcuam tsim kho thiab OEM, ODM kev pabcuam
Lub tuam txhab muaj zog
Daim ntawv pov thawj khoom
Ib txhia ntawm peb cov neeg koom tes
Peb tau cog lus rau kev lag luam tsav tsheb ntau xyoo, npog feem ntau ntawm European thiab Asmeskas kev lag luam, thiab tos ntsoov los ua koj tus khub mus sij hawm ntev hauv Suav teb.
Daim ntawv thov
Thauj Ntim
Shockproof ua npuas ncauj ntim, haum thawv loj.Yog tias koj muaj kev xav tau tshwj xeeb, thov hu rau peb ua ntej.
Yuav Cov Lus Qhia
Kev Them Nyiaj & Xa
Lub sijhawm shipping
Yog tias koj xav tau cov ntaub ntawv tshwj xeeb ntawm lwm lub cev muaj zog, thov hu rau peb thiab peb tuaj yeem ua cov lus pom zoo los xyuas kom koj pom cov khoom tsim nyog rau koj.Ua lub neej zoo, ua tsaug!
