me bldc lub cev muaj zog

Siv cov thev naus laus zis thiab cov ntaub ntawv zoo, VSD lub me me bldc motor series muaj ntau yam torques, voltages thiab qhov ntau thiab tsawg kom tau raws li ntau yam kev xav tau. Los ntawm drones thiab me me robots mus rau kev pab neeg hlau thiab me me actuators, peb cov motors sawv tawm rau lawv lub teeb yuag tsim, siab dua torque tso zis thiab ntau zog. Nrog rau lawv cov kev ua tau zoo tshaj plaws thiab kev tsim qauv ntawm ob lub pob, VSD me BLDC motors ua tau zoo thaum cuam tshuam nrog kev cuam tshuam sab nraud xws li kub, siab thiab vibration, ua kom lub neej ntev dua thiab qis dua tus nqi.



VSD lub me me bldc lub cev muaj zog yog cov lus pom zoo ntawm cov khoom kub

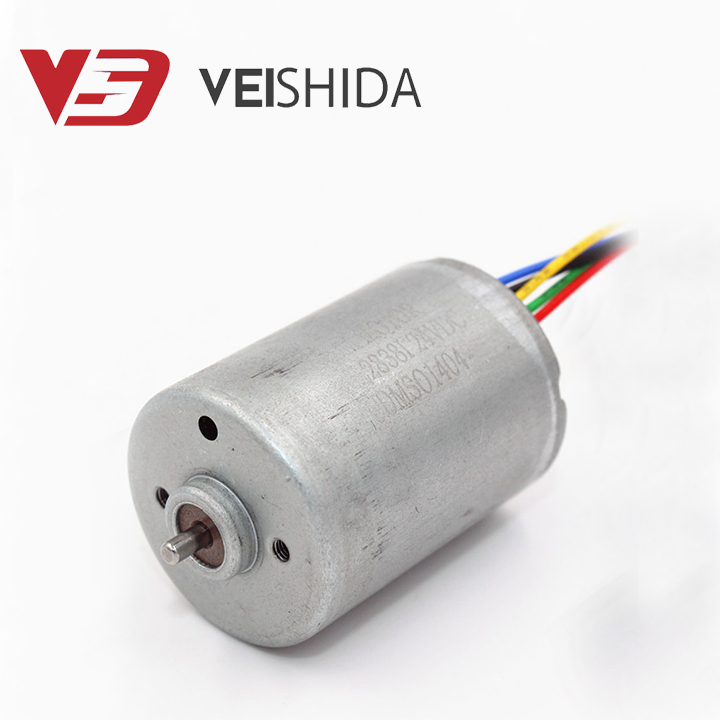

Khoom 1:

Qauv nab npawb:	VBL-2838
Tej kev siv:	Cov plaub hau clippers, cordless xyaum
Lub ntsiab kub qhov chaw:	Kev kub ceev, mini, Ob chav pob bearings
Cov khoom siv:	Qutput ncej, Lead hlau, Connector, Mounting qhov, Ceev, Voltage



Motor Parameters:

VOLTAGE		TSIS PUB		NTAWM MAXIMUM EFFICIENCY				Pib
Siv tau ntau	Rated tus nqi V	Ceev r/min	Tam sim no A	Ceev r/min	Tam sim no A	Torque mN.m	Hwj chim W	Torque mN.m	Tam sim no A
8~16	12	3044	0.096	2294	0.293	7.59	1.825	30.81	0.897
18~26	24	6133	0.132	4879	0.513	13.36	6.826	65.32	1.997

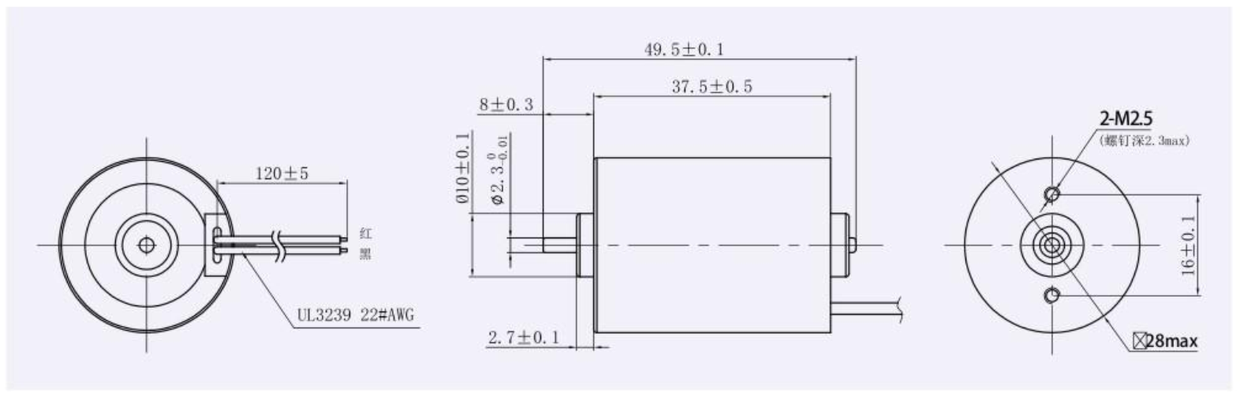

Brushless lub cev muaj zog tsim:

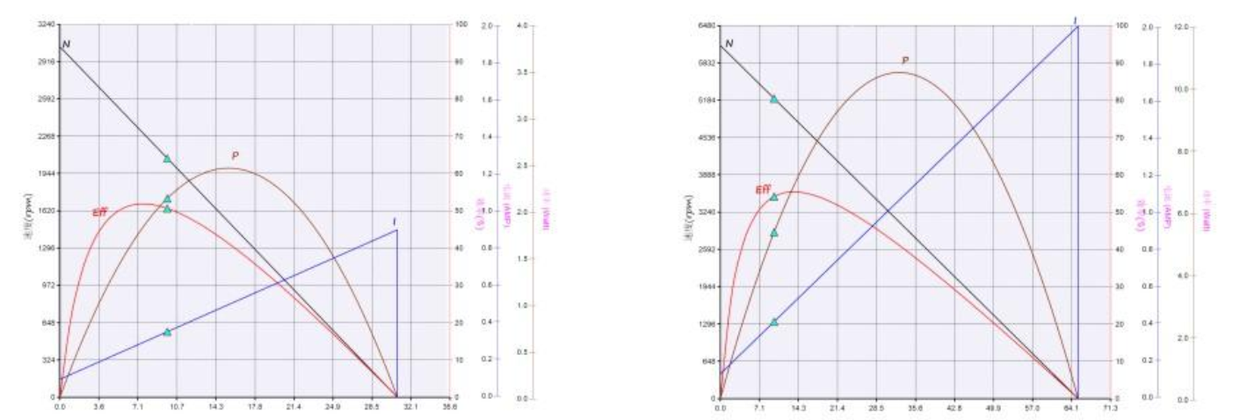

Motor Performance:



Khoom siv 2:

Qauv nab npawb:	VBL-1725
Tej kev siv:	micro twj, cov cuab yeej phais
Lub ntsiab kub qhov chaw:	Kev kub ceev, Ob chav pob bearings, lub teeb yuag
Cov khoom siv:	Qutput ncej, Lead hlau, Connector, Mounting qhov, Ceev, Voltage



Motor Parameters:

VOLTAGE		TSIS PUB		NTAWM MAXIMUM EFFICIENCY				Pib
Siv tau ntau	Rated tus nqi V	Ceev r/min	Tam sim no A	Ceev r/min	Tam sim no A	Torque mN.m	Hwj chim W	Torque mN.m	Tam sim no A
3.5~7	5	6147	0.064	4502	0.174	0.78	0.369	2.92	0.476
3.5~7	6	12741	0.102	10149	0.399	1.317	1.400	6.47	1.563



Brushless lub cev muaj zog tsim:



Motor Performance:



Khoom muag 3:

Qauv nab npawb:	VBL-3050
Tej kev siv:	rehabilitation robots, me me robots
Lub ntsiab kub qhov chaw:	Lub teeb yuag, lub neej ntev, kev ua haujlwm siab dua
Cov khoom siv:	Qutput ncej, Lead hlau, Connector, Mounting qhov, Ceev, Voltage



Motor Parameters:

VOLTAGE		TSIS PUB		NTAWM MAXIMUM EFFICIENCY				Pib
Siv tau ntau	Rated tus nqi V	Ceev r/min	Tam sim no A	Ceev r/min	Tam sim no A	Torque mN.m	Hwj chim W	Torque mN.m	Tam sim no A
8~16	12	3800	0.119	3054	0.488	10.44	3.342	53.25	1.997
18~26	24	5486	0.108	4482	0.482	5.19	2.438	28.38	2.154



Brushless lub cev muaj zog tsim:



Motor Performance:



Khoom siv 4:

Qauv nab npawb:	VBL-3626
Tej kev siv:	me me actuators, kev pabcuam neeg hlau
Lub ntsiab kub qhov chaw:	kev ua haujlwm siab, kev ua haujlwm siab dua, lub teeb yuag
Cov khoom siv:	Qutput ncej, Lead hlau, Connector, Mounting qhov, Ceev, Voltage



Motor Parameters:

VOLTAGE		TSIS PUB		NTAWM MAXIMUM EFFICIENCY				Pib
Siv tau ntau	Rated tus nqi V	Ceev r/min	Tam sim no A	Ceev r/min	Tam sim no A	Torque mN.m	Hwj chim W	Torque mN.m	Tam sim no A
8~16	12	7014	0.258	5525	0.957	11.31	6.543	53.26	3.550
18~26	24	4338	0.098	3276	0.302	9.67	3.318	39.50	0.933



Brushless lub cev muaj zog tsim:



Motor Performance:



Khoom siv 5:

Qauv nab npawb:	VBL-3657
Tej kev siv:	micro twj tso kua mis, pas dej da dej, tsheb
Lub ntsiab kub qhov chaw:	Tsis tshua muaj suab nrov, direct tsav, mini, efficiency ntau dua
Cov khoom siv:	Qutput ncej, Lead hlau, Connector, Mounting qhov, Ceev, Voltage



Motor Parameters:

VOLTAGE		TSIS PUB		NTAWM MAXIMUM EFFICIENCY				Pib
Siv tau ntau	Rated tus nqi V	Ceev r/min	Tam sim no A	Ceev r/min	Tam sim no A	Torque mN.m	Hwj chim W	Torque mN.m	Tam sim no A
8~16	12	5067	0.172	4324	1.002	17.987	8.145	122.734	5.833
18~26	24	8648	0.146	7491	0.944	20.401	16.003	152.414	6.111



Brushless lub cev muaj zog tsim:



Motor Performance:



Khoom siv 6:

Qauv nab npawb:	VBL-6570
Tej kev siv:	Dej twj tso kua mis, cua twj tso kua mis, tov khoom, centrifuge
Lub ntsiab kub qhov chaw:	kev ua haujlwm siab, Kev kub ceev, Ob chav pob bearings
Cov khoom siv:	Qutput ncej, Lead hlau, Connector, Mounting qhov, Ceev, Voltage



Motor Parameters:

VOLTAGE		TSIS PUB		NTAWM MAXIMUM EFFICIENCY				Pib
Siv tau ntau	Rated tus nqi V	Ceev r/min	Tam sim no A	Ceev r/min	Tam sim no A	Torque mN.m	Hwj chim W	Torque mN.m	Tam sim no A
20~26	24	1055	0.200	870	0.940	167.573	15.266	955.343	4.420



Brushless lub cev muaj zog tsim:



Motor Performance:



Vim li cas thiaj xaiv VSD lub me me bldc lub cev muaj zog (coj VBL-2838 ua piv txwv)



Ntau qhov tshwj xeeb nrog kev ua haujlwm siab

VSD cov kab ntawm cov tshuab tsis txhuam me me muaj ntau yam ntawm torques thiab voltages (6V, 12V, 24V) kom tau raws li qhov xav tau ntawm txhua yam los ntawm cov cuab yeej precision mus rau cov khoom siv. Lub cev muaj zog tuaj yeem ncav cuag 7, 000 RPM ntawm qhov ua tau zoo tshaj plaws, nrog kev ua haujlwm ntawm 85 txog 90 feem pua. Piv nrog rau lwm cov khoom lag luam hauv kev lag luam, VSD lub tshuab tsis siv lub tshuab me me yog sib dua, muaj zog dua thiab muaj lub zog ntau dua, ua kom pom tseeb qhov zoo ntawm kev tsim qauv zoo.



Lub neej ntev thiab kev ntseeg siab

VSD lub cev muaj zog yog tsim los nrog ob lub pob bearings, uas txo cov neeg kho tshuab kev sib txhuam, zoo heev rau kev pab cuam lub neej, thiab ua rau installation yooj yim dua. Qhov kev tsim no tsis tsuas yog txo qhov kev xav tau ntawm kev saib xyuas, tab sis kuj tseem txhim kho kev ntseeg siab ntawm lub cev muaj zog. Cov ntaub ntawv zoo thiab cov cuab yeej siv thev naus laus zis tau siv sab hauv los xyuas kom meej tias lub cev muaj zog tuaj yeem ua haujlwm tau zoo hauv cov cheeb tsam nyuaj thiab tiv thaiv kev cuam tshuam los ntawm lwm yam xws li kub, siab thiab kev co.



Tus nqi qis thiab kev ua haujlwm siab

Txawm hais tias qhov kev ua tau zoo tshaj plaws thiab tsim qauv ntawm VSD lub tshuab tsis muaj txhuam me me, lawv cov nqi tsim khoom tau tswj tau zoo, ua rau lawv muaj kev sib tw hauv kev ua lag luam. Tshwj xeeb tshaj yog nyob rau hauv lub tshav pob ntawm cov kev pab cuam customized, VSD muaj peev xwm muab kev customized kev daws teeb meem raws li cov kev xav tau tshwj xeeb ntawm cov neeg siv khoom, npog cov kev txhawb nqa ntawm lub tshuab tsav, tshuab xa mus thiab lwm yam, kom ntseeg tau tias cov neeg siv khoom tuaj yeem tau txais cov txiaj ntsig zoo tshaj plaws ntawm daim ntawv thov. tus nqi qis dua.



Kev lag luam-kev txhawb nqa kev lag luam

VSD's me me brushless motors tsis tsuas yog muaj cov txheej txheem kev sib xyaw ua ke thiab cov tsav hauv lub cev, tab sis kuj tseem txhawb nqa cov tshuab tsav tsheb kom tau raws li cov kev xav tau sib txawv. Lub tuam txhab muab tag nrho cov kev pabcuam customized los kho qhov voltage, torque thiab tsim rau cov kev xav tau tshwj xeeb, kom ntseeg tau tias txhua lub cev muaj zog yog sib npaug rau cov neeg siv khoom xav tau.



Tsawg tsis ua hauj lwm tus nqi thiab ib puag ncig kev ua haujlwm

Nrog nws cov khoom siv hluav taws xob sib txuas tau zoo thiab tsis siv cov qauv tsim, VSD lub tshuab tsis siv lub tshuab me me kom tsis txhob muaj teeb meem tsis ua hauj lwm los ntawm txhuam hnav hauv cov tsoos motors, txo cov sij hawm poob thiab cov nqi tu. Nyob rau tib lub sijhawm, nws cov haujlwm ua haujlwm tau zoo kuj txhais tau tias kev siv hluav taws xob qis dua, raws li cov qauv kev niaj hnub ib puag ncig, yog kev xaiv kev lag luam thiab ib puag ncig zoo rau kev siv mus ntev.



me me bldc lub cev muaj zog daim ntawv thov teb



Vim hais tias ntawm nws cov high efficiency, compact, tsis tshua muaj txij nkawm thiab meej tswj cov yam ntxwv, me me bldc lub cev muaj zog yog dav siv nyob rau hauv ntau lub teb, los ntawm cov neeg siv khoom siv hluav taws xob rau kev siv, thiab nws daim ntawv thov teb npog yuav luag txhua yam ntawm lub teeb thiab precision mechanical khoom.



Consumer electronics: Hauv kev lag luam ntawm cov khoom siv hluav taws xob, me me bldc lub cev muaj zog tau dhau los ua lub zog tseem ceeb ntawm ntau yam khoom siv. Piv txwv li, hauv cov plaub hau txiav, VSD's VBL-2838 series motors yog qhov zoo tagnrho vim lawv cov qauv tsim, kev ua haujlwm siab thiab kev ua haujlwm tsis zoo.



Robots: Nrog rau txoj kev loj hlob sai ntawm kev lag luam neeg hlau ntse, cov tshuab me me brushless tau dhau los ua ib qho tseem ceeb ntawm kev pabcuam neeg hlau thiab cov neeg hlau me. Robots feem ntau xav tau lub cev muaj zog nrog lub teeb yuag, kev ua haujlwm siab thiab tsis tshua muaj suab nrov los xyuas kom ruaj khov thiab raug lub zog tso tawm thaum lub sijhawm ua haujlwm ntev. VSD's brushless motors tau siv dav hauv cov khoom siv hauv tsev, cov khoom siv tu tsis siv neeg thiab kev kawm neeg hlau los muab kev txhawb zog du thiab txhim khu kev qha.



Cov cuab yeej thiab cov khoom siv hluav taws xob: Cov twj siv hluav taws xob me me kuj tau siv dav hauv cov cuab yeej hluav taws xob, xws li cov cuab yeej siv tsis muaj zog, cov cuab yeej sib tsoo thiab cov cuab yeej txiav. Cov cuab yeej no tso siab rau cov zis siab torque thiab cov yam ntxwv ua haujlwm qis kom ua haujlwm tau zoo dua thiab siv tau ntev. Lub siab torque tsim ntawm VSD's brushless motors tshwj xeeb tshaj yog haum rau cov kev xav tau ntawm cov cuab yeej no, kom ntseeg tau tias cov neeg siv tseem tuaj yeem ua tiav kev ua tau zoo nyob rau hauv kev ua haujlwm siab.



Cov cuab yeej kho mob: Qhov tseeb, kev ntseeg siab thiab kev nyab xeeb ntawm lub tshuab hluav taws xob yog qhov xav tau hauv kev kho mob. Cov me me brushless motors tau dav siv hauv cov twj me me, lub tshuab ua pa, cov khoom siv phais thiab lwm yam cuab yeej kho mob. Nrog rau lawv lub neej ntev thiab qis qis, VSD brushless motors ua tau raws li qhov xav tau ntawm kev ua haujlwm tas mus li thiab ruaj khov ntawm cov khoom siv kho mob.



Ntxiv nrog rau cov teb saum toj no, lawv kuj tau siv dav hauv cov khoom siv hauv tsev, hloov lub rooj zaum hauv tsheb, cov ntaub thaiv hluav taws xob, cov cuab yeej precision thiab lwm yam.



Tiv tauj peb rau ib qho kev tsocai

Yog tias koj tab tom nrhiav kev ua haujlwm siab me me bldc lub cev muaj zog, VSD, ua cov chaw tsim khoom thiab cov muag khoom hauv Suav teb, yuav muab cov khoom zoo thiab cov kev pabcuam zoo tshaj rau koj. Peb ntau yam ntawm BLDC motors me yog tsim rau ntau yam kev thov xws li drones, kev pabcuam neeg hlau, thiab cov cuab yeej hluav taws xob.



Txawm hais tias koj muaj kev xav tau rau cov khoom tshwj xeeb, lossis xav paub txog cov kev pabcuam customized, thov koj xav tiv tauj peb. Thov sau koj cov ntaub ntawv tiv tauj thiab cov kev xav tau rau cov ncauj lus kom ntxaws txog cov khoom lag luam, cov npe nqi thiab kev txhawb nqa ntau dua. Peb cog lus tias yuav teb rau koj qhov kev thov rau ib qho kev tsocai sai li sai tau 2 teev, kom ntseeg tau tias koj tau txais cov kev daws teeb meem me me bldc lub cev muaj zog kom ntxov li sai tau.
