Cov DC Motors Rau Cov Qauv Tsheb Sib Tw Sib Tw Tsheb thiab Qauv Dav Hlau
Lub cev ntaj DC lub cev muaj zog tsim los ntawm VSD yeej ib txwm tau nyiam los ntawm cov neeg siv khoom rau nws cov kev ua tau zoo thiab ntau yam kev siv. Hom kev muaj zog no yog tus cwj pwm me me, qis pib tam sim no, thiab muaj txiaj ntsig zoo tshaj plaws, xws li cov qauv tsheb, qauv tsheb ciav hlau, thiab qauv kaw.
Hauj lwm lawm
Coreless DC Tsav tsim los ntawm VSD yeej ib txwm tau txais kev nyiam los ntawm cov neeg siv khoom rau nws cov kev ua tau zoo thiab ntau yam kev siv. Hom lub cev muaj zog no yog tus cwj pwm los ntawm nws qhov me me, tsis tshua muaj pib tam sim no, thiab tsis tshua muaj siab pib ceev, ua rau nws tshwj xeeb tshaj yog haum rau cov xwm txheej uas xav tau cov lus teb ceev thiab kev ua haujlwm siab, xws li cov qauv tsheb, qauv tsheb ciav hlau, thiab cov qauv dav hlau.
Tam sim no, ntawm VSD tus qauv Coreless DC Motor cov khoom lag luam, VEC-2838 lub cev muaj zog sawv tawm, nrog tsis muaj kev thauj khoom ceev txog li 92,000 r / min. Raws li cov neeg siv khoom xav tau, VSD's Coreless DC Tsav muaj cov txhuam DC thiab brushless DC series los muab cov kev daws teeb meem zoo tshaj plaws rau cov neeg siv khoom.
Coreless Brushless Tsav mus rau ib kauj ruam ntxiv hauv kev tsim los ntawm kev tshem tawm cov pa roj carbon txhuam thiab commutators hauv cov tsoos coreless brushed motors, hloov lawv nrog cov tswj tsav tsheb rau kev hloov pauv tam sim no. Lub cev muaj zog lub coreless winding yog tsau rau lub puab annular hlau core ntawm lub tsev siv nplaum tshuab, es tsis txhob winding tooj liab hlau nyob ib ncig ntawm lub slots ntawm cov hlau cores raws li nyob rau hauv tsoos brushless motors. Tus kheej-bonding enameled hlau cov ntaub ntawv siv nyob rau hauv qhov tsim no tuaj yeem ncaj qha daim ntawv cog lus thiab tsim tom qab cua sov los yog hnyav kev kho mob, tsis tas yuav tsum tau core winding. Ua tsaug rau qhov kev tsim qauv no, Coreless Brushless Tsav tau txo qis kev poob tam sim no, ua tiav kev ua haujlwm ntawm 80% -90%, deb tshaj li 60% kev ua haujlwm ntawm cov pa roj carbon monoxide.
Txhawm rau ua kom tau raws li cov neeg siv khoom xav tau tus kheej, VSD txhawb nqa ntau yam kev pabcuam customization:
- Ceev, Loj, Voltage: Kev cai voltage ntau ntawm 6V txog 36V.
- Hom kabmob: Cov kev xaiv muaj xws li roj-impregnated bearings, hmoov metallurgy bearings, thiab pob bearings.
Txawm hais tias ua raws li kev ua tau zoo ntawm lub zog ua haujlwm lossis xav tau kev ua kom zoo dua qub, VSD's Coreless DC Motor muab cov kev daws teeb meem zoo tshaj plaws rau cov qauv tsheb, qauv tsheb ciav hlau, thiab cov qauv dav hlau.
VSD Disc Tsav Khoom
| Cov duab khoom |
|
|
|
|
|||||

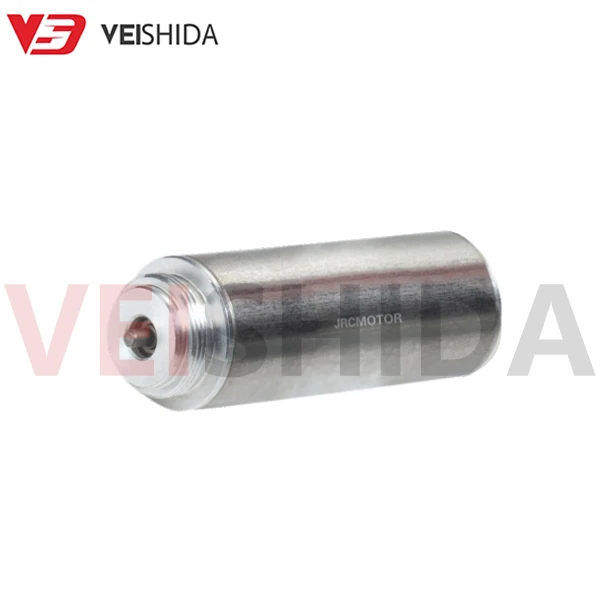

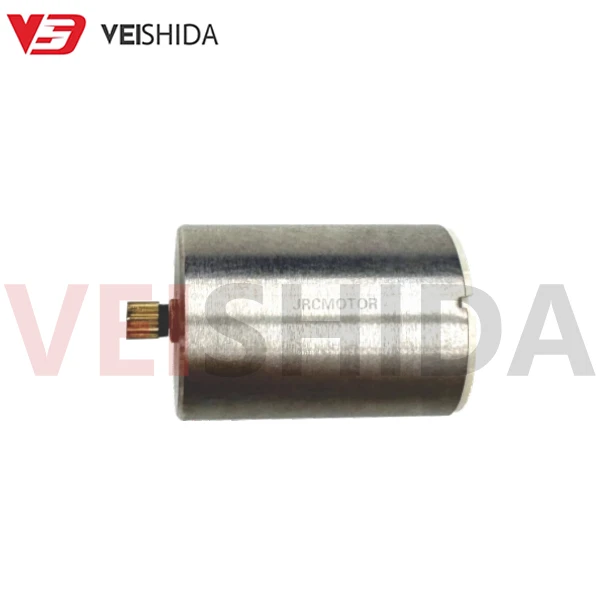

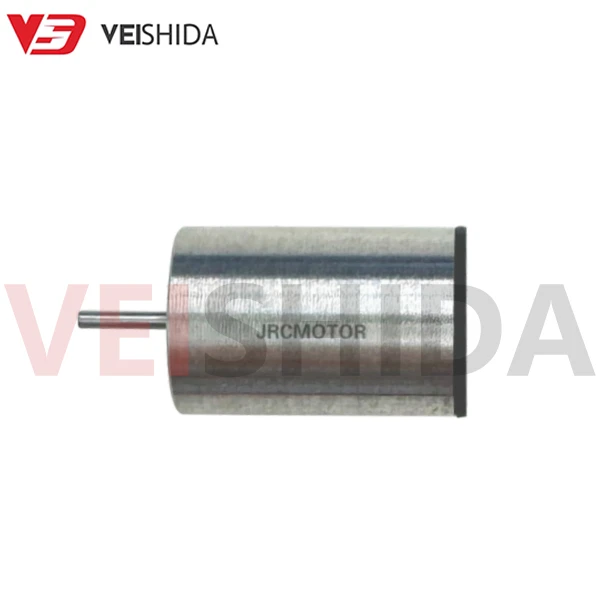

| Tsav Qauv | VEC -1015 | VEC -1218 | VEC -1336 | VEC -1935 | |||||
| Fai fab hov ntau | Kev Ua Haujlwm | 4.2 | 8~16 | 8~14 | 22~26 | 8~14 | - - | 4.2 | 12 |
| Ntxhuab V |
4.2 | 12 | 12 | 24 | 12 | - - | 4.2 | 12 | |
| Tsis muaj nra | Hov ceev r / min |
25398 | 75656 | 30080 | 62215 | 42500 | - - | 5594 | 15999 |
| Txiv kav A |
0.045 | 0.04 | 0.12 | 0.1 | 0.3 | - - | 0.088 | 0.085 | |
| Ntawm siab tshaj plaws efficiency | Hov ceev r / min |
20367 | 65977 | 24010 | 52777 | 37204 | - - | 5379 | 15630 |
| Niaj hnub A |
0.181 | 0.307 | 0.475 | 0.671 | 2.107 | - - | 2.205 | 3.726 | |
| Torque mn.m |
0.216 | 0.416 | 1.373 | 2.095 | 4.523 | - - | 10.031 | 17.243 | |
| Khoom uas tsim tau lawm W |
0.462 | 2.877 | 3.453 | 11.579 | 17.621 | - - | 50.65 | 28.223 | |
| Pib | Torque mn.m |
1.093 | 3.255 | 6.807 | 13.811 | 36.292 | - - | 261.32 | 747.402 |
| Niaj hnub A |
0.734 | 2.091 | 1.878 | 3.752 | 14.804 | - - | 55.229 | 157.797 | |
| Cov Khoom Tsim Qauv |
|
|
|
|
|||||
| Cov khoom lag luam |
|
|
|
|
|||||
| Cov duab khoom |
|
|
|
|
|||||
| Tsav Qauv | VEC -1628 | VEC -1630 | VEC -1819 | VEC -1956 | |||||
| Fai fab hov ntau | Kev Ua Haujlwm | 8~14 | 22~26 | 8~14 | 22~26 | 7.4 | 22~32 | 8~14 | - - |
| Ntxhuab V |
12 | 24 | 12 | 24 | 7.4 | 24 | 12 | - - | |
| Tsis muaj nra | Hov ceev r / min |
6731 | 13906 | 18408 | 37411 | 26300 | 38233 | 30323 | - - |
| Txiv kav A |
0.069 | 0.065 | 0.136 | 0.136 | 0.25 | 0.111 | 0.37 | - - | |
| Ntawm siab tshaj plaws efficiency | Hov ceev r / min |
5363 | 11787 | 15640 | 33250 | 22586 | 33627 | 27352 | - - |
| Niaj hnub A |
0.27 | 0.384 | 0.768 | 1.087 | 1.52 | 1.811 | 3.407 | - - | |
| Torque mn.m |
3.822 | 5.97 | 4.041 | 6.075 | 3.599 | 4.378 | 12.288 | - - | |
| Khoom uas tsim tau lawm W |
2.146 | 7.369 | 6.619 | 21.153 | 8.512 | 15.417 | 35.196 | - - | |
| Pib | Torque mn.m |
18.805 | 39.17 | 26.872 | 54.614 | 25.482 | 36.343 | 125.426 | - - |
| Niaj hnub A |
1.06 | 2.134 | 4.341 | 8.682 | 9.244 | 5.923 | 31.368 | - - | |
| Cov Khoom Tsim Qauv |
|
|
|
|
|||||
| Cov khoom lag luam |
|
|
|
|
|||||
Vim li cas thiaj xaiv VSD cov dc lub cev muaj zog
Nta thiab cov txiaj ntsig ntawm VSD Coreless DC Motors
Compact Qhov Loj: VSD's DC lub cev muaj zog nta ib qho chaw tsim qauv kev teeb tsa, qhov chaw tsawg kawg thiab ua kom zoo tshaj plaws rau cov khoom siv nruj me me.
Tsawg pib pib tam sim no, ultra-high pib nrawm: yuav tsum muaj tsawg tam sim no thaum pib tab sis sai sai nrawm, xa cov hluav taws xob txhawb nqa.
Kev siv cua sov zoo heev: Los ntawm lub ntsej muag zoo nkauj thiab cov ntaub ntawv winding, ua tau zoo txo eddy tam sim no poob, ntxiv ua haujlwm ntev ua haujlwm.
Kev tsim kho siab: tus qauv tsis muaj lub nroog tsis muaj kev txo qis hauv kev ua haujlwm, ua kom cov lus teb sai sai thaum pib ua haujlwm, ua rau nws tsim nyog dua rau cov ntawv thov siab thiab sai sai.
Ntau cov kev xaiv customization: Qhov loj me, thiab bearings (xws li roj-impregnated, lossis cov pob txha me), muab ntau dua yooj yim rau cov khoom lag luam.
Customization lub zog ntawm VSD Coreleless DC Motors
Vsd tsom rau R & D thiab tsim cov DC Motors Cov. Nrog rau xyoo ntawm kev lag luam kev lag luam thiab muaj peev xwm kev lag luam muaj zog, VSD muab cov khoom lag luam cov khoom muaj zog nrog cov khoom lag luam tshwj xeeb.
Lub tuam txhab muaj ib pab pawg ntawm kev paub txog cov kev tsim qauv thiab kev tsim cov kev daws teeb meem raws li cov neeg siv khoom thiab cov kev pabcuam ib-nres los ntawm kev tsim khoom. 10 xyoo dhau los, ntau dua 90% ntawm cov neeg siv khoom tau xaiv peb cov kev pabcuam customized. Ib qho ntxiv, peb muab cov kev pab OEM thiab ODM kom tau raws li cov kev xav tau tshwj xeeb ntawm cov neeg thoob plaws hauv zej zog sib txawv.
Qhov kev ntsuas ntawm kev customization yog qhov dav dav, txawm tias nws yog cov khoom siv lossis kev ua tau zoo ntawm lub cev muaj zog, txhua tus tuaj yeem ua kom haum rau cov kev cai tshwj xeeb. Txhawm rau kom ntseeg tau cov neeg siv khoom txaus siab, peb tau nruab nrog ib txoj kev pabcuam tsim nyog los tsim, muab cov kev pabcuam customization customization nrog tus nqi xa mus txog 99%.
Ntxiv mus, VSD ua haujlwm ze nrog cov koom tes logistics ntev kom ntseeg tau tias txhua pob ntawm cov khoom yog xa tawm kev nyab xeeb thiab raws sijhawm rau cov neeg siv khoom thoob ntiaj teb.
