Coreless Brushless Tsav

VSD's Coreless Brushless Tsav yog lub compact, lub teeb yuag DC lub cev muaj zog ua los ntawm cov khoom zoo txhuas, nrog rau kev tiv thaiv corrosion zoo heev thiab xeb, muab cov khoom ruaj khov thiab txhim khu kev qha. Nws sab hauv yog qhov txhab nrog cov hlau ntshiab tooj liab, uas muaj cov khoom siv hluav taws xob zoo heev thiab cov khoom siv hluav taws xob zoo, thiab tuaj yeem ua haujlwm ruaj khov txawm tias nyob hauv qhov kub thiab txias los yog corrosive ib puag ncig. VSD Factory muaj ntau yam kev hloov kho, suav nrog qhov ntau thiab tsawg (xws li 16mm, 30mm, thiab lwm yam), voltages (12V, 24V, 36V, thiab lwm yam), tso zis shafts, txhuas terminals thiab mounting qhov rau ntau yam servo daim ntawv thov.



Rau cov kev siv ntau dua, cov koob lub cev muaj zog tuaj yeem nruab nrog lub encoder built-in rau kaw-voj tswj, lossis nrog kev ua haujlwm siab txo qis gearbox kom zoo dua qhov tseeb thiab kev ua haujlwm tawm. Nyob rau tib lub sij hawm, lub dual pob bearing tsim kom ntseeg tau tias ntsiag to thiab ntev lub cev muaj zog ua haujlwm. Txawm hais tias yog ib tus kws tsim khoom lossis tus neeg muag khoom tshwj xeeb, VSD muab cov kev pabcuam wholesale thiab txhawb nqa OEM / ODM xaj kom ua tau raws li qhov xav tau ntawm tus kheej cov khoom tsim kho rau ntau hom kev lag luam automation, neeg hlau thiab lwm yam khoom siv hnyav.



Kev cia siab rau Tuam Tshoj cov chaw tsim khoom siab heev, VSD tus kheej lub Hoobkas tau dhau ISO9001: 2015 thiab IATF16949: 2016 daim ntawv pov thawj zoo los xyuas kom meej tus qauv zoo ntawm txhua lub cev muaj zog. Lub Hoobkas tsis tsuas yog txhawb nqa kev mus ntsib, tab sis kuj tseem muaj cov qauv ua haujlwm tshwj xeeb, thiab lub voj voog ntau lawm yog hloov tau thiab nrawm: txhuam cov motors raug xa hauv 7 hnub, brushless motors raug xa hauv 15-25 hnub. Raws li Tuam Tshoj Chaw Tsim Tshuaj thiab Chaw Tsim Khoom ntawm hwm Coreless Brushless Tsav, VSD tau muab cov kev daws teeb meem zoo tshaj plaws rau ntau dua 80% ntawm cov neeg siv khoom hauv ntiaj teb thiab yog ib tus neeg koom tes ntseeg tau.





VSD kuj muaj ntau yam series npog 10mm, 16mm, 32mm, 35mm, thiab lwm yam, kom tau raws li cov kev xav tau ntawm daim ntawv thov sib txawv, thiab tuaj yeem ua raws li cov neeg siv khoom xav tau los muab cov kev daws teeb meem siab thiab kev ua haujlwm siab micromotor.

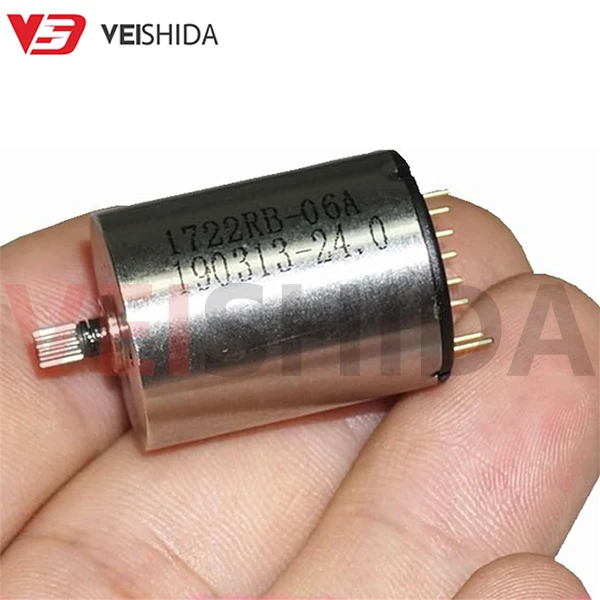

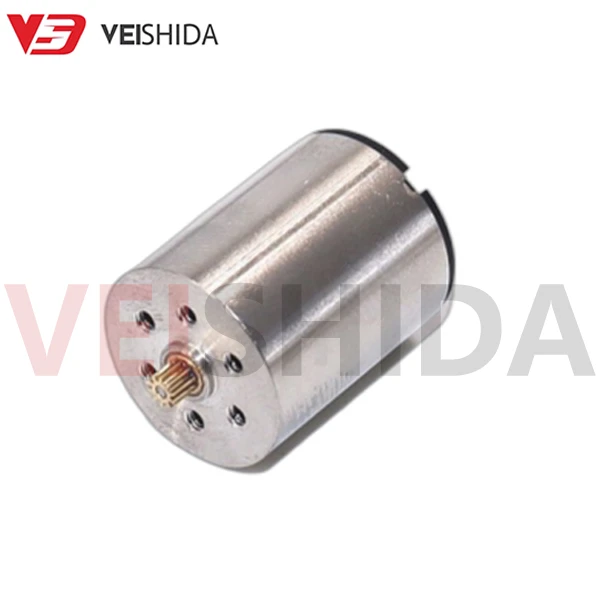

VSD - 1722 Coreless Brushless Tsav

Nrog nws cov Coreless Brushless Tsav tsim thiab kev ua tau zoo txog li 90%, VSD - 1722 ua tiav qhov sib npaug zoo tshaj plaws ntawm kev ua haujlwm siab thiab kev tsim qauv. Nrog rau sab nraud txoj kab uas hla ntawm 17mm thiab ntev ntawm 22mm, nws yog qhov zoo tagnrho rau kev siv qhov chaw txwv, thaum lub teeb pom kev zoo txo ​​qhov hnyav. Ua tsaug rau qhov txo qis hauv hysteresis thiab eddy tam sim no poob, lub cev muaj zog muaj kev ua haujlwm zoo dua thiab muaj zog ceev, nrog rau kev tsim kev vibration qis kom tau raws li cov khoom siv uas xav tau kev tswj xyuas meej, xws li cov cuab yeej kho mob thiab cov khoom siv automation.



Raws li kev daws teeb meem yooj yim, VSD-1722 kuj tuaj yeem hloov kho raws li cov neeg siv khoom xav tau, suav nrog cov khoom tso tawm, qhov txuas thiab lwm yam kev hloov kho. Seb nws yog nyob rau hauv high-end khoom me me, drones, los yog precision handheld li, lub cev muaj zog ua tau zoo. Nws tsis tsuas yog ua haujlwm ntawm qhov kub thiab txias thiab dissipates cua sov sai, tab sis kuj muab kev txhawb nqa ntev ntev rau thaj chaw uas xav tau kev ua haujlwm zoo thiab kev ntseeg siab nrog kev ua haujlwm ruaj khov thiab ruaj khov.



VSD - 1722 Coreless Tsav Tsim

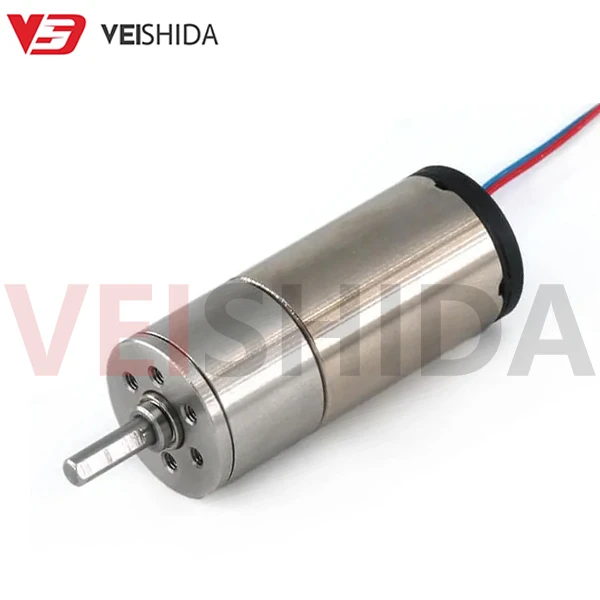

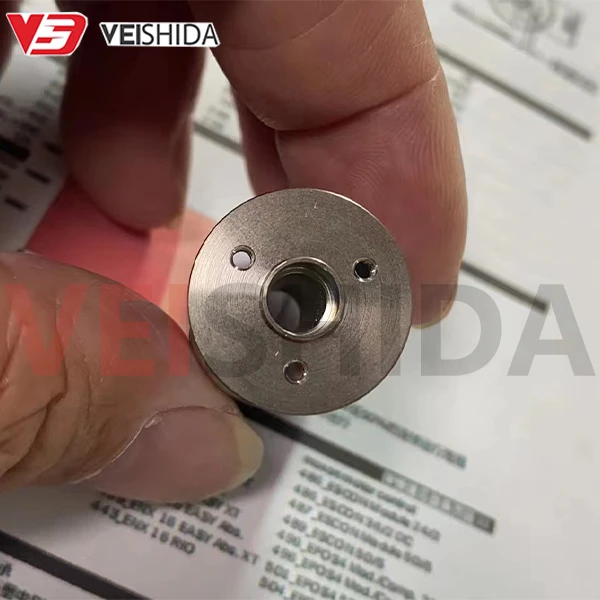

VSD - 1934 Coreless Brushless Tsav

Nrog nws cov Coreless tsim, VSD - 1934 Coreless Brushless Tsav kiag li tshem tawm cov nyhuv fluting thiab ua tiav kev pib du thiab ruaj khov. Nrog rau sab nraud txoj kab uas hla ntawm 19 hli thiab ntev ntawm 34 hli, lub cev muaj zog txhawb nqa qhov dav ntawm qhov hluav taws xob ntawm 5V txog 26V, nrog lub zog tso tawm mus txog 15W thiab ceev txog li 20,00rpm. Nws qhov qis-inertia rotor tsim ua kom nrawm nrawm thiab nres lub peev xwm, ua rau nws zoo tagnrho rau cov ntawv thov uas xav tau cov lus teb zoo, xws li cov cuab yeej siv hluav taws xob ceev thiab cov neeg hlau.



Tsis tas li ntawd, lub cev muaj zog muaj ob lub npas kabmob lossis lub tes tsho kabmob kev tsim kho, uas txhim kho lub neej thiab kev ntseeg tau zoo thaum txo kev vibration thiab suab nrov. Ua ke nrog ib qho encoder, nws kuj ua kom muaj kev ceev ceev thiab kev tswj xyuas txoj haujlwm, ua rau nws zoo tagnrho rau cov ntawv thov xws li cov khoom siv kho mob, cov khoom siv hluav taws xob thiab cov cuab yeej precision. VSD - 1934 muab kev txhawb nqa muaj zog rau cov khoom siv uas compact hauv qhov chaw tab sis xav tau kev ua haujlwm.



VSD - 1934 Coreless Tsav Tsim

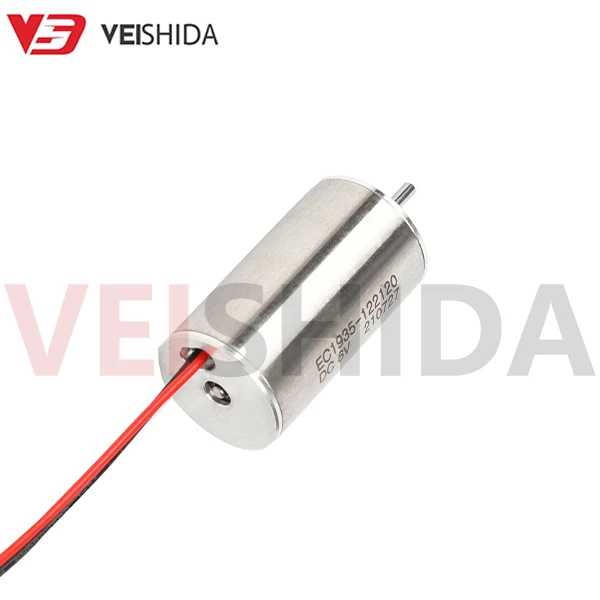

VSD - 1935 Coreless Brushless Tsav

Nrog nws lub zog siab ceev thiab lub teeb tsim, VSD -1935}} Txoj kev xaiv tseem ceeb ntawm kev ua haujlwm thiab cov kev ua tau zoo thiab qhov hnyav. Lub cev muaj zog muaj ib txoj kab uas hla ntawm 19 hli thiab qhov ntev ntawm 35 hli, txhawb qhov dav ntawm qhov hluav taws xob ntawm 5V txog 26V, lub zog siab tshaj plaws ntawm 18W, kev sib hloov ceev txog li 20, 000 RPM, thiab lub zog ntawm 9m · Nm rau ob qho tib si muaj zog thiab tswj tau meej. Nws ob lub npas kabmob lossis lub tes tsho kabmob ua haujlwm ntxiv txhim kho kev co tswj thiab kev ua haujlwm ntawm lub neej, ua rau nws tsim tshwj xeeb rau cov ntawv thov uas yuav tsum tau ua haujlwm ruaj khov mus ntev, xws li cov drones me thiab cov khoom siv kho mob.



Nrog rau kev ua haujlwm tau zoo ntawm ze li ntawm 90% thiab tsis tshua muaj kev siv tam sim no (tsuas yog 100mA), VSD-1935 muab kev txhawb nqa muaj zog rau cov ntawv thov xws li cov twj tso kua mis, cov khoom siv hauv chav kuaj thiab cov qauv. Nws zoo heev pib smoothness thiab high efficiency ua rau nws ib tug txhim khu kev qha kev xaiv rau thov kev thov, muab lub teeb yuag thiab meej lub zog rau ntau yam khoom siv.



VSD - 1935 Coreless Tsav Tsim





VSD's Coreless Brushless Tsav yog lub cev muaj zog uas tsim los rau cov ntawv thov xav tau heev thiab zoo tagnrho rau ntau yam kev siv ua tsaug rau nws qhov tshwj xeeb coreless tsim thiab kev ua tau zoo dua. Ntxiv rau lawv qhov zoo tshaj plaws lub zog ceev ceev, lawv kuj paub txog lawv lub teeb yuag thiab kev ua haujlwm siab, muab cov kev daws teeb meem zoo rau cov khoom siv uas xav tau kev tswj xyuas meej thiab cov lus teb zoo.



Coreless tsim: lav kev ua haujlwm zoo thiab du

Lub VSD Coreless Brushless Tsav siv cov qauv tsim tshwj xeeb uas ua rau txo qis hysteresis thiab eddy tam sim no poob hauv cov pa motors. Qhov kev tsim no tsis tsuas yog txhim kho kev ua haujlwm tag nrho, tab sis kuj tshem tawm cov nyhuv fluting, kom ntseeg tau tias pib ua haujlwm zoo dua thiab ua haujlwm ruaj khov dua. Nyob rau tib lub sijhawm, qhov qis inertia rotor tuaj yeem teb sai sai kom ua tiav qhov tseeb ntawm kev tswj kom nrawm thiab nres, uas yog qhov kev xaiv zoo tshaj plaws rau scenes nrog siab dynamic xav tau.



Lub teeb yuag thiab siab zog ceev: tsim rau qhov chaw txwv tsis pub siv

Nrog rau txoj kab uas hla ntawm 16 hli thiab qhov hnyav ntawm 2.5g, VSD Coreless Brushless Tsav muaj peev xwm ua tau zoo heev. Nws lub zog hluav taws xob tseem ceeb yog tsim nyog rau cov khoom siv hauv cov chaw nres tsheb, thiab nws tseem muaj qhov zoo ntawm cov chaw hnyav xws li ib lub teb chaws thiab drones. Tib lub sijhawm, lub cev muaj zog txhawb ntau yam kev xaiv hluav taws xob, xws li 12V, kom tau raws li kev xav tau siv ntau dua.



High efficiency thiab lub neej ntev: tus qauv ntawm kev txhim khu kev qha

Cov qauv ua kom zoo cua txias ntawm VSD CoSD Brushless Tsav ua kom muaj qhov kub thiab txias ua haujlwm, yog li txuas ntxiv kev pabcuam lub neej ntawm lub cev muaj zog. Cov ntaub ntawv zoo thiab precision tsim tso cai rau siab torque thiab siab zog tso zis thaum tswj tsis tshua muaj kev vibration thiab suab nrov, ua rau nws zoo tagnrho rau cov cuab yeej xav tau ib puag ncig nyob ntsiag to. Tsis tas li ntawd, ua ke nrog servo tswj kev ua haujlwm ntawm lub encoder, nws tuaj yeem ua tiav qhov siab ceev ceev thiab lub tswv yim ntawm txoj haujlwm, txuas ntxiv nthuav dav nws daim ntawv thov ntau yam.



Customizable: kom tau raws li kev xav tau ntau yam

Tsis siv neeg tso zis ncej, mounting qhov, ceev thiab tam sim no, VSD Brushless Tsav tuaj yeem kho raws li cov neeg siv khoom xav tau rau kev pom zoo ntawm daim ntawv thov scenarios. Los ntawm cov ntsuas hluav taws xob ntawm 6V txog 24V mus rau qhov nrawm txog li 20, 000 RPM, qhov yooj thiab siv tau ntawm lub cev muaj zog tsis sib haum. Txawm hais tias lub zog tso zis siab yuav tsum tau siv rau lub sijhawm luv luv, lub cev muaj zog no yooj yim copes, muab lub zog tsis tu ncua ntawm kev txhawb nqa rau cov khoom siv.



Lub VSD CoSD Brushless Tsav ua ke nrog kev ua haujlwm siab, lub teeb yuag thiab kev ntseeg tau los ua kom muaj kev ua tau zoo hauv cov khoom siv niaj hnub no. Txawm hais tias kev kho mob, tsheb tsis muaj neeg tsav dav hlau lossis cov cuab yeej precision, lub cev muaj zog muab kev daws teeb meem uas tshaj qhov kev cia siab rau koj cov khoom.





Nrog nws cov qauv tsim tshwj xeeb thiab kev ua tau zoo tshaj, VSD's Coreless Brushless Tsav tau dav siv hauv ntau qhov chaw siab. Ua tsaug rau nws lub teeb yuag thiab coreless kev tsim kho, lub cev muaj zog ua haujlwm nrog kev co thiab suab nrov thaum txo qis tam sim no poob, ua kom muaj txiaj ntsig zoo thiab ua haujlwm ntev. Txawm hais tias nws yog ib qho khoom siv kho mob uas xav tau qhov tseeb heev lossis me me drone nrhiav kev ua haujlwm siab, lub cev muaj zog ua haujlwm tshwj xeeb.



Precision xaiv hauv cov khoom siv kho mob

Hauv kev kho mob, VSD Coreless Brushless Tsav muab lub zog tsav zoo tshaj plaws rau cov khoom siv xws li cov twj tso kua mis, cov cuab yeej phais thiab cov tshuab phais neeg kho mob. Nws qhov kev sib hloov ceev ceev, tsis tshua muaj kev vibration thiab siab precision ua kom ruaj khov ntawm cov khoom siv kho mob hauv cov cheeb tsam nyuaj thiab pab cov neeg kho mob ua tiav kev ua haujlwm zoo. Tsis tas li ntawd, lub compact tsim ntawm cov motors no ua rau lawv haum rau cov khoom siv kho mob portable los txhawb cov kev kho mob mobile.



Muaj Automation

VSD Coreless Brushless Tsav txhaj tshuaj lub neej tshiab rau hauv kev lag luam automation. Nws durability thiab high efficiency yog tshwj xeeb tshaj yog nyob rau hauv high-speed pick-and-place systems, me me conveyors thiab sensors. Cov motors no tuaj yeem tiv taus lub sijhawm ntev ntawm kev ua haujlwm thaum tswj kev siv hluav taws xob tsawg, muab kev lees paub rau kev tsim cov tshuab ua haujlwm zoo.



Cov khoom siv hluav taws xob thiab khoom siv hauv tsev

Cov khoom siv hluav taws xob thiab cov khoom siv hauv tsev high-end kuj tau txais txiaj ntsig los ntawm VSD Coreless Brushless Tsav. Nws cov suab nrov qis, kev ua haujlwm siab ua haujlwm zoo ua rau nws zoo tagnrho rau cov khoom siv suab nrov thiab cov khoom siv hauv tsev me xws li lub tshuab nqus tsev nqus tsev vacuum thiab blenders. Tsis tas li ntawd xwb, tab sis nws lub teeb yuag tuaj yeem ua kom zoo dua rau cov neeg siv kev paub, nqa qhov kev paub yooj yim dua thiab ntsiag to rau cov neeg siv khoom kawg.



Drones thiab Aerospace

Nrog rau qhov kev thov siab rau lub teeb yuag thiab kev ua haujlwm siab hauv UAV teb, VSD Coreless Brushless Tsav, nrog nws cov qauv tsim thiab lub zog ua haujlwm tau zoo, yog ib qho tseem ceeb ntawm cov tshuab me me UAV. Tsis tas li ntawd, nyob rau hauv aerospace sector, cov motors no kuj tau siv dav hauv cov dav hlau me me thiab cov cuab yeej tswj hwm los muab kev txhawb zog rau kev ua haujlwm siab.



Laboratory thiab instrumentation

Ntawm cov cuab yeej kuaj thiab ntsuas uas yuav tsum tau ua kom muaj qhov tseeb thiab tsis tshua muaj suab nrov, VSD Coreless Brushless Tsav zoo siab. Cov kws tshuaj ntsuam xyuas, cov cuab yeej kho qhov muag thiab lwm yam kev siv uas xav tau qhov tseeb tau txais txiaj ntsig los ntawm lawv cov kev ruaj ntseg zoo dua thiab ua haujlwm ntev, muab kev lees paub txhim khu kev qha rau kev tshawb fawb thiab kev ntsuas qhov tseeb.



Cov khoom siv ua qauv thiab cov khoom siv tes tuav

VSD Coreless Brushless Tsav kuj tseem ua lub luag haujlwm tseem ceeb hauv kev ua haujlwm ntawm cov qauv khoom siv thiab cov cuab yeej tuav tes. Los ntawm cov khoom ua si tsheb rau cov qauv dav hlau mus rau lub tshuab tattoo, lawv cov kev vibration qis thiab kev sib hloov ceev tau ua rau muaj kev ua tau zoo thiab muab kev paub zoo tshaj plaws rau cov khoom siv thiab kev ua si.



VSD txhawb ntau yam kev xav tau

Raws li lub tuam txhab ua lag luam ntawm lub cev muaj zog, VSD tsis tsuas yog muaj cov qauv Coreless Brushless motors, tab sis kuj txhawb ntau yam kev xaiv, suav nrog qhov loj, ceev, txo cov iav, thiab lwm yam, kom tau raws li tus neeg xav tau kev pab ntawm cov neeg siv khoom sib txawv. Txawm hais tias OEM lossis ODM, VSD yeej ib txwm cog lus los muab cov neeg siv khoom nrog cov khoom zoo thiab cov kev daws teeb meem.



Los ntawm kev kho mob mus rau kev lag luam, los ntawm cov neeg siv khoom siv hluav taws xob mus rau aerospace, VSD Coreless Brushless Tsav npog ntau yam kev siv nrog kev ua tau zoo, txhaj tshuaj muaj zog rau kev tsim kho tshiab hauv txhua qhov chaw.





Raws li lub tuam txhab ua lag luam thiab xa tawm ntawm Coreless Brushless Tsav hauv Suav teb, VSD muab cov khoom lag luam zoo rau cov neeg siv khoom thoob ntiaj teb nrog nws lub zog tsim khoom thiab kev tshawb fawb thiab kev tsim kho. Txawm hais tias koj tab tom nrhiav rau tus neeg muag khoom txhim khu kev qha, lossis xav tau kev yuav khoom ntau lossis kev pabcuam customized, VSD yog koj tus khub zoo tagnrho.



Muaj peev xwm tsim muaj zog thiab ua haujlwm tau zoo

VSD Hoobkas tau nruab nrog ntau tshaj 40 cov kab sib dhos thiab ntau dua 300 cov khoom siv automation, nrog ntau tshaj 500 tus neeg ua haujlwm ua ntej, thiab cov khoom tso tawm txhua hnub tuaj yeem ncav cuag ntau dua 200, 000 units. Los ntawm kev tsim mus rau ntau lawm, peb siv cov thev naus laus zis thiab kev tswj hwm nruj kom ntseeg tau tias txhua lub cev muaj zog ua tau raws li cov qauv thoob ntiaj teb. Seb nws yog me me batch qauv tsim los yog loj-scale Lag luam wholesale xaj, peb tuaj yeem xa tau zoo, txuag koj lub sijhawm thiab nqi.



Tsim thiab tsim kho tshiab kom tau raws li kev xav tau ntau yam

Peb pab pawg tshawb fawb thiab kev tsim kho, suav nrog ntau dua 30 tus kws tshaj lij engineers, nqis peev nyiaj ntau hauv kev tsim khoom tshiab txhua xyoo los xyuas kom meej tias peb cov Coreless Brushless Tsav tseem muaj kev sib tw hauv kev ua lag luam txhua lub sijhawm. Peb muab tag nrho cov kev pabcuam OEM / ODM customization los tsim thiab kho cov khoom raws li cov neeg siv khoom xav tau, suav nrog cov kev qhia tshwj xeeb ntawm lub cev muaj zog, kev ua tau zoo thiab cov tsos. Txawm hais tias nws yog loj ntau lawm los yog me me batch customization, peb muaj peev xwm tailor tus haum haum rau koj.



Kev pabcuam zoo heev thiab kev xa khoom yooj yim

Txhawm rau ua kom tau raws li qhov xav tau ntawm cov neeg siv khoom thoob ntiaj teb, VSD muaj cov qauv kev ua haujlwm tshwj xeeb, lub voj voog ntau lawm ntawm brushless motors feem ntau yog 15-25 hnub, nyob ntawm tus naj npawb ntawm kev txiav txim thiab cov qauv khoom, lub sij hawm xa tuaj yeem tswj tau. nruab nrab ntawm 15 thiab 40 hnub. Tsis tas li ntawd, peb ib txwm hais kom xa khoom raws sijhawm, nrog rau tus nqi xa mus txog 99%, pab cov neeg siv khoom kom nkag siab txog kev lag luam zoo dua.



Tus nqi siab ua haujlwm nrog cov khoom siv thoob ntiaj teb

Raws li ib tug zoo-paub Chaw tsim tshuaj paus thiab tsum ntawm Coreless Brushless Tsav nyob rau hauv Tuam Tshoj, peb tau cog lus los muab cov khoom zoo ntawm tus nqi sib tw. Thaum ua kom muaj kev ua tau zoo thiab ua haujlwm ntev, VSD tseem txuag cov nqi rau cov neeg siv khoom. Ob qho tib si hauv kev lag luam hauv tsev thiab txawv teb chaws, peb cov khoom siv lub cev muaj kev ntseeg siab thiab dhau los ua tus neeg nyiam ntawm cov neeg siv khoom hauv ntau qhov kev lag luam.



Los ntawm kev xaiv VSD's Coreless Brushless Tsav, peb tsis tsuas yog xaiv cov khoom lag luam ua tau zoo, tab sis kuj xaiv cov khoom lag luam muaj txiaj ntsig zoo. Peb tos ntsoov yuav muab kev txhawb nqa thiab kev pabcuam rau koj rau lub neej tom ntej.
