28mm 24V Planetary Iav Tsav
Lub 28mm 24V planetary iav lub cev muaj zog feem ntau hloov cov tswv yim qis torque thiab kev kub ceev rau hauv siab torque thiab qis ceev tso zis los ntawm cov iav teeb. Input ncej thiab cov zis ncej yog coaxial, txheej txoj kab uas hla: 28mm, nyob voltage: DC 12V / 24V, dav siv nyob rau hauv nruab nrab-precision industrial ...
Hauj lwm lawm
Lub 28mm 24V planetary iav lub cev muaj zog feem ntau hloov cov tswv yim qis torque thiab kev kub ceev rau hauv siab torque thiab qis ceev tso zis los ntawm cov iav teeb. Cov ncej input thiab cov zis ncej yog coaxial, sab nraud txoj kab uas hla: 28mm, rated voltage: DC 12V / 24V, dav siv nyob rau hauv nruab nrab-precision industrial teb, khoom kho mob, automation cov ntaub ntawv, semiconductor cov ntaub ntawv, neeg hlau thiab lwm yam teb, yuav customized rau cov neeg siv khoom.
Tuam txhab Highlights
Txheej txheem cej luam
Warranty | 3 lub hlis - 1 xyoo |
Qhov Chaw Keeb Kwm | Shenzhen, Suav teb |
Hom Lub Npe | Vshida |
Qauv nab npawb | VSD-G28 |
Kev siv | Cov khoom siv semiconductor, cov khoom siv kho mob, neeg hlau, cov khoom siv sib txuas lus, cov khoom siv tshuaj, khoom siv luam ntawv, ntim tshuab, thiab lwm yam. |
Hom | Lub cev muaj zog |
Qhov hnyav | TBD (qhov sib txawv qhov hnyav sib txawv) |
Kev tsim kho | Permanent Magnet |
Kev sib hloov | Txhuam tsis txhuam / txhuam |
Cov kabmob | pob bearing |
Cheebtsam | Diversifed |
| Rated ceev | 6-4000 (rpm) (Customized) |
Pib tam sim no | 10 mA |
Rated Voltage | 24 (V) |
| Tiv thaiv Feature | Waterproof, fireproof, tag nrho enclosed. |
| Qhov ntev | 28 * 38 hli |
Cov nqe lus them nqi | 30 feem pua ua ntej, 70 feem pua tshuav |
Daim ntawv pov thawj | TIAB SA 16949 |
Customized | Txais |
Product Description
Qhov nruab nrab ntawm ob lub hlis los tsim lub cev muaj zog tshiab
Lub cev muaj zog Parameter
VOLTAGE | TSIS PUB | NTAWM MAXIMUM EFFICIENCY | Pib | |||||
NOMINAL V | HLUB r / min | Tam sim no A | HLUB r / min | Tam sim no A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | Tam sim no A |
24 | 1500 | 0.025 | 1236 | 0.056 | 1.28 | 0.722 | 14.522 | 0.726 |
Khoom Loj

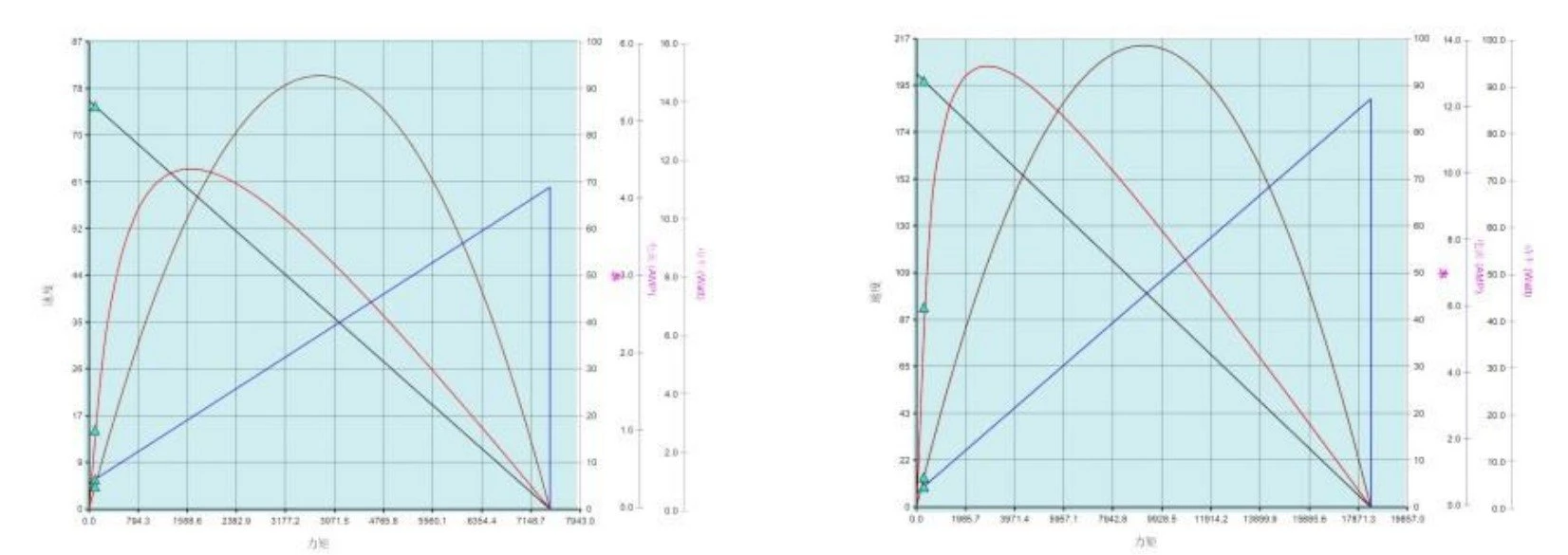

Performance Curve
Cov ntsiab lus hais saum toj no tsuas yog siv rau kev siv; ib qho tshwj xeeb iav lub cev muaj zog hom thiab tsis tuaj yeem hloov pauv.
Khoom nta
28mm 24V Planetary Iav Tsav input ncej thiab tso zis ncej yog coaxial kab; muaj ntau tshaj 3 lub ntiaj teb lub zog, uas muab lub zog loj dua thaum lub sij hawm hloov, thiab kev sib kis ceev ceev (yuav tsum muaj ib qho zoo mesh ntawm lub zog), compact qauv, siab precision, siab kis tau tus mob efficiency (98 feem pua), siab torque. , ntev kev pab cuam lub neej, mute thiab lwm yam ntxwv, yog tias koj xav tau kev txhawb nqa tsav tsheb, encoders, gearboxes, thov hu rau peb.
Khoom Paub meej
| 100 feem pua qhov tseeb duab |
|
Rotor: Ntshiab tooj liab hlau uas tau raug mob nyob ib ncig ntawm ib tug hwm hlau core muaj zog poob, tsis tshua muaj tam sim no tsis kam, thiab kub kuj. | Kawg cap: nce cua sov dissipation, kho lub cev muaj zog lub rotor, thiab txuas ntxiv lub neej ntawm cov khoom, siv cov khoom siv raw. | |
| 100 feem pua qhov tseeb duab |
|
Cov kabmob: cov kabmob zoo uas tuaj yeem ua tau raws li kev cai (roj bearing / pob bearing), xaiv lub npe nrov bearing hom. | Chassis: Xaiv cov khoom siv nrog lub neej ua haujlwm ntev, zoo heev, thiab tiv thaiv xeb, xeb, hnav, thiab hnav-thiab-tua. |
Lub tuam txhab muaj zog
Daim ntawv pov thawj khoom
Ib txhia ntawm peb cov neeg koom tes
Peb zoo siab ua haujlwm nrog koj hauv Suav teb ua tus khub mus sij hawm ntev. Txij li lub sijhawm ntev dhau los, peb tau cog lus los muab cov khoom lag luam nyob sab Europe thiab Asmeskas nrog lub zog siab DC iav motors.
Vim li cas thiaj xaiv peb
Daim ntawv thov
Thauj Ntim
Ua npuas ncauj packing uas yog shockproof; tsim nyog thawv loj. Thov hu rau peb ua ntej yog tias koj xav tau kev pabcuam tshwj xeeb.
Kev Them Nyiaj & Xa
Planetary iav, hnub iav, thiab lub nplhaib sab nrauv ua rau lub ntiaj teb reducer lub kis tau tus mob. Planetary reducers feem ntau muaj qhov txo qis ntawm 3/4/5/6/8/10. Kev tsim kho kom ntseeg tau tias qhov tsawg kawg nkaus thiab qhov txo qis tshaj plaws yog ob qho tib si 3. Planetary reducers yog qhov txawv ntawm lwm cov reducers los ntawm lawv cov precision zoo, kev sib kis tau zoo (98 feem pua), thiab siab torque.
Ib txheej ntawm planetary gears tsis tuaj yeem ua raws li tus neeg siv qhov sib kis ntau dua, yog li ob lossis peb txheej ntawm lub zog planetary yuav xav tau. Qhov ntev ntawm 2-theem los yog 3-theem reducer yuav luv luv vim qhov nce ntawm lub zog ntawm lub ntiaj teb. poob thaum lub efficiency nce.
Pab neeg R & D ywj siab muab koj cov khoom tsim tawm, cov khoom siv lead ua, cov hlau lead terminals, ceev, voltage, lub zog, thiab lwm yam. Yog tias koj xav tau kev txhawb nqa tsav tsheb, encoders, gearboxes, thiab lwm yam, thov hu rau peb thiab teb koj cov lus nug hauv 24 teev.
