DC 12V Planetary Iav Tsav
Loj: 22mm,
Ntev: 32mm,
Axial Clearance: 0 05-0.5mm
Lub high-torque hluav taws xob mini txo qis planetary iav lub cev muaj zog txais cov hlau zoo zog kom tsis txhob tawg cov hniav, ua kom lub neej ua haujlwm zoo, kub ua hauj, hnav tsis kam, muaj peev xwm muaj peev xwm, muaj zog thiab ruaj khov, thiab tiv thaiv lub cev lub cev muaj zog.
Hauj lwm lawm
Txheej txheem cej luam
Warranty | 3 lub hlis - 1 xyoo |
Qhov Chaw Keeb Kwm | Guangdong, Suav teb |
Hom Lub Npe | Vshida |
Qauv nab npawb | GBP22-180SH |
Kev siv | Robot, semiconductor khoom, khoom siv kho mob, tsis siv neeg tswj system, tsheb, qauv aircraft, automation kev lag luam, khoom siv sib txuas lus, thiab lwm yam. |
Hom | Gearbox lub cev muaj zog |
Qhov hnyav | TBD (qhov sib txawv qhov hnyav sib txawv) |
Cheebtsam | Diversifed |
Kev tsim kho | Permanent Magnet |
Kev sib hloov | Tsis txhuam |
| Standard los yog non-standard | Tsis yog tus qauv |
Tiv thaiv Feature | Customized |
Pib torque | 6, 235 m |
Rated ceev | 4000 ± 5% (rpm) |
Rated Voltage | 12 (V) |
Rated Tam sim no | 0.025 (A) |
Cov nqe lus them nqi | 30 feem pua ua ntej, 70 feem pua tshuav |
Daim ntawv pov thawj | ROHS |
Customized | Txais |
Tuam txhab Highlights
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 4500000 Daim / Daim Ib Hlis dc lub cev muaj zog
Ntim & Xa
Ntim Cov Lus Qhia
Micro motor packing: Carton Box Peb tus qauv shipping cim rau txhua tus qauv yog raws li hauv qab no Q'ty: pcs NW: kgs GW: kgs Meas.: L * H * W cm Koj tus kheej shipping qhia yog txais tos.
Chaw nres nkoj: Shenzhen / HongKong
Product Description
Qhov nruab nrab ntawm ob lub hlis los tsim lub cev muaj zog tshiab.
Khoom Parameter
VOLTAGE | TSIS PUB | NTAWM MAXIMUM EFFICIENCY | Pib | |||||
NOMINAL V | HLUB r / min | Tam sim no A | HLUB r / min | Tam sim no A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | Tam sim no A |
12 | 4400 | 0.025 | 3464 | 0.093 | 1.326 | 0.481 | 6.235 | 0.343 |

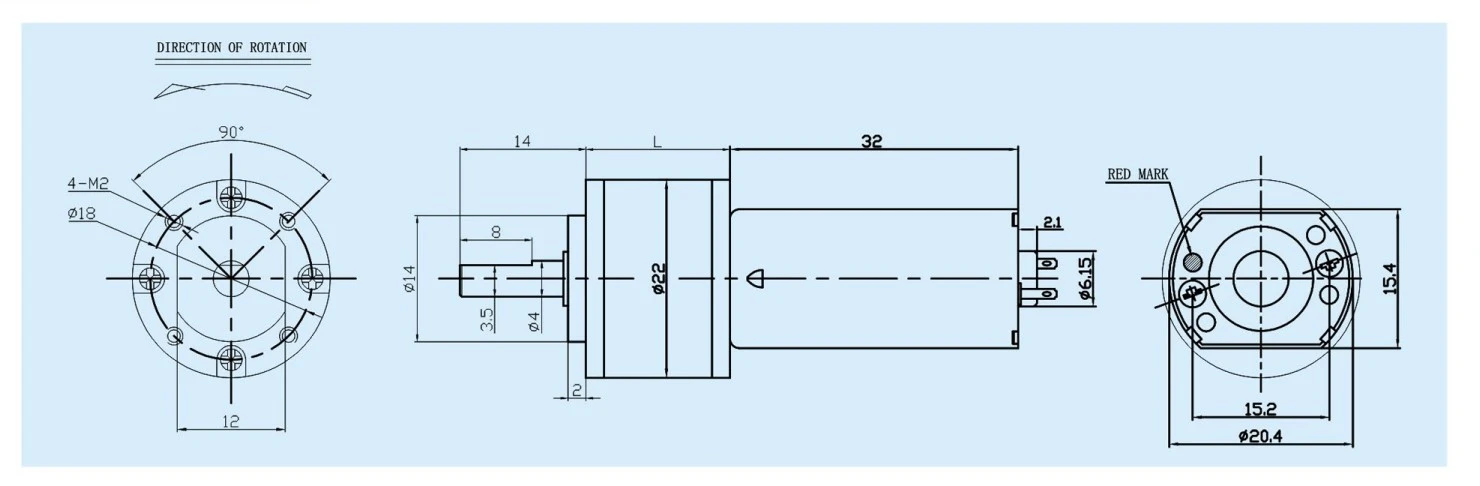

Lub cev muaj zog
Motor Curve
Cov lus qhia saum toj no yog rau kev siv nkaus xwb, tshwj xeeb dc planetary iav lub cev muaj zog qauv thiab tsis tuaj yeem hloov kho.
Khoom nta
Lub ntiaj teb lub cev muaj zog muaj cov qauv compact, me me, tsis tshua muaj kev vibration, kev ua haujlwm siab, kev ua haujlwm ruaj khov, siab pib torque, yooj yim tswj, thiab tus nqi qis, siab precision, thiab ua tiav kev txo qis (16, 62, 84, 104, 231, 316 370, 455, 1014) ib.
Khoom Paub meej
| 100 feem pua qhov tseeb duab |
|
Lub hau kawg: Muaj ob lub txhuam txhuam hauv qab, uas yooj yim dua los ua kom tiav ntau yam txheej txheem vuam thiab yooj yim dua rau kev xaim. | Bearings: Lub hauv paus ncej yog CNC machined, uas ua rau muaj kev sib txhuam quab yuam, ua rau kev sib kis tau ruaj khov, thiab yooj yim rau kev txuas thiab kho (cov kabmob tuaj yeem hloov kho) | |
| 100 feem pua qhov tseeb duab |
|
Lub cev muaj zog coil yog ua los ntawm cov tooj liab ntshiab, muaj qhov tsis muaj zog, zoo dua hluav taws xob conductivity, siab zog, tsis muaj zog noj, tsis muaj calorific nqi thiab ntau dua cov zis efficiency. | Chassis: Lub cev muaj zog yog ua los ntawm cov khoom zoo txhuas, uas muaj cov yam ntxwv ntawm corrosion kuj, tsis yooj yim rau xeb, thiab txhim khu kev qha kev ua tau zoo. |
Peb Qhov Zoo
1. Qhov chaw txuag, txhim khu kev qha thiab ruaj khov, muaj zog tshaj qhov muaj peev xwm (txo qhov piv tau tuaj yeem kho raws li daim ntawv thov sib txawv)
2. Kev siv hluav taws xob tsawg, kev ua tau zoo dua, thiab kev ua haujlwm ntawm lub reducer yog siab li 95 feem pua.
3. Tsis tshua muaj kev vibration, tsis tshua muaj suab nrov, kev txuag hluav taws xob zoo, cov hlau zoo, cov hlau cam khwb cia hlau, thiab kev kho cua sov ntawm cov iav qhov chaw.
4. Tom qab precision machining, qhov chaw qhov tseeb yog guaranteed, lub electromechanical kev koom ua ke yog tsim, thiab cov yam ntxwv zoo ntawm cov khoom yog guaranteed tag nrho.
5. Kev xa khoom sai, muaj zog ntau lawm thiab R & D muaj peev xwm, zoo thiab tus nqi tsim nyog, kev pabcuam zoo meej, kev tsim kho.
Lub tuam txhab muaj zog
Daim ntawv pov thawj khoom
Ib txhia ntawm peb cov neeg koom tes
Daim ntawv thov
Thauj Ntim
Yog tias koj muaj kev xav tau tshwj xeeb, thov hu rau peb ua ntej.
Yuav Cov Lus Qhia
Kev Them Nyiaj & Xa
FAQ
1. Yuav ua li cas xaiv lub cev muaj zog?
Yog tias koj muaj cov duab kos duab, kos duab, lossis cov ncauj lus kom ntxaws xws li voltage, ceev, torque, lub cev muaj zog, lub cev muaj zog ua haujlwm, xav tau lub neej thiab suab nrov, thov qhia rau peb, peb tuaj yeem pom zoo lub cev muaj zog raws li koj xav tau lossis muab rau koj Customize lub cev muaj zog kom haum koj cov kev xav tau.
2. Koj puas muaj kev pabcuam rau koj tus qauv motors?
Peb tuaj yeem kho raws li koj qhov yuav tsum tau ua rau qhov voltage, ceev, torque thiab ncej loj / duab. Yog tias koj xav tau cov xov hlau txuas ntxiv / cables rau lub davhlau ya nyob twg lossis xav tau ntxiv cov khoom sib txuas, capacitors lossis EMC, peb tuaj yeem muab qhov ntawd rau koj.
3. Koj puas muaj kev pabcuam tsim lub cev muaj zog?
Yog lawm, peb yog cov chaw tsim khoom tiag tiag nrog pab pawg R & D ywj pheej uas tuaj yeem tsim lub cev muaj zog rau cov neeg siv khoom.
4. Kuv puas tuaj yeem muaj tus qauv rau kev kuaj ua ntej?
Qhov no zoo kiag li. Tom qab lees paub qhov yuav tsum tau muaj lub cev muaj zog specifications thiab cov duab kos, peb yuav npaj cov ntaub ntawv pov thawj, thiab xa cov qauv rau koj kuaj tom qab dhau qhov kev xeem.
5. Koj ua li cas kom ntseeg tau qhov zoo ntawm lub cev muaj zog?
Peb muaj peb tus kheej cov txheej txheem tshuaj xyuas: rau cov khoom xa tuaj, peb kos npe rau cov qauv thiab kos duab los xyuas kom meej tias cov khoom tuaj yog tsim nyog; rau cov txheej txheem tsim khoom, peb ua kev soj ntsuam xyuas thiab kev soj ntsuam zaum kawg thaum lub sijhawm ua haujlwm kom ntseeg tau tias cov khoom tsim nyog ua ntej xa khoom.
