Eccentric Ncej 37mm Diameter Iav Tsav
Sab nraud txoj kab uas hla: 37mm,
Lub cev muaj zog: 66.7mm;
Hom ncej: D-Ncaj;
Output Ncej Diameter: 6mm D hom;
Output Ncej Ntev: 14mm
Dav siv dav hauv kev kho mob, drone, kev zoo nkauj, kev saib xyuas kev noj qab haus huv niam thiab menyuam, lub tsev ntse, tsheb, chaw ua haujlwm, qauv dav hlau, qauv khoom ua si, cov cuab yeej hluav taws xob, robots thiab lwm yam. Peb muaj ntau xyoo ntawm kev paub nyob rau hauv micro-motor ntau lawm thiab kev loj hlob, escort koj cov khoom, thiab muab cov neeg muas zaub nrog saj zawg zog thiab kev customized kev pab cuam.
Hauj lwm lawm
Eccentric ncej 37mm txoj kab uas hla iav lub cev muaj zog nrog ib tug 6 hli D ncej thiab ib txoj kab uas hla ntawm 37 hli thiab ob connectors. Tsis muaj-load ceev yog xaiv tau ntawm DC6V voltage xeev: 1590rpm, 1000rpm, 530rpm, 333rpm, 178rpm, 110rpm, 76rpm, 60rpm, 37rpm, 20rpm, 12rpm (tsim tsim raws li cov neeg siv khoom xav tau); zoo heev rau kev hloov corroded los yog tawg DC iav motors hauv tshuab. 100rpm, 600rpm, 300rpm, 200rpm, 100rpm, 70rpm, 45rpm, 35rpm, dav siv hauv cov ntaub thaiv tsis siv neeg, kev nyab xeeb, neeg hlau, khoom siv kho qhov muag, tshuab hluav taws xob gaming, npib ejectors, thiab lwm yam. nta suav nrog kev ua haujlwm siab, siab torque, tsis tshua muaj suab nrov, lub neej ntev, kev ua haujlwm siab, thiab lwm yam. Customization yog ua tau rau kev ceev, voltage, fais fab, tso zis ncej, txhuas hlau, thiab txhuas terminals.
Tuam txhab Highlights
Txheej txheem cej luam
Warranty | 3 lub hlis - 1 xyoo |
Qhov Chaw Keeb Kwm | Shenzhen, Suav teb |
Hom Lub Npe | Vshida |
Qauv nab npawb | VSD-GB37BL3640 |
Kev siv | Cov cuab yeej hluav taws xob, qhov qub, twj tso kua mis, neeg hlau, cov khoom muag, cov tshuab panning, cov cav tov, cov khoom siv me me, tsheb, cov ntawv pov thawj, cov nyiaj npib, cov qhov rooj tsis siv neeg, automotive hardware peritoneal machines, cov khoom ua si, thiab lwm yam. |
Hom | Lub cev muaj zog |
Qhov hnyav | TBD (qhov sib txawv qhov hnyav sib txawv) |
Cheebtsam | Diversifed |
Kev tsim kho | Permanent Magnet |
Kev sib hloov | Txhuam txhuam / txhuam |
Tiv thaiv Feature | Customized (Waterproof, Fireproof, Fully Enclosed) |
Kev ua tau zoo | 88 feem pua |
| Hom Shast | D-shaft |
Rated ceev | 6-1500 (rpm) |
Rated Voltage | 24 (V) |
Pib tam sim no | 11 A |
| Qhov ntev | 36 * 40 hli |
Cov nqe lus them nqi | 30 feem pua ua ntej, 70 feem pua tshuav |
Daim ntawv pov thawj | TIAB SA 16949 |
Customized | Txais |
Product Description
Muaj kev tshawb fawb thiab kev loj hlob muaj zog, peb tuaj yeem tsim ntau yam tshiab motors nyob rau hauv ib lub hlis ntawm qhov nruab nrab kom ua tau raws li cov neeg siv khoom xav tau.

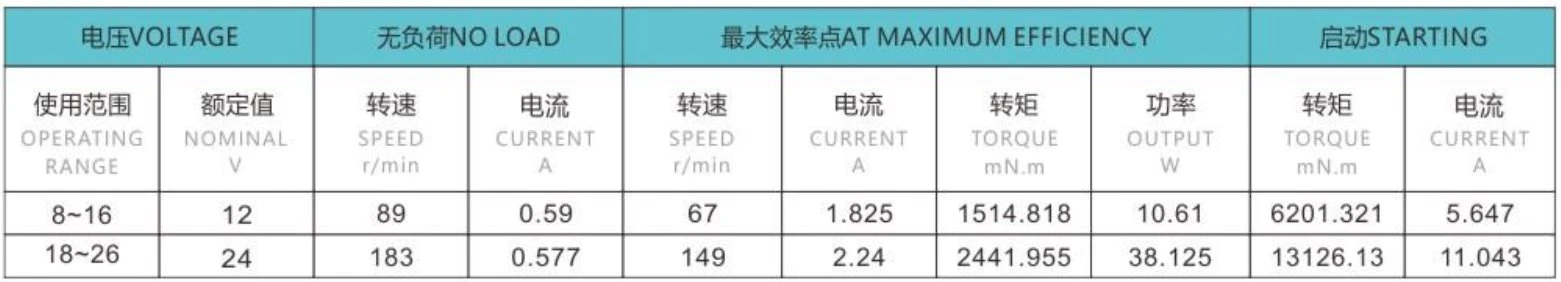

Lub cev muaj zog Parameter

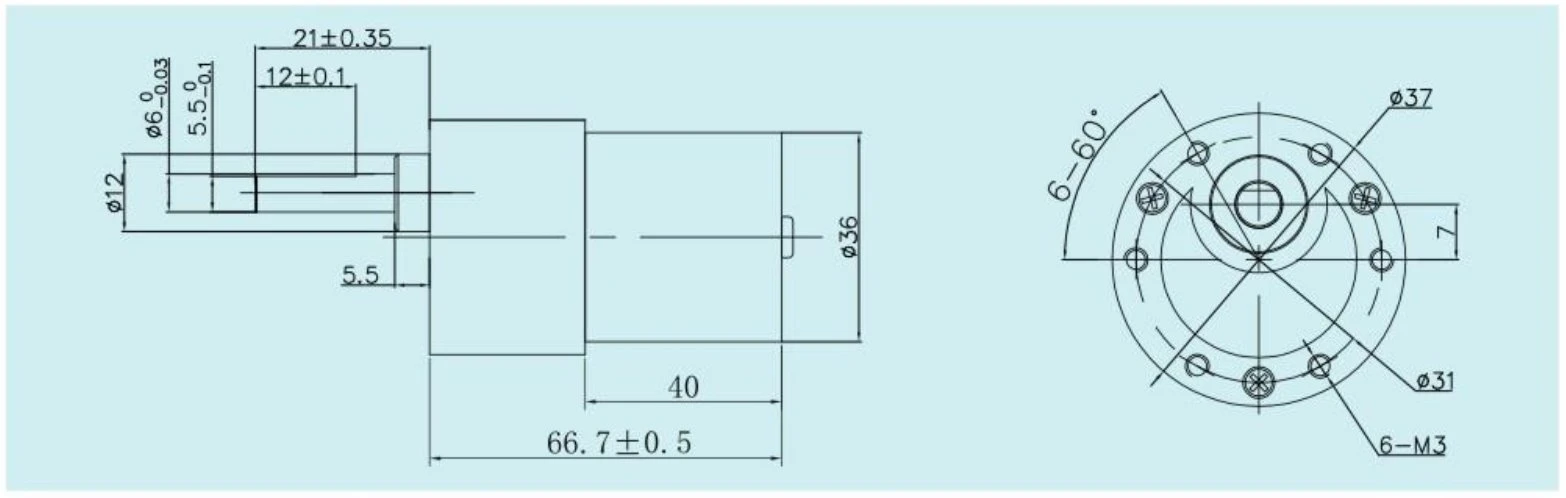

Khoom Loj
Customized yam khoom:Ceev, voltage, hwj chim, lead hlau, lead terminal, thiab tso zis ncej

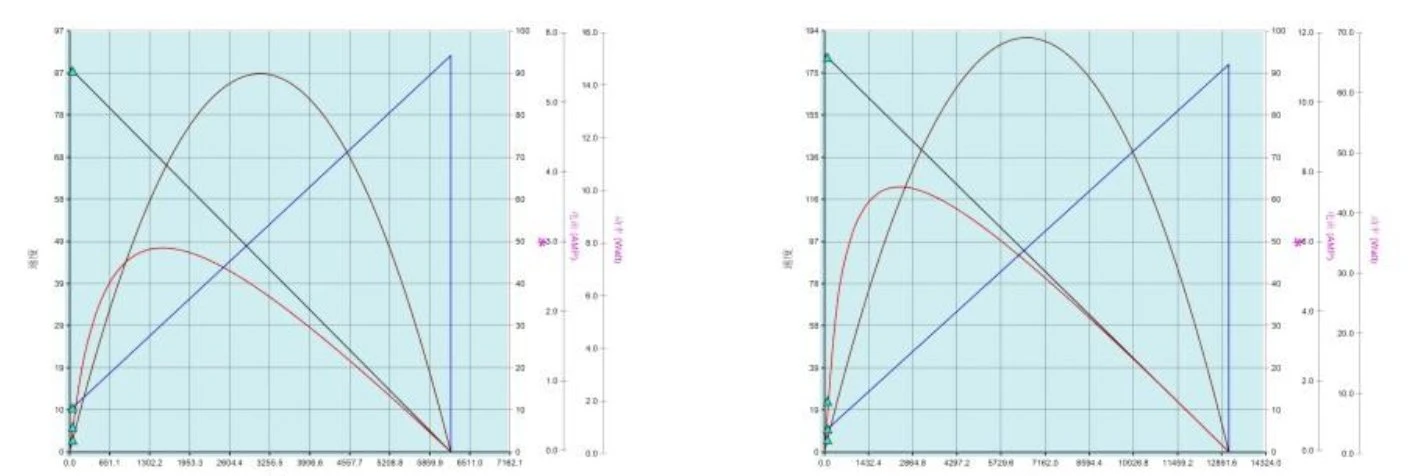

Performance Curve
Cov ntaub ntawv saum toj no yog muab rau kev siv xwb; lub eccentric ncej lub cev muaj zog qhov tshwj xeeb specifications tuaj yeem hloov thiab kho kom tau raws li cov neeg siv khoom xav tau.

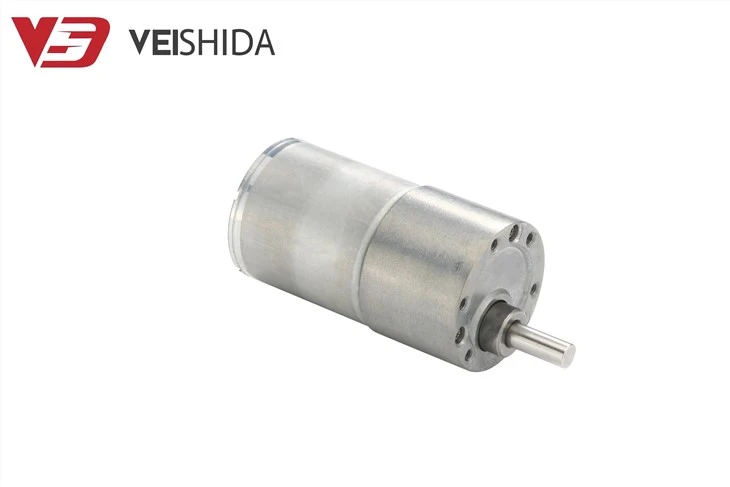

Khoom Paub meej
| 100 feem pua qhov tseeb duab |
|
Rotor: Cov tooj liab ntshiab yog siv los tsim lub tshuab hluav taws xob, uas muaj lub zog siab, tsis tshua muaj zog, zoo hluav taws xob conductivity, tsis tshua muaj hluav taws xob tsim hluav taws xob, thiab kev ua haujlwm siab. | Kawg cap: Ua kom yooj yim rau kev ua ntau yam txheej txheem vuam, lub cev muaj zog hauv qab muaj txhuam taw. Kev siv hluav taws xob ntau dua, txawm li cas los xij, tib lub sijhawm. | |
| 100 feem pua qhov tseeb duab |
|
Cov kabmob: CNC kev ua haujlwm ntawm lub cev muaj zog ua rau muaj kev sib txhuam ntxiv, kev sib kis ruaj khov dua, thiab kev sib txuas yooj yim dua thiab nrawm dua. | Chassis: High-quality aluminium, uas yog corrosion-resistant, nyuaj rau xeb, thiab muaj kev cia siab rau kev ua tau zoo, yog siv los ua lub cev muaj zog. |
Motor piav qhia
1. Lub zog tuaj yeem tsim kho thiab hloov pauv kom tau raws li cov neeg siv khoom xav tau thiab yog qhov chaw txuag, kev cia siab, muaj zog, thiab muaj zog tiv thaiv kev dhau.
2. High-quality steel, muaj zog cam khwb cia hlau lub thawv, tsis tshua muaj kev vibration, tsis tshua muaj suab nrov, kev txuag hluav taws xob, thiab kev kho cua sov ntau zaus ntawm lub iav nto
3. Lub reducer muaj kev ua haujlwm siab, kev siv hluav taws xob tsawg, thiab kev ua haujlwm siab txog li 95 feem pua.
4. Lub eccentric ncej 37 hli txoj kab uas hla iav lub cev muaj zog tau ua tiav kom paub tseeb tias qhov chaw precision thiab daim ntawv electromechanical kev koom ua ke, siab guaranteeing cov khoom zoo heev cwj pwm.
Lub tuam txhab muaj zog
Peb lub tuam txhab tau tsim ib lub koom haum tseem ceeb ntawm cov txheej txheem kev tshaj lij thiab kev tswj hwm kev txawj ntse hauv kev tshawb fawb thiab kev tsim khoom, cov txheej txheem kev tswj hwm kev tsim khoom, thiab cov khoom tsim muaj peev xwm thiab kev tsim khoom. Ob lub ISO 9001: 2015 thiab IATF16949: 2016 kev tswj hwm kev tswj xyuas cov ntawv pov thawj zoo tau ua tiav los ntawm qhov system.Tam sim no muaj ntau tshaj 500 tus neeg ua haujlwm tsim khoom, ntau tshaj 40 cov kab ntau lawm, thiab ntau tshaj 300 cov khoom siv automation. Ua kom tiav koj cov ntawv xaj loj.
Daim ntawv pov thawj khoom
Ib txhia ntawm peb cov neeg koom tes
Peb zoo siab los koom tes nrog koj ua tus khub mus sij hawm ntev hauv Suav teb. Peb tau mob siab rau muab siab torque micro gear motors rau feem ntau ntawm cov European thiab Asmeskas kev lag luam.
Vim li cas thiaj xaiv peb?
Daim ntawv thov
Thauj Ntim
Ua npuas ncauj packing uas yog shockproof; tsim nyog thawv loj. Thov hu rau peb ua ntej yog tias koj xav tau kev pabcuam tshwj xeeb.
Pem hauv ntej ntim lub thawv: 350 * 265 * 280mm
Thawv sab nrauv: 365 * 275 * 320mm
Qhov hnyav 16.7kg / 350pcs
Kev Them Nyiaj & Xa
Txhim kho txoj kev ntawm Eccentric ncej 37mm txoj kab uas hla iav lub cev muaj zog
Tom qab sib sau ua ke cov tswv yim kawg sib dhos, muab lub cev muaj zog kawg rau ntawm lub platform. Muab tus pin iav vaj tsev sib dhos rau ntawm qhov kev sib dhos kawg, thiab ua tib zoo saib xyuas cov cim ntawm ob lub log cycloidal nyob rau hauv kev coj ntawm lub qhov tso pa tawm. Ib txhia ntawm cov cim no yog cov tsiaj ntawv thiab ib txhia yog tus lej. Cov kev kos npe ntawm cov tuam txhab sib txawv txawv, tab sis ob lub pendulum log Cov cim ntawm cov hlau log yog tib yam. Yog tias lawv tsis zoo ib yam, txhais tau hais tias lawv tsis yog txheej. Lub log cycloid yuav tsum tau siv los ua ib txheej. Yog tias ib qho ntawm lawv puas lawm, ob qho tib si yuav tsum tau hloov ua ke. Muab lub log cycloidal rau hauv tus pin vaj tse, nco ntsoov tias sab cim yog tig mus. Teem lub eccentric ncej nrog cov kabmob ntsia rau ntawm lub hauv paus ncej, thiab muab lub nplhaib spacer. Txhim kho lub log cycloidal thib ob (qhov no yog qhov tseem ceeb.) Nrhiav lub cim, stagger 180 degrees los ntawm lub cim ntawm thawj lub log cycloidal, tuav qhov sib npaug ntawm lub log cycloidal nrog tus ntiv tes xoo thiab me ntsis ntiv tes, thiab txuas ntxiv peb ntiv tes los ntawm lub log. Lub tes tsho lub qhov maj mam rub lub eccentric bearing, lub hom phiaj yog ua kom lub Upper kawg ntawm cov kabmob cov menyuam nyob ze rau lub nplhaib puab, thiab lub log cycloidal tuaj yeem muab tso rau hauv yooj yim (Ceeb toom: Yog tias qhov taw tes no tsis zoo, txawm tias lub cim yog lawm, nws yuav tsis raug ntsia rau lub sijhawm ntev.)
