N20 Mini Micro Hlau Iav Tsav
Sab nraud txoj kab uas hla: 12mm,
rated voltage: 2.4V, 3V, 6V, 12V;
thim rov qab: CW & CCW;
ua tiav qhov txo qis, tsis tuaj yeem kho.
Dav siv dav hauv kev kho mob, kev zoo nkauj, kev saib xyuas kev noj qab haus huv niam thiab menyuam, tsev ntse, drones, tsheb, chaw ua haujlwm, qauv dav hlau, qauv khoom ua si, cov cuab yeej hluav taws xob, robots thiab lwm yam. Peb muaj 15 xyoo ntawm kev paub nyob rau hauv micro-motor ntau lawm thiab kev loj hlob, muab cov neeg muas zaub nrog saj zawg zog thiab kev customized kev pab cuam.
Hauj lwm lawm
Lub N20 Mini Micro Hlau Gear Tsav ua ke nrog DC lub cev muaj zog thiab lub iav iav nrog cov hlau iav (300: 1), tso cai rau nws muab lub zog torque zoo thiab ib txwm ceev (100 RPM). Kev khiav hauj lwm voltage: 3V rau 9V; Tsis Siv Neeg Load Tam Sim No: 40 mA; Load tam sim no siv: Txog 400 mA. ; torque: 100g * cm; Ceev: 10-15000rpm; Nws muaj cov yam ntxwv ntawm lub teeb yuag, siab torque thiab qis ceev. Qhov no yog mini DC hlau iav lub cev muaj zog rau DIY motors, hluav taws xob xauv, neeg hlau qauv. Tsim los rau kev sib tw robots, tshwj xeeb tshaj yog rau kab thiab maze tom qab robots. Rau cov neeg hlau ceev ceev, nws raug nquahu kom siv 1000 RPM N20 micromotors, uas tuaj yeem hloov kho nrog cov ntsuas thiab cov qauv raws li cov neeg siv khoom xav tau.
Tuam txhab Highlights
Txheej txheem cej luam
Warranty | 3 lub hlis - 1 xyoo |
Qhov Chaw Keeb Kwm | Shenzhen, Suav teb |
Hom Lub Npe | Vshida |
Qauv nab npawb | VSD-GN20 |
Kev siv | Lub teeb follower neeg hlau, ceev kab follower, wireless tsheb, DIY lub cev muaj zog, hluav taws xob xauv, neeg hlau qauv, 3D kos cwj mem, mini sumo neeg hlau, teeb meem zam neeg hlau, lub suab coj neeg hlau, thiab lwm yam. |
Hom | Lub cev muaj zog |
Qhov hnyav | TBD (qhov sib txawv qhov hnyav sib txawv) |
Cheebtsam | Diversifed |
Kev tsim kho | Permanent Magnet |
Kev sib hloov | Txhuam txhuam / txhuam |
Tiv thaiv Feature | Customized (Waterproof, Fireproof, Tag nrho kaw) |
Kev ua tau zoo | 90 feem pua |
Cov kabmob | Pob bearing / Roj bearing |
Rated ceev | 6-15000 (rpm) |
Rated Voltage | 6 (V) |
Pib tam sim no | 40 mA |
| Cov nqe lus them nqi | 30 feem pua ua ntej, 70 feem pua tshuav |
Daim ntawv pov thawj | TIAB SA 16949 |
Customized | Txais |
Product Description
Tsis pub dhau ib hlis, pab pawg R & D ywj pheej tsim ntau yam kev txiav-ntug motors, thiab pab pawg R & D muaj peev xwm tuaj yeem ua raws li koj cov kev xav tau tshwj xeeb.
Lub cev muaj zog Parameter
VOLTAGE | TSIS PUB | NTAWM MAXIMUM EFFICIENCY | Pib | |||||
NOMINAL V | HLUB r / min | Tam sim no A | HLUB r / min | Tam sim no A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | Tam sim no A |
3 | 1000 | 0.03 | 528 | 0.21 | 0.31 | 0.3 | 1.29 | 0.75 |
Customized yam khoom
Lead hlau, connector, mounting qhov, tso zis ncej, thiab ceev
Thov hu rau peb yog tias koj xav tau kom phim tus tsav tsheb, encoder, lossis lub thawv iav.

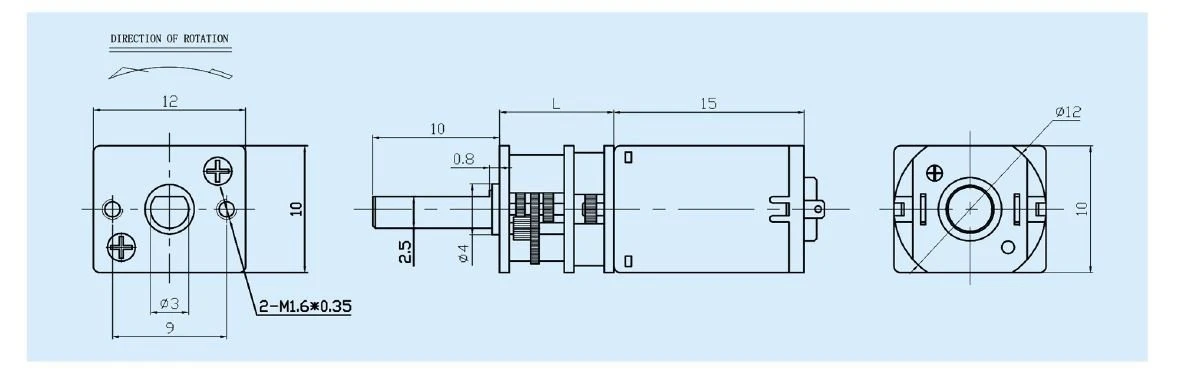

Lub cev muaj zog

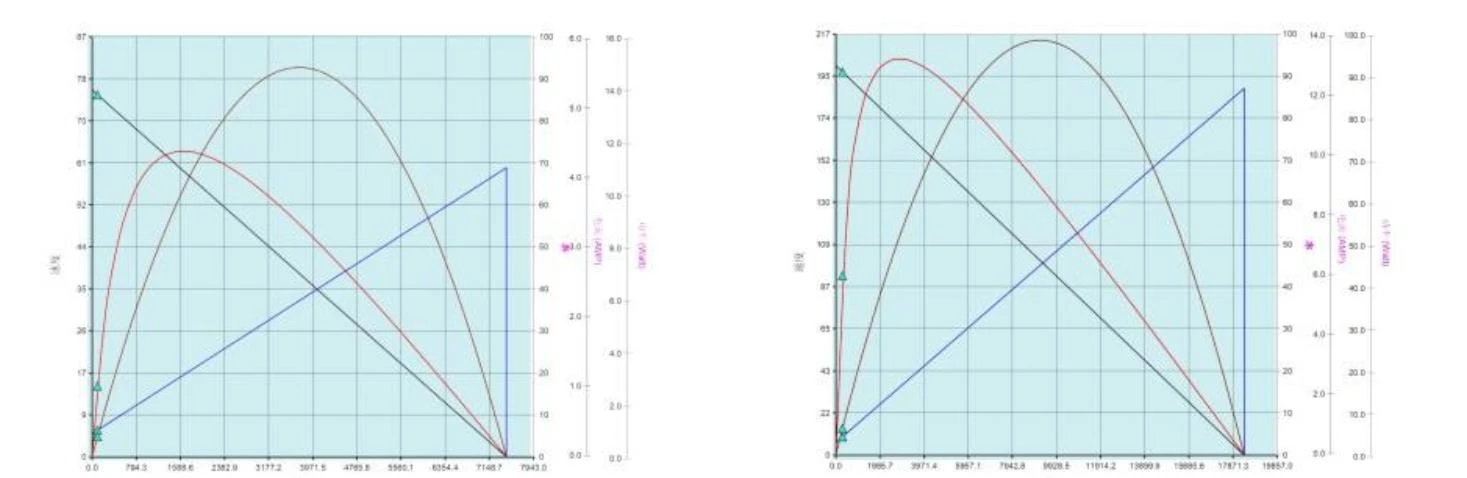

Performance Curve
Cov ntsiab lus hais saum toj no tsuas yog muab raws li kev qhia; tus qauv lub cev muaj zog thiab nws cov kev teeb tsa yuav raug hloov pauv kom haum rau cov neeg siv khoom xav tau.
Khoom Paub meej
| 100 feem pua qhov tseeb duab |
|
Rotor: Kub kub tsis kam, tsis tshua muaj hluav taws xob tam sim no, thiab tsis muaj zog poob yog tag nrho cov yam ntxwv ntawm cov ntshiab tooj liab hlau uas tau coiled nyob ib ncig ntawm ib tug hwm hlau core. | Kawg cap: Siv cov khoom siv zoo tshaj plaws los txhim kho cov cua sov, txhim kho lub cev muaj zog rotor, thiab ua kom lub neej ntev ntawm cov khoom. | |
| 100 feem pua qhov tseeb duab |
|
Cov kabmob: txo lub suab nrov ntawm lub cev muaj zog, nce kev pab cuam lub neej, thiab lav zoo, cov neeg siv khoom tuaj yeem xaiv cov roj-impregnated bearings thiab pob bearings. | Chassis: Xaiv cov ntaub ntawv uas muaj zog, kav ntev, tsis muaj xeb thiab xeb, hnav thiab tsim kua muag, thiab qhov ntawd kuj muaj lub neej ua haujlwm ntev. |
Product Description
1. Txhua lub zog hlau yuav ua kom lub neej ntev kev pab cuam, siab torque thiab qis suab nrov. Kev ua tau zoo dua li cov khoom siv hlau zoo tib yam, tiv thaiv lub rooj zaum, tsis muaj cov hniav sib tsoo.
2. Cov khoom siv zoo heev rau kev siv lub neej ntev, tiv thaiv lub iav lub cev lub cev lub cev.
3. Lub N20 Mini Micro Hlau Gear Tsav muaj lub cev me me, lub zog siab, tsis tshua muaj suab nrov, muaj zog bearing muaj peev xwm, thiab muaj zog thiab ruaj khov.
4. Lub cev muaj zog muaj zog thiab tuaj yeem ntsia tau rau hauv ntau daim ntawv thov. Xws li robotics thiab automation tej yaam num, DIY motors, hluav taws xob locks, neeg hlau qauv, lub teeb nram qab no robots, ceev kab followers, wireless tsheb, thiab lwm yam.
5. Kev xav tau: Gearbox txo qhov piv: 298: 1; Gearbox yog tiaj thiab tsis khoov. Lub gearbox rotates flexibly. Lub axial clearance ntawm cov zis ncej yog 0 05-0.3mm. Tag nrho cov khoom yog raws li RoHS.
Lub tuam txhab muaj zog
Lub tuam txhab Vshida Micro Motor ntiav ntau tshaj 500 tus neeg, ntau tshaj 40 cov kab ntau lawm, thiab qib siab ntawm automation los tsim 200,000 motors txhua hnub. Tsis tas li ntawd, peb muaj ib pab neeg ua lag luam uas muaj qhov tseem ceeb tshaj plaws ntawm kev siv tshuab, kev ua tau zoo, thiab kev cia siab rau cov neeg siv khoom kom xa tau yooj yim, cov kev pabcuam kws tshaj lij uas tau txais txiaj ntsig zoo rau cov neeg siv khoom xav tau txhawm rau tsim cov txiaj ntsig yeej-yeej.
Lub tshuab tsis siv neeg winding, lub tshuab stator tsis siv neeg, lub tshuab stator tsis siv neeg rau lub hau kawg, thiab lub tshuab tsis siv neeg soldering yog cov piv txwv ntxiv ntawm cov khoom siv lub cev muaj zog.
lub chaw soj nstuam rau kev ntsuas kev ntseeg tau, nrog rau kev sim rau tej yam xws li tshuaj tsuag ntsev, suab nrov, dej tsis zoo, lub neej, thiab kev sib tsoo. Qhov zoo tshaj warranty rau koj lub cev muaj zog
Daim ntawv pov thawj khoom
Ib txhia ntawm peb cov neeg koom tes
Raws li ib tus neeg koom tes ntseeg siab hauv Suav teb, peb zoo siab ua haujlwm nrog koj. Tau ntau xyoo, peb lub hom phiaj yog muab DC motors rau feem coob ntawm European thiab Asmeskas kev lag luam.
Vim li cas thiaj xaiv peb?
Daim ntawv thov
Micro motors muaj ntau yam kev siv, thiab cov qauv tsis tuaj yeem hloov kho kom tau raws li ntau yam kev thov. Tiv tauj peb yog tias koj muaj tej yam kev cai tshwj xeeb.
Thauj Ntim
Cov ntaub ntawv ntim khoom:
1. Txheem thawv / ua npuas ncauj rau export.
2. Kev ntim khoom tus kheej raws li koj xav tau
3. 1000 daim ib ctn Loj ntawm ib lub thawv: 37.8 * 29.5 * 26.8 cm 10.6 kg ib lub thawv, tag nrho
Net nyhav ib unit: 9.6 g
Yog tias koj xav tau cov kev pabcuam tshwj xeeb, thov hu rau peb ua ntej.
Kev Them Nyiaj & Xa
Lub luag haujlwm ntawm Hall lossis photoelectric encoder hauv N20 Mini Micro Hlau Gear Tsav
Lub Hall encoder siv los ntawm N20, tus encoder tuaj yeem tawm tswv yim 3 teeb liab thaum ib lub cev muaj zog tig ib lub kiv puag ncig. Yog tias qhov kev txo qis yog 100, ces cov zis ncej ntawm lub reducer tuaj yeem sau 300 cov cim rau ib lub kiv puag ncig. Qhov tseeb no yog siv rau cov khoom siv dav dav dav txaus. Lub photoelectric encoder siv los ntawm N20, tus encoder tuaj yeem tawm tswv yim 48 teeb liab thaum ib lub cev muaj zog tig ib lub kiv puag ncig. Yog tias qhov kev txo qis yog 100, ces qhov tso zis ncej ntawm lub iav lub thawv tig ib lub kiv puag ncig thiab cov cuab yeej tuaj yeem sau tau 4800 cov cim, uas yog sib npaug rau qhov tseeb ntawm txhua lub teeb liab rau 0.075 Siv. Cov khoom no feem ntau yog siv rau cov khoom siv ultra-high-precision.
Yog tias koj muaj lwm yam kev xav tau, thov hu rau peb thiab teb rau koj qhov kev nug hauv 24 teev
