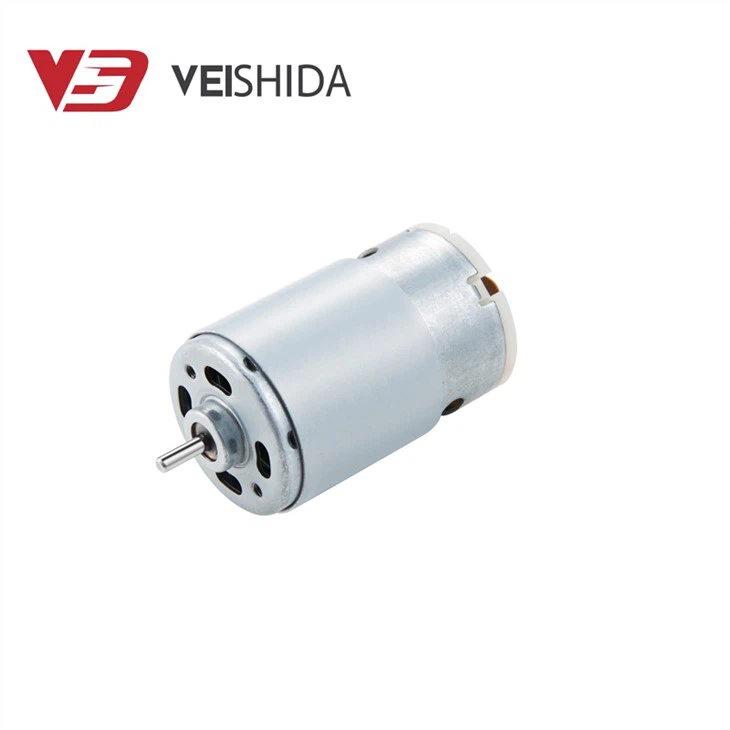

12V 550 DC Tsav Round Ncej
Output ncej ntev: 14.5 ± 0.5 hli,
axial clearance: 0 05-0.5 hli;
sab nraud txoj kab uas hla: 57 mm;
dav: 37.5 mm
12V 550 DC lub cev muaj zog round ncej yog dav siv hauv kev kho mob, kev zoo nkauj, kev saib xyuas kev noj qab haus huv ntawm niam thiab menyuam, lub tsev ntse, tsheb, chaw ua haujlwm, qauv dav hlau, khoom ua si thiab qauv, neeg hlau thiab lwm yam. Peb muaj ntau xyoo ntawm kev paub nyob rau hauv micro-motor ntau lawm thiab kev tshawb fawb thiab kev loj hlob, escort koj cov khoom, thiab muab cov neeg muas zaub nrog saj zawg zog thiab kev customized kev pab cuam.
Hauj lwm lawm
Txheej txheem cej luam
Warranty | 3 lub hlis - 1 xyoo |
Qhov Chaw Keeb Kwm | Guangdong, Suav teb |
Hom Lub Npe | Vshida |
Qauv nab npawb | VRK-550SA |
Kev siv | Cov twj tso kua mis, cov twj tso kua mis, cov cuab yeej siv hluav taws xob tsis muaj zog, cov khoom ua si thiab cov qauv, cov khoom siv hauv tsev, cov cuab yeej siv hluav taws xob, cov qauv tswj wireless, cov ntsia hlau hluav taws xob, cov neeg hlau, kev kho mob, kev kho tus kheej, kev lag luam, thiab lwm yam. |
Hom | Brushed dc lub cev muaj zog |
Qhov hnyav | TBD (qhov sib txawv qhov hnyav sib txawv) |
Cheebtsam | Diversifed |
Kev tsim kho | Permanent Magnet |
Kev sib hloov | Txhuam |
Tiv thaiv Feature | Customized |
| Voltage ntau | 5-18 V |
| Cov kabmob | Roj-impregnated lossis pob bearings (tuaj yeem kho tau) |
Kev ua tau zoo | 80 feem pua |
Tso zis zog | 5.0-80 W |
Rated ceev | 5450 (rpm) |
| Rated tam sim no | 0.942 A |
Rated Voltage | 15 (V) |
Pib tam sim no | 5.548 A |
| Pib torque | 142,030 (NM) |
Rated torque | 20.619 (NM) |
Qhov ntev | 57 * 37.5 hli |
Cov nqe lus them nqi | 30 feem pua ua ntej, 70 feem pua tshuav |
Daim ntawv pov thawj | IATF 16949 2016 |
Customized | Txais |
Tuam txhab Highlights
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 4500000 Daim / Daim Ib Hlis dc lub cev muaj zog
Ntim & Xa
Ntim Cov Lus Qhia
Micro motor packing: Carton Box Peb tus qauv shipping cim rau txhua tus qauv yog raws li hauv qab no Q'ty: pcs NW: kgs GW: kgs Meas.: L * H * W cm Koj tus kheej shipping qhia yog txais tos.
Chaw nres nkoj: Shenzhen / HongKong
Product Description
Qhov nruab nrab ntawm ob lub hlis los tsim lub cev muaj zog tshiab
Khoom Parameter
VOLTAGE | TSIS PUB | NTAWM MAXIMUM EFFICIENCY | Pib | ||||||
Kev ua haujlwm RANGE | NOMINAL V | HLUB r / min | Tam sim no A | HLUB r / min | Tam sim no A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | Tam sim no A |
5-15 | 12 | 3400 | 0.140 | 0.793 | 24.023 | 7.270 | 160.099 | 4.492 | 2.348 |
| 10-18 | 24 | 5450 | 0.160 | 0.942 | 20.619 | 10.059 | 142.030 | 5.548 | 0.063 |
Khoom Loj
Performance Curve
Cov lus qhia saum toj no tsuas yog siv rau kev siv xwb, hom thiab qhov tsis muaj qhov tshwj xeeb brushed dc lub cev muaj zog tuaj yeem hloov kho
Khoom nta
Cov qauv yooj yim; kev ua haujlwm ruaj khov, zoo pib thiab nres cuam tshuam; ceev teb ceev, loj pib torque; siab tswj precision; Tsis tshua muaj suab nrov, lub neej ntev, customized technical data (tso zis ncej, ceev, voltage).
Khoom Paub meej
| 100 feem pua qhov tseeb duab |
|
Rotor: ntshiab tooj liab hlau qhov txhab, Cov tub ntxhais hlau yog ua los ntawm cov khoom siv silicon steel, qhov tam sim no me me, lub zog loj, kev ua haujlwm ruaj khov, lub kauj yog ruaj khov thiab tsis sib xws, thiab cov ntawv insulating yog siv. | Lub hau kawg: Lub hau rov qab yog ua los ntawm cov khoom siv raw zoo, nrog rau cov lus qhia zoo thiab kev ua siab ntev me me, thiab cov txhuam hniav ntawm ob qho kawg yog sib npaug sib npaug hauv cov ncej tig. | |
| 100 feem pua qhov tseeb duab |
|
Bearing: xaiv hom kabmob, zoo yog guaranteed (cov kabmob tuaj yeem kho tau) | Chassis: xaiv cov ntaub ntawv zoo nrog cov hardness siab, corrosion kuj, hnav tsis kam thiab xeb kuj, thiab muaj lub neej ntev kev pab cuam. |
Peb Qhov Zoo
1.550 lub cev muaj zog siv hluav taws xob tsawg thiab suab nrov tsawg. Txhim kho cov kabmob zoo thiab kev pabcuam lub neej ntawm lub cev muaj zog, thiab tsis tshua muaj zog.
2. Cov qauv sab hauv txais yuav lub nplhaib hlau nplaum, cov hlau nplaum kuj yog ib qho nyuaj, qhov kub thiab txias yog qhov zoo, cov hlau nplaum yog ruaj khov, thiab cov suab nrov khiav qis.
3. Hnav-resistant carbon hlau txhuam, zoo tooj liab core kub insulating txheej rotor, ferrite hlau nplaum, muaj zog
Nruab nrog lub nplhaib flux thiab kiv cua txias (raws li cov neeg siv khoom xav tau).
4. Peb yog lub Hoobkas muaj zog nrog lub koob npe nrov. 100 feem pua ntawm cov khoom xa tuaj raws sij hawm lees paub tias koj cov khoom tuaj txog hauv lub sijhawm.
5. Nrog pab pawg R&D ywj pheej, cov qauv yuav raug tsim nyob rau hauv 3-5 hnub. Customized samples yuav npaj rau kev pov thawj ntau lawm hauv 20 hnub, teb raws sijhawm, koj cov lus yuav teb rau hauv 24 teev.
6. Muab kev pabcuam OEM thiab ODM rau cov neeg siv khoom
Lub tuam txhab muaj zog
Daim ntawv pov thawj khoom
Ib txhia ntawm peb cov neeg koom tes
Peb tau cog lus rau kev lag luam tsav tsheb ntau xyoo, npog feem ntau ntawm European thiab Asmeskas kev lag luam, thiab tos ntsoov los ua koj tus khub mus sij hawm ntev hauv Suav teb.
Daim ntawv thov
Thauj Ntim
Shockproof ua npuas ncauj ntim, haum thawv loj.Yog tias koj muaj kev xav tau tshwj xeeb, thov hu rau peb ua ntej.
Yuav Cov Lus Qhia
Kev Them Nyiaj & Xa
Lub 550 brushed lub cev muaj zog yog tsim los ua lub tshuab fais fab / laum lub cev muaj zog los hloov lub cev muaj zog pom nyob rau hauv ntau 3/8 "drills thiab lwm yam khoom siv sab nraum zoov tsis muaj zog. Tsis tas li qhov kev xaiv nrov rau DIY hluav taws xob thiab neeg hlau PowerWheels, qhov rooj qhib, thiab ntau dua.
Thov nco ntsoov:
Tsis muaj lossis siv tau rau txhua tus qauv, nco ntsoov xyuas koj cov kev xav tau tshwj xeeb ua ntej yuav khoom, thiab yog tias koj hloov lub cev muaj zog, nco ntsoov xyuas tias lub cev muaj zog sib phim koj qhov loj thiab qhov ntev thiab txoj kab uas hla ua ntej yuav khoom. Los yog tiv tauj peb kom pom zoo (tom qab hloov kho) lub cev muaj zog tshaj plaws rau koj, tos ntsoov rau koj qhov kev nug, Kuv xav kom koj lub neej zoo siab, ua tsaug!
