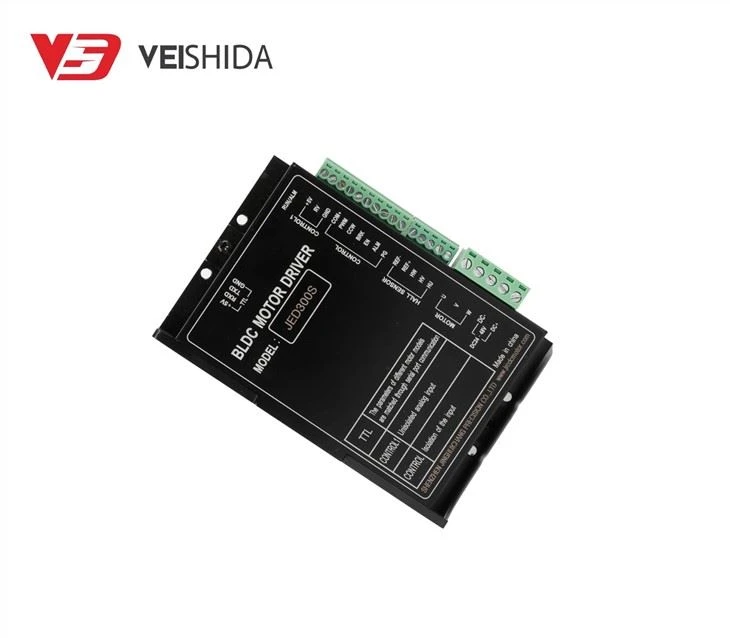

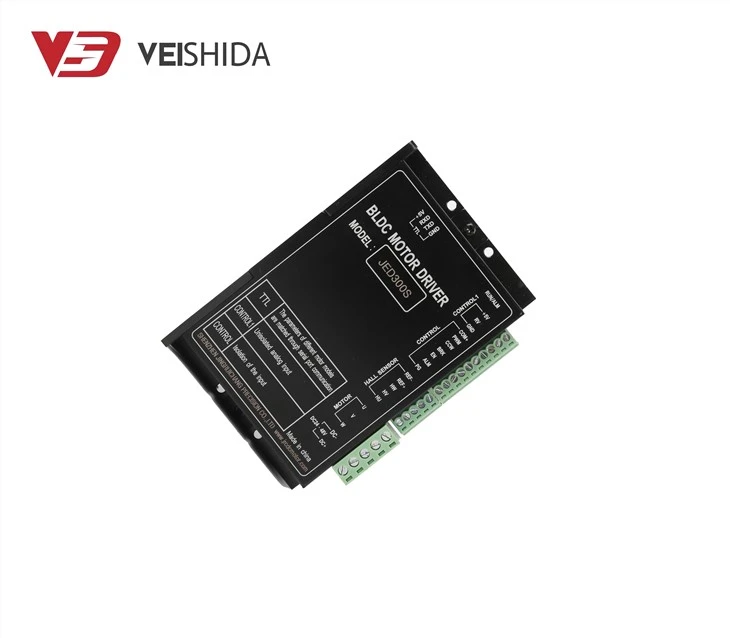

Brushless DC Tsav Tsav

Brushless DC Tsav Tsav Tsheb siv lub tshuab hluav taws xob tam sim no tshawb pom thev naus laus zis, txhuam DC lub cev muaj zog ceev kom paub tus kheej thev naus laus zis, kev siv hluav taws xob tam sim no tsis tu ncua tam sim no braking (lossis braking) thev naus laus zis thiab muaj zog PID kev tswj thev naus laus zis los tswj lub cev muaj zog pib, nres (braking), txheej txheem kev sib hloov thiab thaiv kev tiv thaiv. . Lub sij hawm teb lub cev muaj zog yog luv, thiab lub zog recoil me me; cov zis tam sim no raug saib xyuas hauv lub sijhawm tiag tiag los tiv thaiv overcurrent thiab tiv thaiv lub cev muaj zog thiab tsav tau zoo. Thiab lub cev muaj zog ntsuas tam sim no tuaj yeem teeb tsa los ntawm kev hloov pauv lossis qhov chaw nres nkoj serial, uas tuaj yeem ua rau lub cev muaj zog pib, nres thiab thaiv tam sim no txwv rau lub cev muaj zog tam sim no ntau yam, muaj txiaj ntsig thiab nyab xeeb.

Tuam txhab Highlights

Txheej txheem cej luam

Product Description

Muaj zog tshawb fawb thiab kev loj hlob txuj ci; tuaj yeem tsim ntau yam tshiab motors.Thov tiv tauj peb yog tias tus neeg siv khoom muaj kev thov tshwj xeeb. Koj cov lus nug hauv online yuav tau txais lus teb los ntawm peb hauv 24 teev. Cov kev xav tau ntawm cov neeg siv khoom yuav txaus siab rau txhua qhov kev siv tshuab.

Khoom Paub meej

Brushless DC Tsav Tsav Tsheb ua haujlwm zoo

◆ Voltage ntau 9 ~ 36V, loj load tam sim no 10A, ntsuas tam sim no 8A.

◆ Ib qho / ob chav potentiometer, 0~ 10V analog teeb liab nrog 5V lossis 24V logic qib, hloov, -5V ~ ntxiv rau 5V qhov sib txawv analog teeb liab lossis RS485 ntau lub tswv yim tawm tswv yim.

◆ PWM kev tswj ceev (voltage regulation), torque control (steady current), self-testing/sternal speed generator kaw-loop speed regulation (steady speed) ntau hom kev tswj ceev.

◆ lub cev muaj zog tam sim no PID kev cai, loj load / nres tam sim no configurable, luv luv lub cev muaj zog pib / nres / commutation lub sij hawm thiab me me cuam tshuam quab yuam.

◆ Forward/reverse ob-txoj kev ceev tswj, preset rau pem hauv ntej/reverse ceev thiab cia, pib / nres thiab kev taw qhia tswj los ntawm kev hloov / khawm.

◆ Ob qhov txwv hloov pauv tuaj yeem txuas nrog sab nraud kom faib cov kev txwv rau pem hauv ntej thiab thim rov qab.

◆ Lub cev muaj zog ntau dhau thiab thaiv qhov txwv tam sim no, txhawm rau tiv thaiv kev puas tsuaj rau lub cev muaj zog, txhawb kev thaiv qhov txwv tsis pub.

◆ Txhawb kev sib txuas lus ntau qhov chaw, yooj yim rau ntau yam tswj (xws li microcontroller, PC lossis PLC) tswj, txhawb kev sib txuas lus cuam tshuam kev tiv thaiv.

◆ 18kHz PWM zaus, tsis muaj PWM sib cav suab rau lub cev muaj zog tswj kev ceev.

◆ PWM tsawg kawg nkaus, tsuas yog {{0}}.5us, PWM siv tau ntau yam 0.1 feem pua ​​~ 99.9 feem pua.

◆ Txhua qhov cuam tshuam ESD tiv thaiv, tuaj yeem hloov kho rau thaj chaw nyuaj.

◆ Siv cov tuab tuab aluminium alloy loj lub dab dej kub, ua kom muaj cua sov zoo.

Lub tuam txhab muaj zog

Lub tuam txhab Vshida Micro Tsav tsim 200, 000 lub cev muaj zog txhua hnub siv ntau dua 40 cov kab tsim khoom, ntau tshaj 500 tus neeg ua haujlwm tsim khoom, thiab qib siab ntawm automation. Tsis tas li ntawd, peb muaj ib pab neeg ua lag luam uas muaj peev xwm ua tau raws li qhov xav tau ntawm cov neeg siv khoom ua ntej, ua qhov tseem ceeb hauv txhua qhov nws ua, thiab tso siab rau cov cuab yeej siv los muab cov neeg siv khoom hloov tau yooj yim, cov kev pabcuam kws tshaj lij uas tau ua raws li lawv cov kev xav tau txhawm rau ua kom tiav qhov yeej-yeej. qhov tshwm sim.

Daim ntawv pov thawj khoom

Ib txhia ntawm peb cov neeg koom tes

Vim peb pab neeg R&D ywj siab, kev tsim qauv tsim, thiab 15 xyoo ntawm lub cev muaj zog R & D thiab kev tsim khoom, kev ua haujlwm nrog peb txhais tau tias xaiv ua haujlwm nrog kev xav zoo, cov chaw tsim khoom zoo.

Daim ntawv thov

Thauj Ntim

Thov hu rau peb yog tias koj xav tau lwm yam kev xav tau ntim tshwj xeeb.

Muaj peev xwm muab khoom: Ntau tshaj 200000 DC motors nrog ib hnub

Ua npuas ncauj hauv qhov ntev yog 350x265x280mm.

Qhov loj me ntawm lub thawv sab nrauv: 365 * 275 * 320mm.

350 pcs; 16,7kg ib

Kev Them Nyiaj & Xa

Brushless DC Tsav Tsav Taw Qhia

Rau cov motors siab zog (feem ntau tsis muaj load tam sim no 0.5A lossis ntau dua), qhov tsav no tuaj yeem ntsuas qhov sib hloov zaus ntawm lub cev muaj zog commutator yam tsis muaj lub ntsuas ntsuas ceev. Kev sib hloov zaus yog muab faib los ntawm tus naj npawb ntawm lub sij hawm lub cev muaj zog rotates rau ib lub kiv puag ncig thiab ces muab faib los ntawm 60 yog lub cev muaj zog ceev (lub cev muaj zog ceev=60 * commutation zaus / pes tsawg zaus lub cev muaj zog rotates rau ib lub kiv puag ncig), uas muaj peev xwm paub txog qhov thaiv kev txiav txim siab thiab kev ua kom nrawm nrawm (piv txwv li kev hloov pauv ua rau kev hloov ceev, tus neeg tsav tsheb yuav tau kho qhov nrawm mus rau qhov nrawm dhau los).

Lub cev muaj zog load yog loj dhau los yog thaiv kev sib hloov tsav yuav stabilize cov zis tam sim no, cov zis tam sim no tus nqi rau preset rated tam sim no; ntev npaum li qhov kev xaiv sib tw thiab teeb tsa qhov tsis raug, tuaj yeem tiv thaiv lub cev muaj zog thiab tsav, lub sijhawm ntev thaiv kev sib hloov 10A tsis muaj teeb meem txhua!

Lub cev muaj zog pib thiab nres txheej txheem yog du, lub sij hawm pib txheej txheem feem ntau luv dua lub sij hawm nres, lub cev muaj zog rau pem hauv ntej thiab rov qab hloov lub sij hawm yog me ntsis ntev dua lub sij hawm nres, ze rau 0.1S.

◆ Kev them nyiaj yug tsav sab hauv kev ntsuas kub, tuaj yeem teeb tsa rau kev tiv thaiv kub dhau.

◆ Txhawb tsav fais fab mov voltage kev soj ntsuam sab hauv, configurable overvoltage / undervoltage shutdown xyuas tus nqi.

◆ Txhawb nqa ntau cov zis tam sim no, thiab cov zis loj torque thaum pib thiab thauj khoom loj.

Yog tias koj muaj lwm yam kev xav tau ntawm lub cev muaj zog, thov hu rau peb thiab teb koj cov lus nug hauv online 24 teev hauv ib hnub.
