High Performance Brushless DC Tsav
Output ncej ntev: 8.0 ±0.5 (mm);
Axial clearance: 0 05-0.5 (mm);
Sab nraud txoj kab uas hla: 30mm,
Ntev: 35mm
Kev ua haujlwm siab brushless dc lub cev muaj zog yog siv dav hauv kev kho mob zoo nkauj, kev saib xyuas kev noj qab haus huv niam thiab menyuam, tsev ntse, tsheb, chaw ua haujlwm, qauv dav hlau thiab lwm yam haujlwm. Peb muaj ntau xyoo dhau los ntawm kev tsim thiab kev loj hlob ntawm micro motors, thiab peb tsim lub cev muaj zog tshiab hauv qhov nruab nrab ntawm ob lub hlis.
Hauj lwm lawm
Txheej txheem cej luam
Warranty | 3 hli-1xyoo |
Qhov Chaw Keeb Kwm | Guangdong, Suav teb |
Hom Lub Npe | Vshida |
Qauv nab npawb | VBL-3035 |
Kev siv | Cov khoom siv hauv tsev, khoom siv kho mob, cov cuab yeej hluav taws xob, cov khoom lag luam, cov khoom siv hluav taws xob, cov twj tso kua mis, cov twj tso kua mis, lub tshuab nqus tsev twj, centrifuges, mixers, kiv cua, hluav taws xob curtains, printers, copiers, projectors, ATMs, vending machines, thiab lwm yam. |
Hom | BLDC lub cev muaj zog |
Qhov hnyav | TBD (qhov sib txawv qhov hnyav sib txawv) |
Cheebtsam | Diversifed |
Kev tsim kho | Permanent Magnet |
Kev sib hloov | Tsis txhuam |
Tiv thaiv Feature | Customized |
Kev ua tau zoo | 85 feem pua |
Khoom npe | Micro lub cev muaj zog |
Rated Voltage | 12.0V |
Rated zog | 2.164（W） |
Pib torque | 31, 386 m |
| Tsis muaj load | 5223 r / min |
Cov nqe lus them nqi | 30 feem pua ua ntej, 70 feem pua tshuav |
Qhov ntev | 30.5 * 30.3 hli |
Customized | Txais |
Tuam txhab Highlights
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 4500000 Daim / Daim Ib Hlis dc lub cev muaj zog
Ntim & Xa
Ntim Cov Lus Qhia
Micro motor packing: Carton Box Peb tus qauv shipping cim rau txhua tus qauv yog raws li hauv qab no Q'ty: pcs NW: kgs GW: kgs Meas.: L * H * W cm Koj tus kheej shipping qhia yog txais tos.
Chaw nres nkoj: Shenzhen / HongKong
Product Description
Qhov nruab nrab ntawm ob lub hlis los tsim lub cev muaj zog tshiab
Khoom Parameter
VOLTAGE | TSIS PUB | NTAWM MAXIMUM EFFICIENCY | Pib | ||||||
Ua haujlwm RANGE | NOMINAL V | HLUB r / min | Tam sim no A | HLUB r / min | Tam sim no A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | Tam sim no A |
| 8-26 | 12 | 5223 | 0.120 | 4098 | 0.437 | 6.761 | 2.901 | 31.386 | 1.592 |
Khoom Loj
Performance Curve
Cov lus qhia saum toj no yog rau kev siv nkaus xwb, hom thiab tsis muaj qhov tshwj xeeb kev ua haujlwm siab brushless dc lub cev muaj zog tuaj yeem kho tau.
Khoom Feature
Kev ua haujlwm siab brushless DC lub cev muaj zog tuaj yeem khiav ntawm qhov ceev thiab lub zog siab, dav dav, kev ua haujlwm siab, kev ntseeg tau zoo, tsis tshua muaj suab nrov, kev saib xyuas yooj yim, lub neej ntev, muaj zog yoog raws, cov ntaub ntawv kho mob.
Khoom Paub meej
| 100 feem pua qhov tseeb duab |
|
Rotor: ntshiab tooj liab hlau qhov txhab, hlau zoo core, kub tsis kam, txo lub zog noj, txo tam sim no kuj | Bearings: xaiv hom bearings kom txo lub cev muaj zog suab nrov thiab xyuas kom zoo (cov kabmob tuaj yeem kho tau) | |
| 100 feem pua qhov tseeb duab |
|
Lub hau kawg: siv cov ntaub ntawv zoo raw khoom los ua kom lub neej ua haujlwm, txhim kho lub rotor ntawm lub cev muaj zog, thiab muaj cov nyhuv tshav kub. | Chassis: Cov ntaub ntawv zoo nrog siab hardness, kub tsis kam, corrosion kuj, hnav tsis kam thiab xeb kuj raug xaiv, thiab kev pabcuam lub neej ntev dua |
Peb Qhov Zoo
1. Lub neej ntev brushless lub cev muaj qhov ua tau zoo ntawm 80-90 feem pua, zoo sib xws, txhim khu kev qha kev ua tau zoo, tsis ua hauj lwm tsawg, thiab tau dhau los ua lub neej nruj heev. Ob leeg sab hauv thiab sab nraud yog muaj. PWM ceev tswj, FG teeb liab tawm tswv yim thiab braking muaj nuj nqi, cov zis mem tes tuaj yeem kho.
2. Cov khoom siv: Lub cev muaj zog DC brushless yog ua los ntawm cov hlau ntshiab tooj liab zoo, uas yog ruaj khov thiab tsis yooj yim tawg. Fashionable thiab zoo nkauj, yooj yim thiab elegant, zoo gloss.
3. Daim ntawv thov: 12v lub cev muaj zog yog tsim rau cov cuab yeej siv hluav taws xob, cov khoom lag luam, khoom siv kho mob, khoom siv hauv tsev thiab lwm yam, nrog rau ntau yam kev siv;
4. Lub neej ua haujlwm ntev. Yooj yim rau xaim thiab nruab. Compact loj, me me, siab torque, yooj yim nqa.
5. Peb pab neeg tsim khoom muaj ntau tshaj 500 tus neeg ua haujlwm, nrog rau qib siab ntawm automation thiab muaj peev xwm tsim tau txhua xyoo ntawm 60 lab units. Peb kuj muaj cov kws tshaj lij kev lag luam, cov neeg siv khoom zoo, zoo li lub hauv paus, thev naus laus zis raws li kev tsav tsheb, muab cov neeg siv khoom hloov pauv thiab cov kev pabcuam tshaj lij kom ua tiav kev sib nrig sib pab thiab yeej-yeej tau.

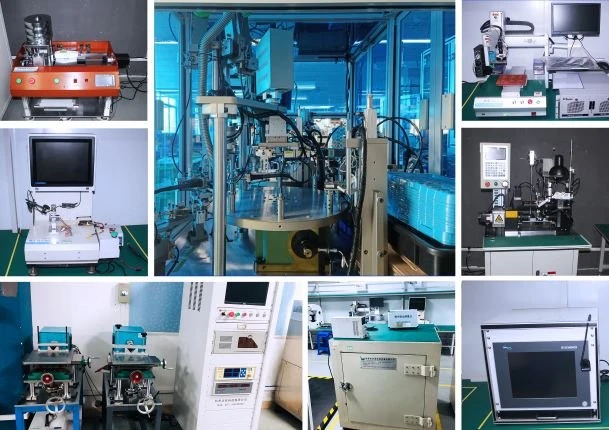

Lub tuam txhab muaj zog
Daim ntawv pov thawj khoom
Ib txhia ntawm peb cov neeg koom tes

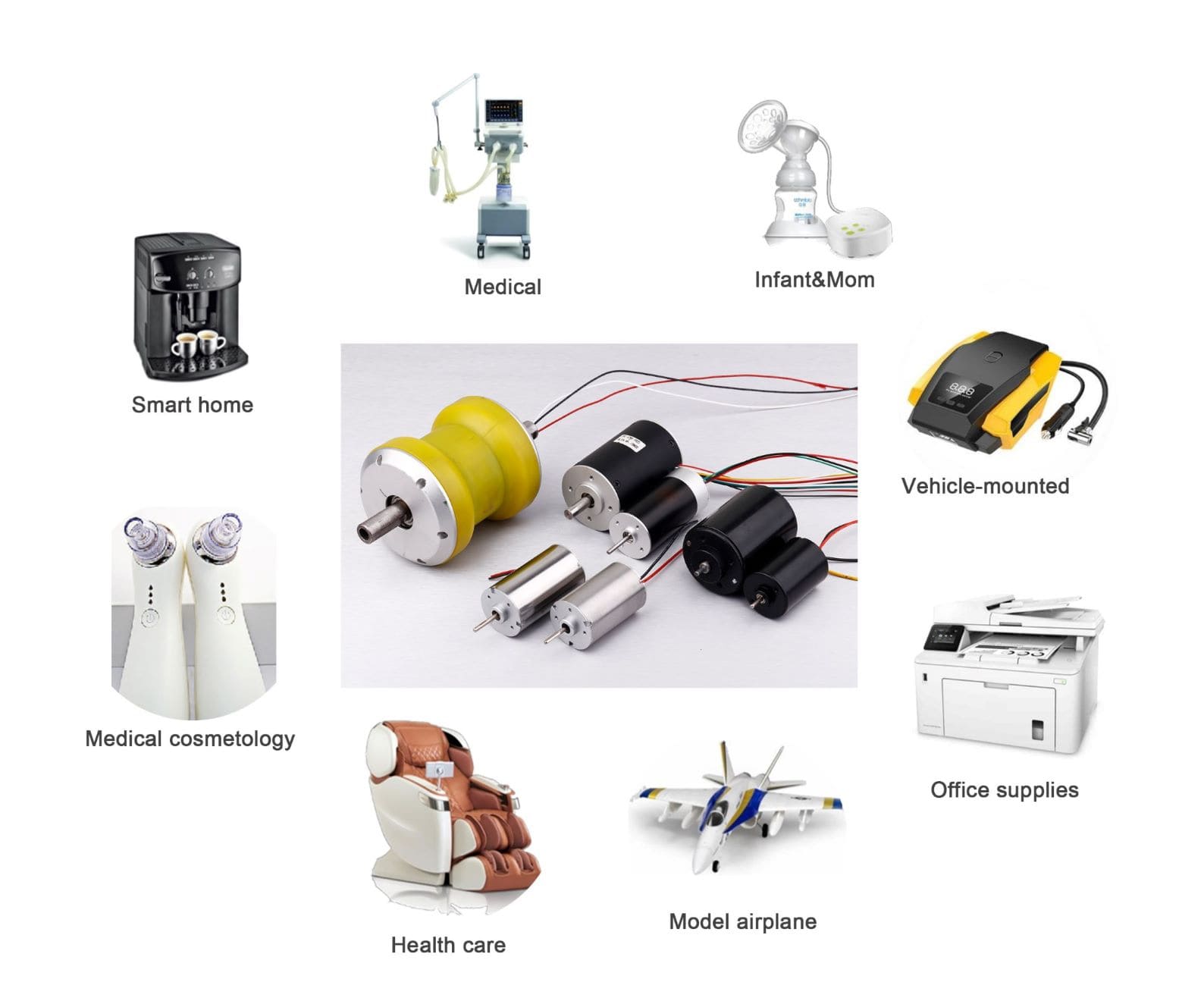

Daim ntawv thov
Thauj Ntim
Yog tias koj muaj kev xav tau tshwj xeeb, thov hu rau peb ua ntej.
Yuav Cov Lus Qhia
Kev Them Nyiaj & Xa
FAQ
Q1. Kuv puas tuaj yeem xaj cov qauv?
Zoo siab txais tos cov qauv txiav txim los kuaj thiab xyuas qhov zoo. Tom qab cov qauv kuaj tau tsim nyog, nws yuav tsim ntau raws li koj xav tau.
Q2. Yuav ua li cas txog lub sij hawm xa khoom?
A: Lub sijhawm xa khoom yog 25 hnub ua haujlwm, lub sijhawm tshwj xeeb yuav luv dua lossis ntev dua vim koj qhov ntau thiab lub caij txiav txim.
Q3. Koj xa koj cov khoom li cas thiab yuav siv sijhawm ntev npaum li cas thiaj tuaj txog?
A: Peb feem ntau xa los ntawm DHL, UPS, FedEx lossis TNT. Feem ntau nws yuav siv sijhawm 3-5 hnub los txog. Cua thiab hiav txwv shipping kuj xaiv tau. Yog tias koj muaj lwm yam kev xav tau kev thauj mus los, koj tuaj yeem muab tso rau lawv, thiab muab cov lus teb txaus siab rau koj ntau li ntau tau.
Q4. Yuav tso qhov kev txiav txim li cas?
Qhia rau peb paub koj qhov kev xav tau lossis daim ntawv thov thiab peb yuav hais thiab qhia raws li koj qhov yuav tsum tau muaj / peb tus qauv pom zoo. Cov neeg siv khoom lees paub cov qauv thiab tso nyiaj rau kev txiav txim, thiab peb npaj cov khoom.
Q5: Koj puas muaj peev xwm ua ODM kev pabcuam?
Raws li peb cov kab ntau lawm thiab peb pab pawg R & D nrog ntau tshaj 10 xyoo ntawm lub twj tso kua mis thiab lub cev muaj zog, koj cov kev xav tau ODM tau txais tos txais tos.
