Me me 12V DC Brushless Tsav
Sab nraud txoj kab uas hla: 28mm;
Qhov siab: 58mm;
, Axial clearance: 0 05-0.5mm
Me 12V DC brushless lub cev muaj zog yog dav siv hauv kev kho mob, kev zoo nkauj, kev saib xyuas kev noj qab haus huv ntawm niam thiab menyuam, tsev ntse, tsheb, chaw ua haujlwm, qauv dav hlau thiab lwm yam. Peb muaj ntau xyoo ntawm micro-motor ntau lawm thiab R&D kev paub los coj koj cov khoom, thiab tsim cov khoom siv lub cev muaj zog tshiab hauv qhov nruab nrab ntawm ob lub hlis.
Hauj lwm lawm
Txheej txheem cej luam
Warranty | 3 hli-1xyoo |
Qhov Chaw Keeb Kwm | Guangdong, Suav teb |
Hom Lub Npe | Vshida |
Qauv nab npawb | VBL-2857 |
Kev siv | Kev kho tus kheej, khoom siv kho mob, cov cuab yeej hluav taws xob, cov cuab yeej ua lag luam, khoom siv hauv tsev, hluav taws xob curtains, kiv cua, Sphygmomanometers, centrifuges, nyiaj suav tshuab, tshuab luam ntawv, tshuab luam ntawv, tshuab ziab khaub ncaws, tshuab ntxhua khaub ncaws, twj tso kua mis, cua twj, thiab lwm yam. |
Hom | Brushless lub cev muaj zog |
Qhov hnyav | TBD (qhov sib txawv qhov hnyav sib txawv) |
Cheebtsam | Diversifed |
Kev tsim kho | Permanent Magnet |
Kev sib hloov | Tsis txhuam |
Tiv thaiv Feature | Customized |
Kev ua tau zoo | 85 feem pua |
Khoom npe | Micro lub cev muaj zog |
Rated Voltage | 12.0V |
Pib tam sim no | 7.885 A |
Pib torque | 142.901 mNm ib |
Tsis muaj load ceev | 5448 |
Cov nqe lus them nqi | 30 feem pua ua ntej, 70 feem pua tshuav |
Daim ntawv pov thawj | IATF16949: 2016 |
Customized | Txais |
Tuam txhab Highlights
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 4500000 Daim / Daim Ib Hlis dc lub cev muaj zog
Ntim & Xa
Ntim Cov Lus Qhia
Micro motor packing: Carton Box Peb tus qauv shipping cim rau txhua tus qauv yog raws li hauv qab no Q'ty: pcs NW: kgs GW: kgs Meas.: L * H * W cm Koj tus kheej shipping qhia yog txais tos.
Chaw nres nkoj: Shenzhen / HongKong
Product Description
Qhov nruab nrab ntawm ob lub hlis los tsim lub cev muaj zog tshiab
Khoom Parameter
VOLTAGE | TSIS PUB | NTAWM MAXIMUM EFFICIENCY | Pib | ||||||
Ua haujlwm RANGE | NOMINAL V | HLUB r / min | Tam sim no A | HLUB r / min | Tam sim no A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | Tam sim no A |
| 8-26 | 12 | 5448 | 0.194 | 4709 | 1.237 | 19.375 | 9.555 | 142.901 | 7.885 |
Khoom Loj
Performance Curve
Cov lus qhia saum toj no tsuas yog siv rau kev siv xwb, hom thiab qhov tsis sib xws ntawm qhov tshwj xeeb me me 12V DC brushless lub cev muaj zog tuaj yeem hloov kho.
Khoom Feature
Lub brushless DC lub cev muaj zog torque zoo, loj pib torque, me me pib tam sim no, high efficiency (lub cev muaj zog nws tus kheej tsis muaj excitation poob thiab carbon txhuam poob), yooj yim kho thiab tu, zoo stability, tsis tshua muaj suab nrov, customized technical data, tawg- pov thawj.
Khoom Paub meej
| 100 feem pua qhov tseeb duab |
|

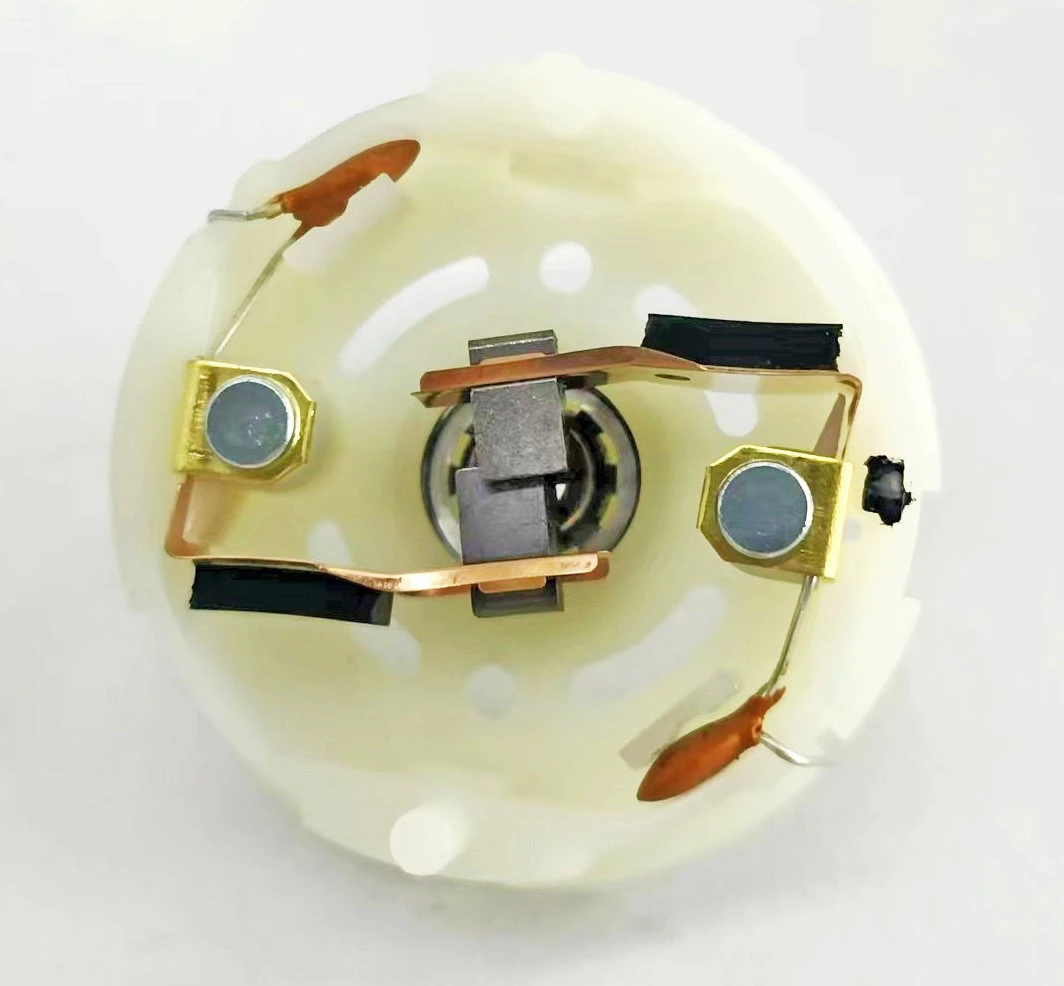

Rotor: ntshiab tooj liab hlau qhov txhab, hlau zoo core, kub tsis kam, txo lub zog noj, txo tam sim no kuj | Lub hau kawg: siv cov ntaub ntawv zoo zoo los ua kom lub neej kev pab cuam, txhim kho lub rotor ntawm lub cev muaj zog, thiab muaj cov nyhuv thermal dissipation. | |
| 100 feem pua qhov tseeb duab |
|
Bearings: xaiv hom bearings kom txo lub cev muaj zog suab nrov thiab xyuas kom zoo (cov kabmob tuaj yeem kho tau) | Chassis: Cov ntaub ntawv zoo nrog siab hardness, kub tsis kam, corrosion kuj, hnav tsis kam thiab xeb kuj raug xaiv, thiab kev pabcuam lub neej ntev dua. |
Peb Qhov Kev Pabcuam
1. Lub cev tsis muaj zog siv cov kabmob zoo li cov khoom siv raw, uas yog hnav-tiv taus thiab txhim kho lub neej kev pabcuam zoo. Cov khoom zoo nkauj thiab zoo.
2. Cov khoom siv hluav taws xob tau nruab nrog lub rooj tsav xwm tsav tsheb, nrog PWM ceev tswj kev ua haujlwm, kev tawm tswv yim tiag tiag ntawm kev ceev, thiab kev ua haujlwm braking, uas tuaj yeem paub qhov nres tam sim.
3. Cov kev ua haujlwm tsis tuaj yeem ua raws li qhov xav tau ntawm cov neeg siv khoom kom tau raws li qhov sib txawv ntawm cov neeg siv khoom.
4. Peb lub tuam txhab muaj kev pabcuam ua tiav, txawm tias nws yog kev muag khoom ua ntej, hauv-muag lossis tom qab muag, koj tsis tas yuav txhawj xeeb, peb cov neeg ua haujlwm tshaj lij yuav daws teeb meem rau koj, thiab lav qhov kev daws teeb meem zoo.
5. Qhov zoo yog qhov ruaj khov, tag nrho cov txheej txheem kev tswj tau zoo yog siv, tus nqi tsim nyog, kev tswj tus nqi sab hauv tau zoo, cov nuj nqis raug txo, kev xa khoom yooj yim, cov kab ntau lawm niaj hnub, thiab lub voj voog xa khoom luv luv.
Lub tuam txhab muaj zog
Daim ntawv pov thawj khoom
Ib txhia ntawm peb cov neeg koom tes
Daim ntawv thov
Thauj Ntim
Yog tias koj muaj kev xav tau tshwj xeeb, thov hu rau peb ua ntej.
Yuav Cov Lus Qhia
Kev Them Nyiaj & Xa
Chaw tsim tshuaj paus kindly advises:
1. Lub cev muaj zog DC tsis raug tso cai ua haujlwm hauv qhov kev sib txuas rov qab hauv qab qhov ntsuas hluav taws xob. Thaum qhov rov qab kev sib txuas ua haujlwm tau ua tiav, cov hlau nplaum ruaj khov yuav raug demagnetized. Yog tias tsim nyog rau kev khiav hauj lwm hauv txoj kev no, yuav tsum tau ntxiv ib qho kev txwv tam sim no kom txwv tsis pub dhau tam sim no.
2. Ua tib zoo saib xyuas kom tsis txhob demagnetization ntawm cov hlau nplaum tas mus li vim muaj ntau dhau tam sim no, qhov kub thiab txias hloov pauv thaum lub sijhawm disassembly thiab sib dhos, tshwj xeeb tshaj yog rau AlNiCo cov hlau nplaum ruaj khov, kev tiv thaiv hluav taws xob luv luv yog xav tau thaum lub sijhawm disassembly thiab sib dhos kom tsis txhob demagnetization.
3. Thaum lub load loj dhau lawm los yog lub hwj chim transistor yog burnt vim yog siv tsis tsim nyog, lub high-power transistor yuav siv los tiv thaiv tus neeg tsav tsheb los ntawm kev puas tsuaj vim yog tam sim no tshaj qhov specification.
4. Thaum lub load ntawm lub flow motor tsis yog me me, lub zog xa rov qab mus rau tus neeg tsav tsheb los ntawm cov cuab yeej kawg yuav ua rau tus neeg tsav tsheb nres thaum nws tsis tig, yog li nws yuav tsum tau koom tes nrog lub overvoltage tiv thaiv Circuit Court thiab regenerative zog dissipation circuit. mus nrog nws.
