kev kub ceev brushless dc lub cev muaj zog

kev kub ceev brushless dc lub cev muaj zog yog lub tshuab ua haujlwm siab ua haujlwm siab ceev plaub hau tshuab. Nyob rau tib lub sijhawm, peb tuaj yeem hloov kho nruab nrab-ceev BLDC motors. Qhov ntsuas hluav taws xob yog DC 12V, 24V, nrog lub neej ntev, kev ua haujlwm siab, siab torque, loj ntws, thiab ntau yam nta xws li kev ua haujlwm, kev siv tsawg, kev kub ceev, tsis tshua muaj suab nrov, thiab lwm yam, txais yuav cov qauv rotor sab hauv, feem ntau yog siv hauv huab cua. purifiers, kiv cua, lub tshuab nqus tsev vacuum, phom fascia, tshuab plaub hau, khoom siv hauv tsev thiab lwm qhov chaw, thiab tseem tuaj yeem hloov kho rau koj hauv koj lub teb, Xav tias dawb los sab laj peb txhua lub sijhawm.



Tuam txhab Highlights

Txheej txheem cej luam

Warranty	3 hli-1xyoo
Qhov Chaw Keeb Kwm	Shenzhen, Suav teb
Hom Lub Npe	Vshida
Qauv nab npawb	VBL-3540
Kev siv	Kiv cua, tsheb, khoom siv automation, kiv cua, aerospace, drones, ntse tsev, neeg hlau, hluav taws xob rooj, thiab lwm yam.
Hom	Brushless dc lub cev muaj zog
Qhov hnyav	TBD (qhov sib txawv qhov hnyav sib txawv)
Cheebtsam	Diversifed
Kev tsim kho	Permanent Magnet
Kev sib hloov	Tsis txhuam
Tiv thaiv Feature	Customized (Fireproof, watertight, tag nrho enclosed)
Kev ua tau zoo	85%
Voltage ntau	Tsawg dua los yog sib npaug rau 36 V
Khoom npe	Micro Brushless dc lub cev muaj zog
Rated Voltage	DC 12 V
Kev taw qhia ntawm kev sib hloov	CWJ CW
Cov nqe lus them nqi	30% ua ntej, 70% tshuav nyiaj li cas
Qhov ntev	40 * 35 hli
thuam	CE
Customized	Txais

Product Description

Yog tias tus neeg siv khoom muaj lwm yam kev xav tau, thov hu rau peb. Peb muab 24-teev online teb rau koj cov lus nug. Txhua qhov kev ntsuas tsis tuaj yeem hloov kho kom tau raws li qhov xav tau ntawm cov neeg siv khoom.

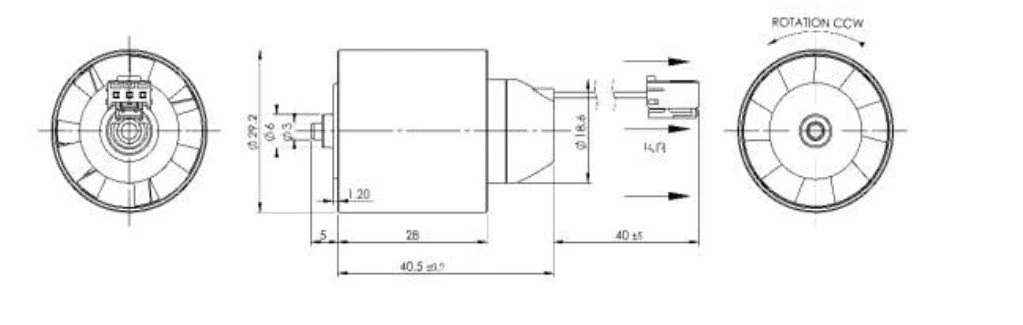

Product Outline

Motor Performance Curve

Khoom Paub meej

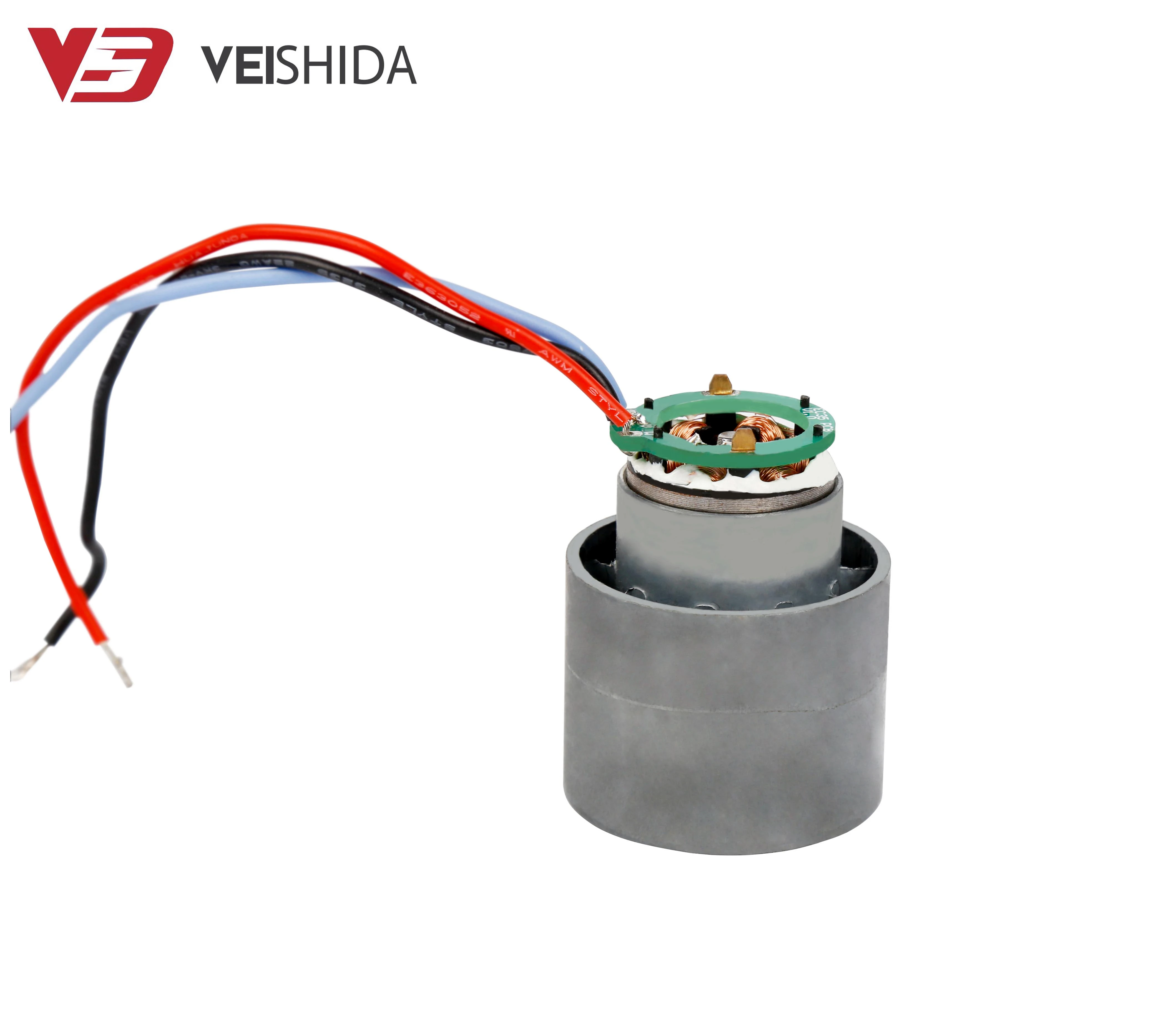

	100% qhov tseeb duab

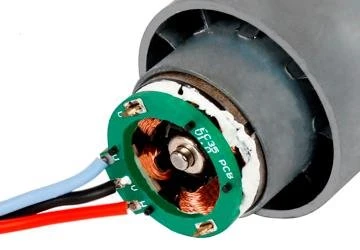

Rotor: muaj ib tug ntshiab tooj liab hlau coiled nyob ib ncig ntawm lub high-zoo hlau core nrog zoo heev kub kuj. Nws kuj siv lub zog tsawg dua thiab muaj qhov ua haujlwm qis dua tam sim no.		Cov kabmob: Yuav kom ua tau zoo thiab txo lub suab nrov, siv cov kabmob muaj npe (cov kabmob tuaj yeem kho tau)
	100% qhov tseeb duab
Kawg cap: Txhawm rau kom ntev lub neej, txhim kho lub cev muaj zog lub rotor, thiab txhim kho cov cua sov, siv cov khoom siv raw khoom zoo.		Chassis: Lub neej kev pab cuam yog nce los ntawm kev siv cov khoom zoo nrog cov hardness siab, kub tsis kam, corrosion kuj, hnav tsis kam, thiab xeb kuj.





Cov lus piav qhia ntxaws ntawm lub cev muaj zog



1. Brushless DC (BLDC) motors kov yeej qhov kev xav tau ntawm cov neeg kho tshuab commutators los ntawm kev hloov cov qauv ntawm lub cev muaj zog. Cov windings ua tus stator thiab cov hlau nplaum tas mus li ua ib feem ntawm lub rotor. Brushless DC motors yog dav siv vim hais tias hluav taws xob commutation hloov cov txhuam txhuam ntawm cov tsoos commutators rau lub hwj chim windings hauv DC lub cev muaj zog armature. Piv rau DC motors ib txwm muaj, kev sib hloov hluav taws xob muab kev ua haujlwm zoo dua, 20% mus rau 30% siab dua rau cov motors ua haujlwm ntawm tib qhov ceev thiab thauj khoom.



2. kev kub ceev brushless dc lub cev muaj zog yog ntau ruaj. Nws khaws nws cov kev ua haujlwm siab, thaum lub zog thiab lub zog ntawm qhov sib npaug ntawm lub cev muaj zog raug txo los ntawm kev hnav, ua rau cov txhuam tsis zoo, lub zog dissipation los ntawm arcing ntawm txhuam thiab commutator, thiab fouling uas cuam tshuam rau conductivity.



3. Muab kev ua haujlwm siab gearboxes, drives thiab encoders.



Lub tuam txhab muaj zog

Nrog peb 15 xyoos ntawm lub cev muaj zog R & D thiab kev tsim khoom thiab kev tswj hwm zoo, pab pawg R&D ywj pheej thiab tus txheej txheem tsim qauv, xaiv los koom tes nrog peb txhais tau tias xaiv qhov zoo-xav-tawm, cov chaw tsim khoom zoo los koom tes.



Daim ntawv pov thawj khoom



Ib txhia ntawm peb cov neeg koom tes



Daim ntawv thov

Raws li tus khub mus sij hawm ntev, peb zoo siab koom tes nrog koj hauv Suav teb. Peb tau nqis peev ntau lub sijhawm hauv BLDC lub cev muaj zog, npog feem ntau ntawm European thiab Asmeskas kev lag luam, tsuas yog muab cov neeg siv khoom txaus siab rau lub cev muaj zog thiab cov kev pabcuam zoo.

Thauj Ntim



Muaj peev xwm muab khoom: Ntau tshaj 200000 DC motors nrog ib hnub

Ua npuas ncauj hauv qhov ntev yog 350x265x280mm.

Qhov loj me ntawm lub thawv sab nrauv: 365 * 275 * 320mm.

350 pcs; 16,7kg ib



Kev Them Nyiaj & Xa

Qhov zoo ntawm kev kub ceev brushless dc lub cev muaj zog



1. Ceev ceev kom qhuav yog nws cov txiaj ntsig ncaj qha. Qhov no yog vim hais tias lub cev muaj zog ntawm lub tshuab ziab plaub hau ceev yog siab thiab cua muaj zog, qhov pib ntawm 100, 000+ rpm, thaum lub cev muaj zog ntawm lub tshuab ziab plaub hau yog feem ntau 16, 000 ~ 21, 000 rpm.



2. Lub tshuab ziab plaub hau ceev ceev muaj kev tswj xyuas qhov kub thiab txias uas cov tshuab ziab plaub hau tsis muaj, ua rau nws yooj yim dua thiab siv tau zoo dua. (Ceeb toom: Yog tias tsis muaj cua kub ceev, koj tuaj yeem qhuav koj cov plaub hau los ntawm qhov kub thiab txias, uas yooj yim heev rau koj cov plaub hau.

Tsis tas li ntawd, yog tias lub tshuab ziab plaub hau nyob ze rau ntawm tawv taub hau, qhov kub thiab txias tuaj yeem yooj yim hlawv ntawm tawv taub hau. Ceev faj thaum siv cov khoom. )

Yog tias koj muaj lwm yam kev xav tau, thov hu rau peb, sib txuam encoders, drives, thiab gearboxes kuj muaj rau cov neeg siv khoom, thiab peb yuav teb rau koj cov lus nug hauv online 24 teev hauv ib hnub.
