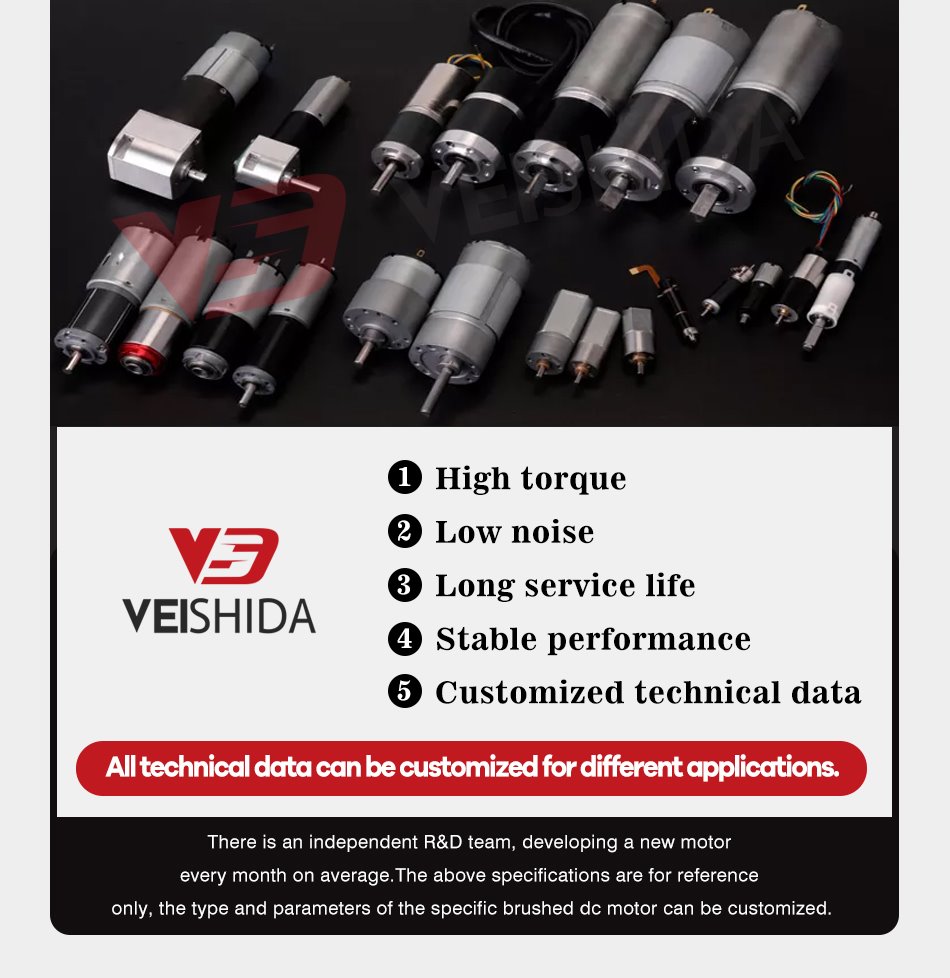

12V DC Planetary Iav Tsav

12V DC planetary iav lub cev muaj zog Rated torque: 15 kg-cm, ntsuas ceev: 96 RPM, lub cev loj txoj kab uas hla: 57 hli, ncej txoj kab uas hla: 8 hli, ntsuas tam sim no: 2.5 A, ntsuas tso zis zog: 49.5W, kis piv: 1: 71, iav kem txoj kab uas hla: 36 hli. Nws tuaj yeem tsim 100 RPM nrog tus nqi torque ntawm txog 15Kgf.cm. Planetary iav DC motors muaj lub siab tshaj plaws nruam thiab ncov torque muaj peev xwm ntawm txhua hom gearbox. Nws kuj muaj cov qauv compact thiab lub teeb yuag ntawm cov khoom zoo sib xws. Txhawb kev tsim kho, OEM / ODM kev pabcuam, thiab lwm yam.

Tuam txhab Highlights

Txheej txheem cej luam

Warranty	3 lub hlis - 1 xyoo
Qhov Chaw Keeb Kwm	Shenzhen, Suav teb
Hom Lub Npe	Vshida
Qauv nab npawb	VSD-G36P395
Kev siv	Qhov rooj qhib, lub rooj zaum muaj log, lub tsheb fais fab, lub twj tso kua mis dej, tshuab polishing, of elevator, ntsev dispenser, khoom siv kho mob, neeg hlau, thiab lwm yam
Hom	Lub cev muaj zog
Qhov hnyav	TBD (qhov sib txawv qhov hnyav sib txawv)
Cheebtsam	Diversifed
Kev tsim kho	Permanent Magnet
Kev sib hloov	Txhuam txhuam / txhuam
Tiv thaiv Feature	Customized (Waterproof, Fireproof, Tag Nrho Kaw)
Kev ua tau zoo	82 feem pua
Rated Torque	15 Kgf cm
Cov kabmob	D-shaft
Tsis-load ceev	96 ± 10 feem pua ​​(rpm)
Rated Voltage	12 (V)
Tsis muaj load tam sim no	Tsawg dua lossis sib npaug li 600 mA
Rated ceev	80 ± 10 feem pua ​​(rpm)
Rated tam sim no	Tsawg dua lossis sib npaug li 2.5 A
Stall Tam sim no	Tsawg dua lossis sib npaug li 10 A
Stall Torque	Ntau dua lossis sib npaug li 80Kgf.cm
Cov nqe lus them nqi	30% TT raws li tso nyiaj, 70% TT tshuav nyiaj li cas ua ntej xa khoom
Daim ntawv pov thawj	TIAB SA 16949
Customized	Txais

Product Description

Peb muaj ib pab neeg tshawb fawb thiab kev loj hlob ntawm ntau tshaj 30 tus neeg thiab tshaj 40 cov kab ntau lawm kom tau raws li cov neeg siv khoom customization thiab kev txiav txim loj.

Lub cev muaj zog Parameter

VOLTAGE	TSIS PUB		NTAWM MAXIMUM EFFICIENCY				Pib
NOMINAL V	HLUB r / min	Tam sim no A	HLUB r / min	Tam sim no A	TORQUE	Kev txo qis	TORQUE mN.m	Tam sim no A
12	96	0.6	80	2.5	15 Kgf cm	1:71	80 Kgf cm	10

Lub cev muaj zog

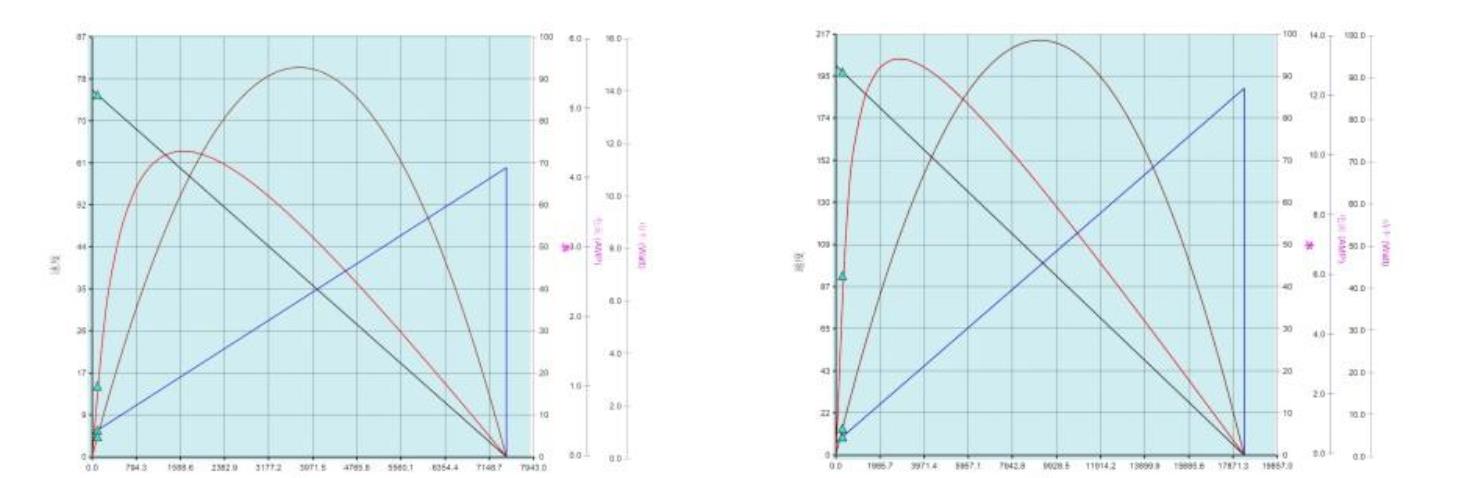

Performance Curve

Cov ntaub ntawv parameter saum toj no tsuas yog siv rau kev siv xwb; Cov tsis tuaj yeem hloov kho thiab tsim raws li qhov yuav tsum tau ua, thiab cov khoom sib txuas, cov khoom tso tawm, cov qhov txuas, cov xov hlau, thiab qhov nrawm tuaj yeem hloov kho. Yog tias koj xav tau kom phim tus tsav tsheb, encoder, lossis gearbox, thov hu rau peb.

Khoom Paub meej

	100 feem pua qhov tseeb duab

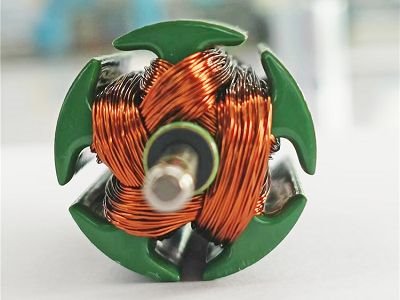

Ntshiab tooj liab hlau winding, high-zoo hlau tub ntxhais, tsis tshua muaj resistivity, zoo conductivity, siab zog, tsawg zog noj, tsawg tshav kub tiam, thiab siab tso zis efficiency		Ua los ntawm cov khoom zoo aluminium, nws yog tus yam ntxwv los ntawm corrosion kuj, xeb kuj, thiab txhim khu kev qha kev ua tau zoo. Lub hauv paus ncej yog ua tiav los ntawm CNC, uas ua rau kom muaj kev sib txhuam, ua rau kev sib kis tau ruaj khov, thiab ua rau kev sib txuas thiab kho kom yooj yim dua.

Product Description

1. Lub 36mm ceev txo lub cev muaj zog muab lub zog ntawm 3.0Nm, uas yog ntau txhim khu kev qha. Nws tuaj yeem nruab nrog tus encoder, 11ppr, thiab muaj kev hnav zoo, kub tsis kam, thiab kev co kuj.

2. Nrog 12V DC txo lub cev muaj zog thiab planetary iav kem, haum rau me me txoj kab uas hla, tsis tshua muaj suab nrov, thiab siab torque daim ntaub ntawv

3.12V DC planetary iav lub cev muaj zog yog ua los ntawm cov hlau ruaj khov thiab ruaj khov, uas tuaj yeem tiv thaiv lub cev lub cev ntawm lub gearbox los ntawm kev puas tsuaj.

4. Iav tshuab tuaj yeem ua kom muaj kev ruaj ntseg hauv kev ua haujlwm siab, siab precision thiab zoo kev ntseeg siab tom qab machining.

5. Ua tiav qhov kev txo qis yog muaj nyob rau ntawm 4,14,19,27,51,71100139189264369516720, thiab lwm yam, uas tuaj yeem hloov kho thiab tsim raws li kev xav tau.

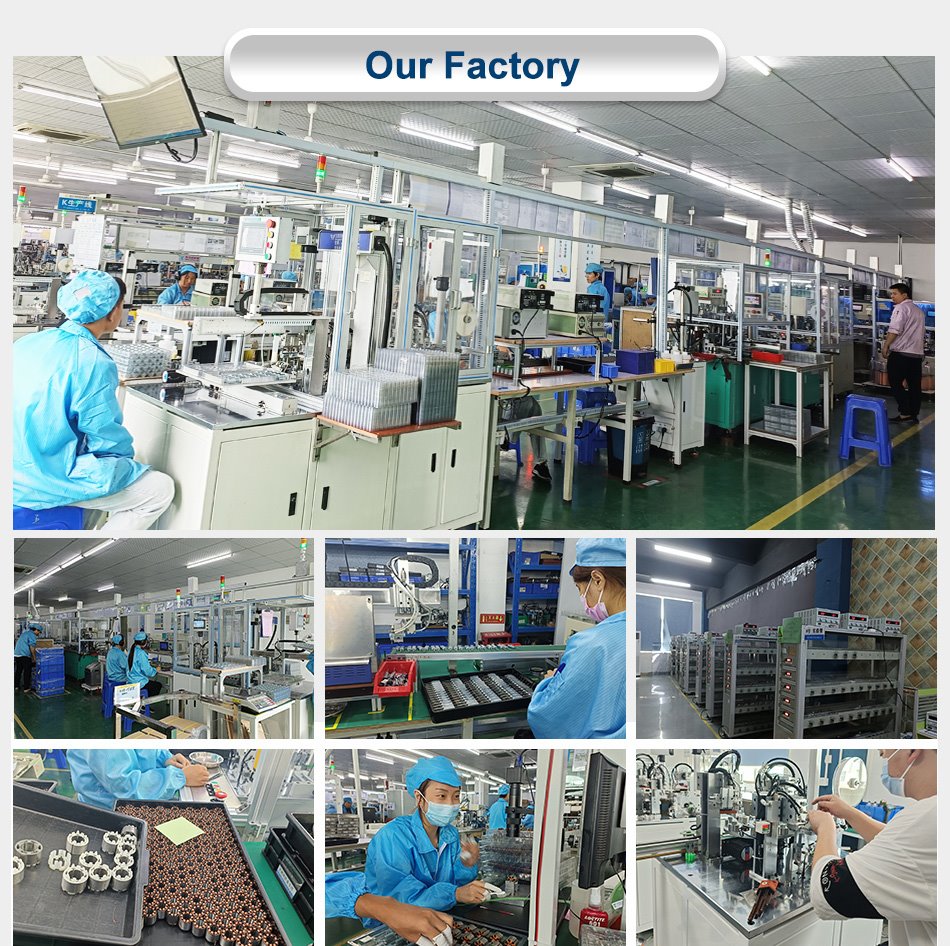

Lub tuam txhab muaj zog

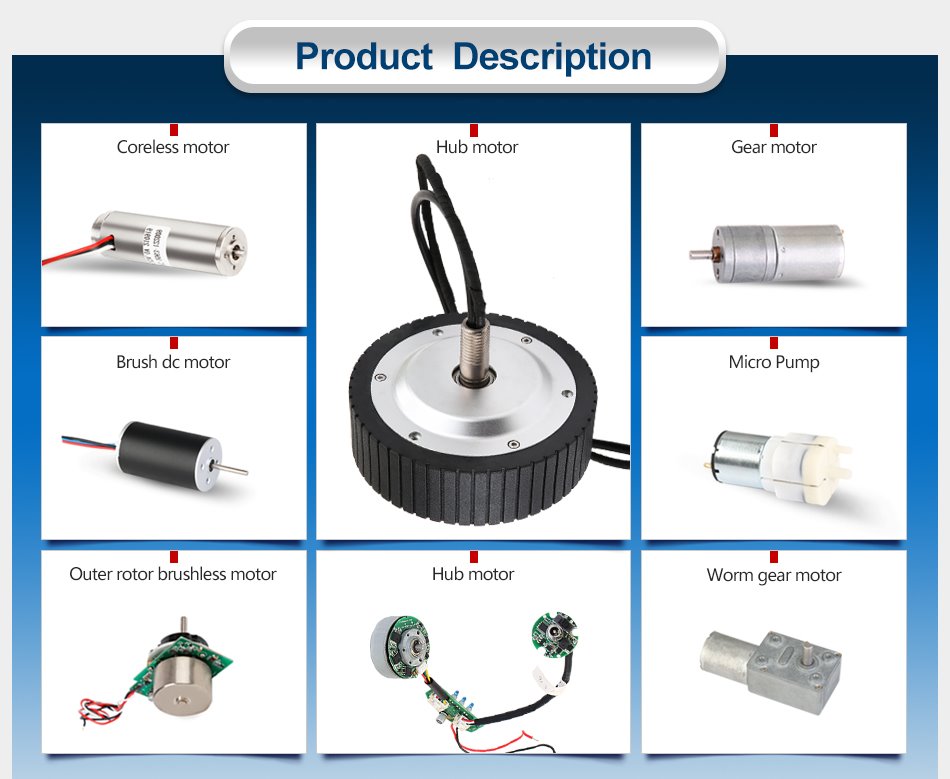

Vshida Micro Motor Company muaj ntau tshaj 500 tus neeg ua haujlwm thiab ntau tshaj 40 cov kab ntau lawm, tsim 200000 lub cev muaj zog ib hnub. Cov khoom lag luam suav nrog txhuam lub cev muaj zog, tsis txhuam lub cev muaj zog, lub cev muaj zog txo qis, coreless motors, twj tso kua mis, thiab lwm yam kev lag luam ntawm cov khoom siv. Peb tau cog lus los muab cov neeg siv khoom zoo, kev ua haujlwm siab, thiab cov khoom siv txhim khu kev qha thiab kev txhawb nqa kev tshaj lij, yeej qhov kev ntseeg siab thiab kev txhawb nqa ntawm peb cov neeg siv khoom. Peb kuj muaj ib pab neeg ua lag luam muaj zog uas muaj nuj nqis rau kev siv tshuab, kev ua tau zoo, thiab cov neeg siv khoom xav tau kom tau raws li cov neeg siv khoom xav tau.

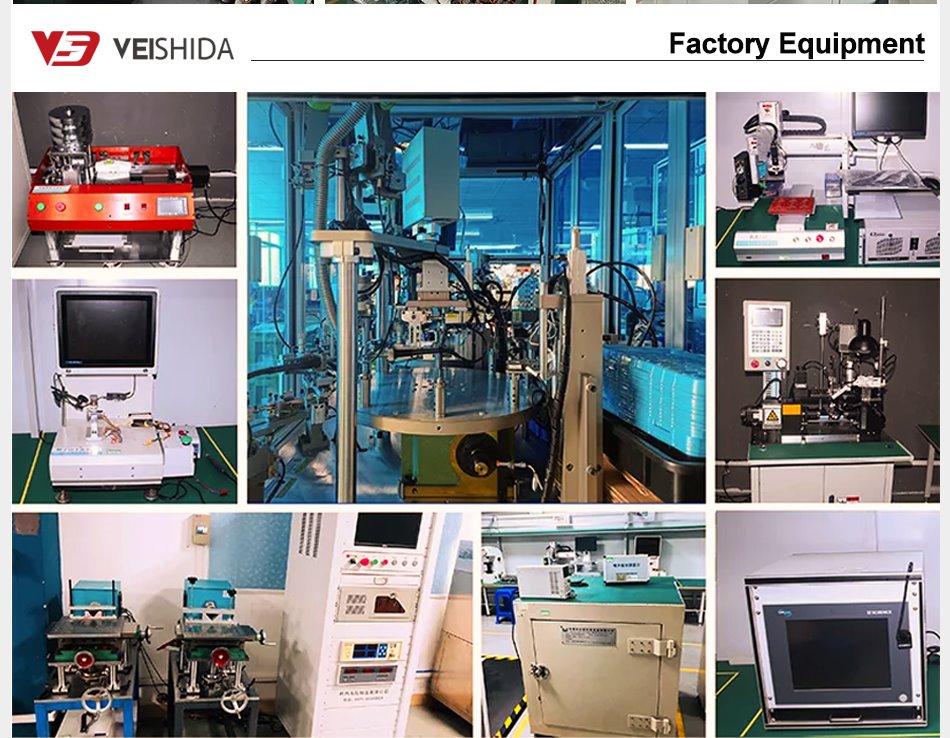

Siv cov cuab yeej siv tau zoo heev (tsis siv neeg winding, tsis siv neeg stator, kawg npog tsis siv neeg stator, tsis siv neeg vuam tshuab) kom tau raws li cov neeg siv khoom zoo; Txhua lub cev muaj zog tau dhau los ua cov kev sim ua haujlwm ua ntej tawm hauv lub hoobkas, suav nrog kev kuaj lub suab nrov, lub zog, kev co, kev sib tsoo, thiab kev sim poob.

Daim ntawv pov thawj khoom

Nrog rau kev siv zog tas mus li ntawm peb Vshida micromotor, peb tau txais IATF16949 thiab lwm yam ntawv pov thawj thiab ntau daim ntawv pov thawj kev tswj hwm kom tau raws li cov neeg siv khoom sib txawv rau daim ntawv pov thawj.

Ib txhia ntawm peb cov neeg koom tes

Peb tau dhau los ua tus xa khoom ntawm lub cev muaj zog rau ntau lub ntiaj teb nto moo hom. Kev xaiv koom tes nrog peb yog xaiv los koom tes nrog cov lag luam zoo. Peb zoo siab muaj lub sijhawm los ua koj tus khub hauv Suav teb.

Vim li cas thiaj xaiv peb?

Daim ntawv thov

Siv dav hauv kev kho mob, kev zoo nkauj, kev noj qab haus huv ntawm niam thiab menyuam, lub tsev ntse, tsheb tsis muaj neeg tsav tsheb, tsheb, chaw ua haujlwm, qauv dav hlau, qauv khoom ua si, cov cuab yeej hluav taws xob, neeg hlau, thiab lwm yam. Peb muaj 15 xyoo ntawm kev tsim thiab kev loj hlob ntawm micro motors, muab cov neeg muas zaub nrog saj zawg zog thiab kev pab customized. Yog tias koj muaj kev xav tau tshwj xeeb, thov hu rau peb.

Thauj Ntim

Peb txheej ntim kom ntseeg tau tias ua raws li cov qauv xa tawm. Yog tias koj muaj lwm yam kev ntim khoom, thov hu rau peb.

Kev Them Nyiaj & Xa

Yuav ua li cas kom paub Deceleration ntawm 12V DC Planetary Iav Tsav

Lub luag haujlwm tseem ceeb ntawm lub ntiaj teb ceev txo lub cev muaj zog yog txo qhov kev sib hloov ceev, ua kom cov zis torque, thiab txo qhov inertia ntawm lub load.

Thawj yog los hloov cov kev taw qhia ntawm lub hwj chim kis tau tus mob, thiab qhov thib ob yog muab ib qho kev sib kis piv rau txhua lub iav raws li qhov txuas ntxiv ntawm kev sib kis. Lub ntsiab reducer yog lub tshuab ua haujlwm nyob rau hauv lub qag tsav uas tuaj yeem hloov torque thiab kev sib hloov ceev. Lub luag haujlwm tseem ceeb yog txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau kis tus

Txhua theem ntawm cov iav kis tau tus mob yog siv los ua kom tiav lub hom phiaj ntawm kev txo qis kom ua tau raws li qhov xav tau ntawm kev ua haujlwm. Lub reducer muaj cov iav khub ntawm txhua qib. Piv txwv li, yog siv cov iav uas muaj cov hniav tsawg dua los tsav lub iav loj, kev siv tshuab deceleration tuaj yeem ua tiav. Yog tias muaj ntau theem kev sib kis tau txais kev pom zoo, kev siv tshuab deceleration thiab torque tuaj yeem txhim kho tau zoo.
